Aircraft Technical Manual
JTM001-5
6.65.4 Inspection and Repair
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Inspect elevator for any signs of delamination or cracking. Pay particular attention to the Control
Horn and hinges and their surrounding areas.

Inspect the front underside of the elevator for any signs of rubbing against the horizontal stabiliser at
full down deflection: when the elevator hinge is pressed down using thumb pressure there should be
clearance between the elevator and the stabiliser. Also refer to Section 5.18.

Repairs must be referred to Jabiru Aircraft Pty Ltd or our approved local agent.
6.65.5 Installation

Reverse the preceding steps for installation.
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.

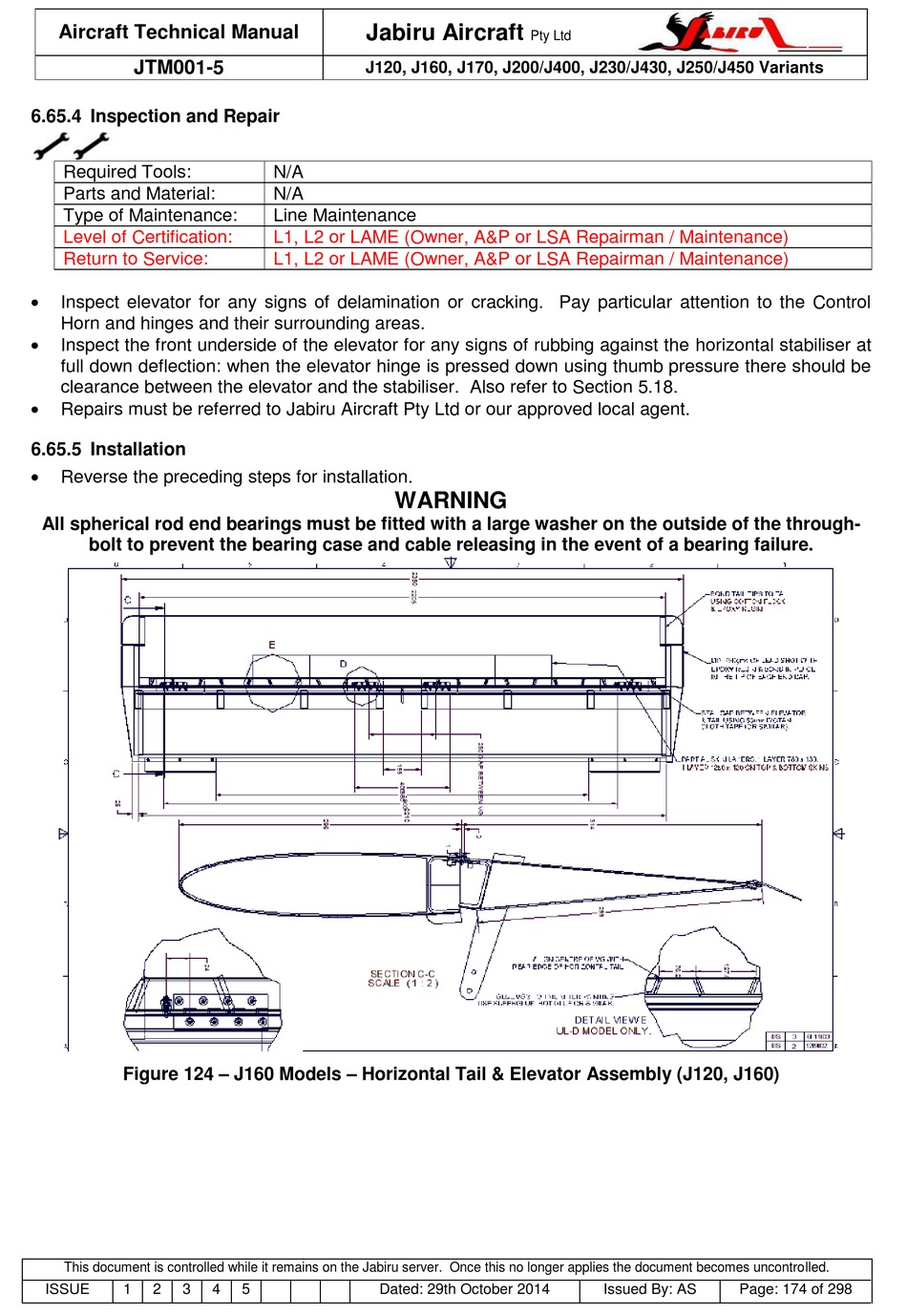

Figure 124 – J160 Models – Horizontal Tail & Elevator Assembly (J120, J160)

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
N/A
N/A
Line Maintenance
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
4 5 Dated: 29th October 2014
Pty Ltd
WARNING
Issued By: AS Page: 174 of 298
