Cabin Heater System - Jabiru j160 Technical Manual

Aircraft Technical Manual
JTM001-5

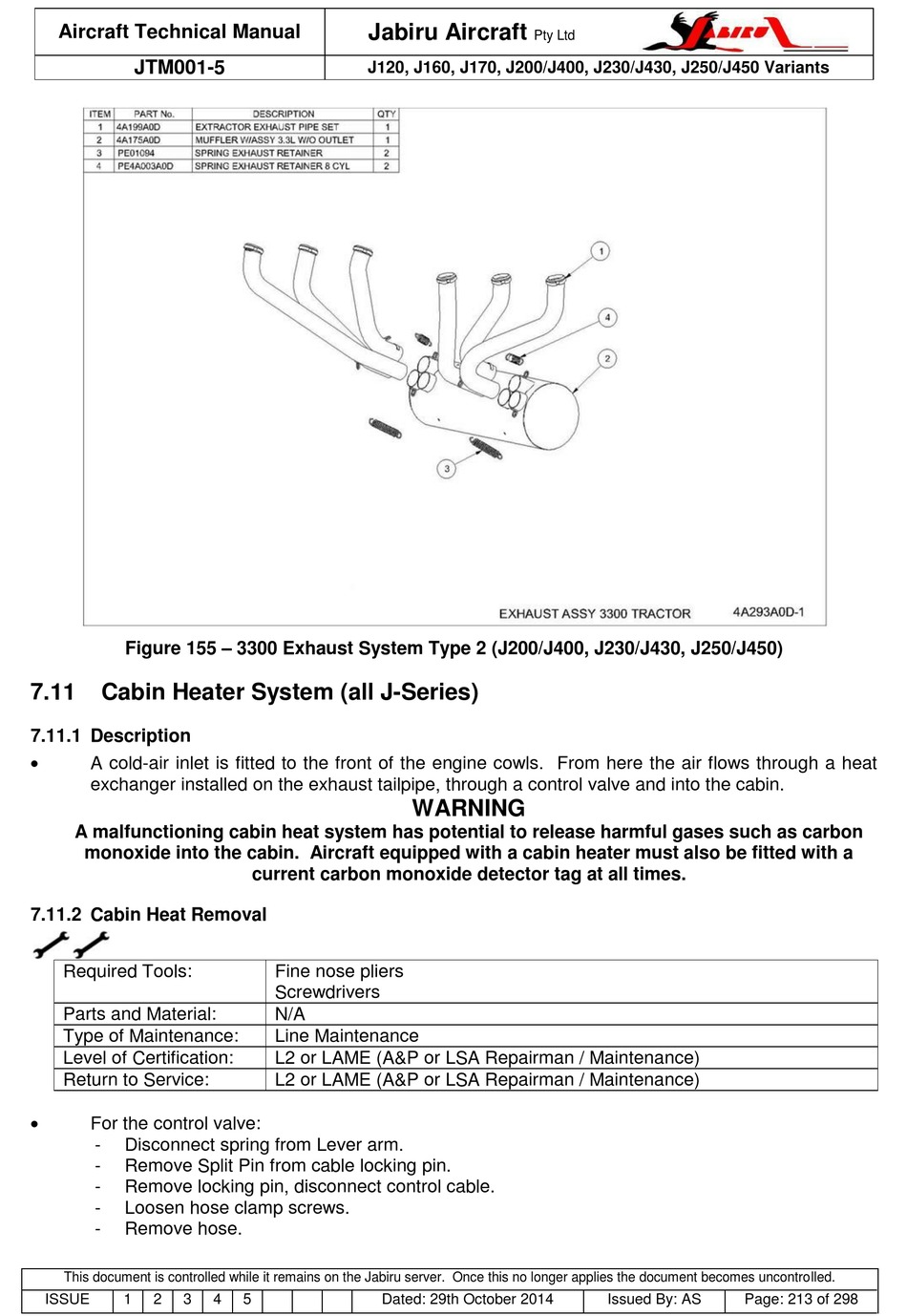

Figure 155 – 3300 Exhaust System Type 2 (J200/J400, J230/J430, J250/J450)
7.11 Cabin Heater System (all J-Series)
7.11.1 Description

A cold-air inlet is fitted to the front of the engine cowls. From here the air flows through a heat
exchanger installed on the exhaust tailpipe, through a control valve and into the cabin.
A malfunctioning cabin heat system has potential to release harmful gases such as carbon
monoxide into the cabin. Aircraft equipped with a cabin heater must also be fitted with a
7.11.2 Cabin Heat Removal
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

For the control valve:
- Disconnect spring from Lever arm.
- Remove Split Pin from cable locking pin.
- Remove locking pin, disconnect control cable.
- Loosen hose clamp screws.
- Remove hose.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
current carbon monoxide detector tag at all times.
Fine nose pliers
Screwdrivers
N/A
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
4 5 Dated: 29th October 2014
Pty Ltd
WARNING
Issued By: AS Page: 213 of 298
