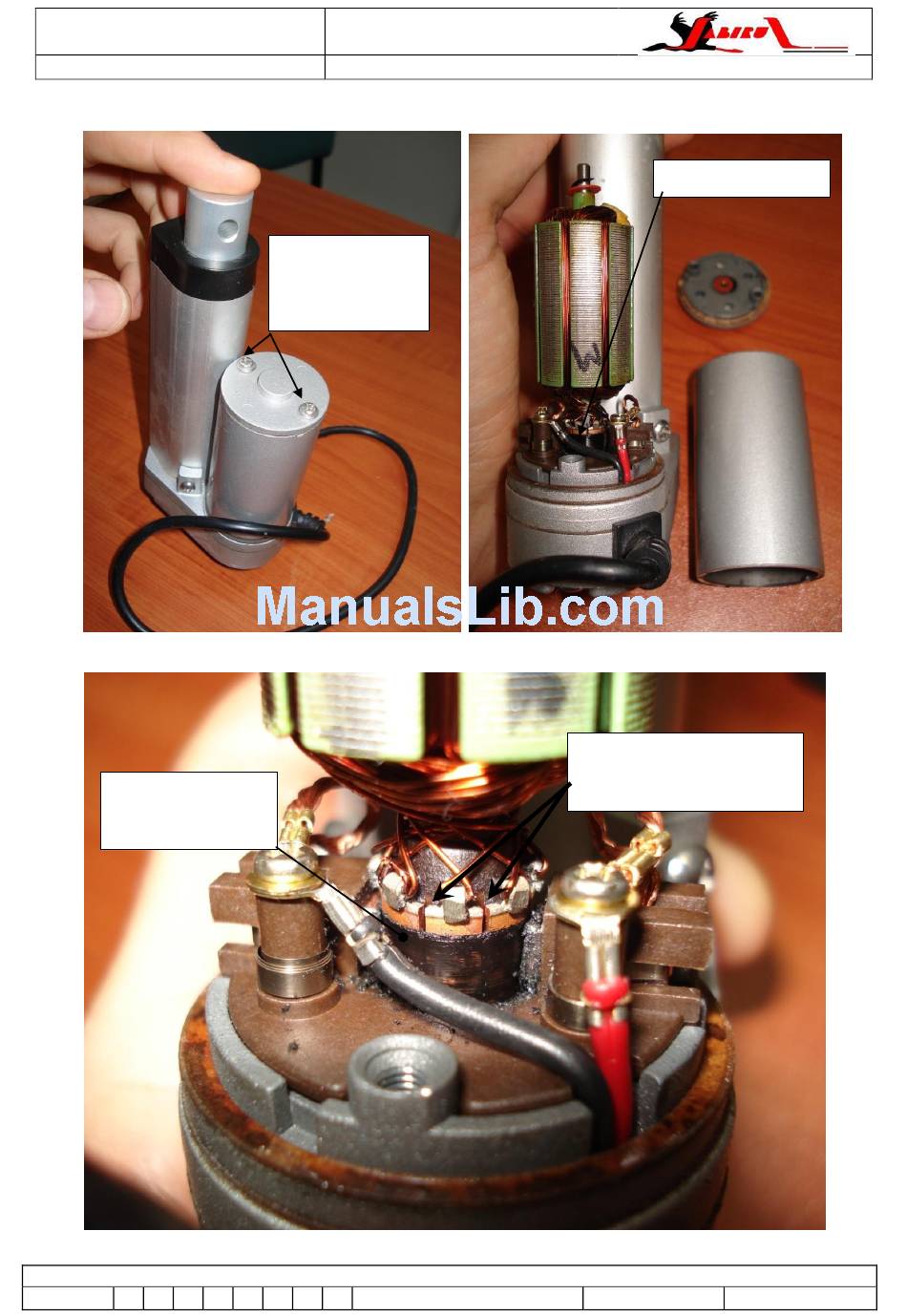

Figure 105 – Linear Actuator Disassembled (all J-Series)
Commutator Ring.
Black material
must be removed.
