Aircraft Technical Manual
JTM001-5

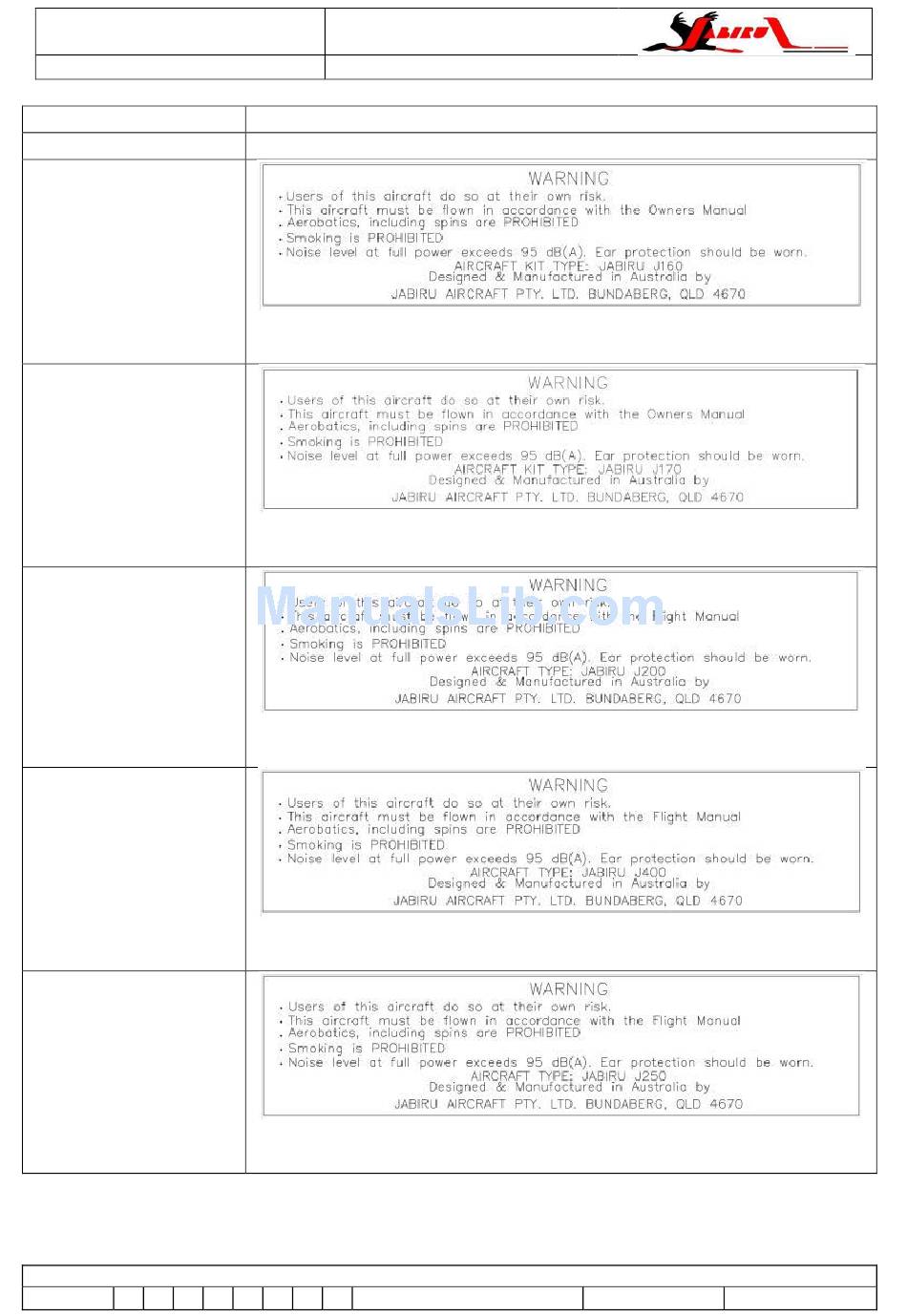

Decal Detail
Warning Placard
J160
P/No. 5A011A0D
Warning Placard
J170
P/No. 5A015A0D
Warning Placard
J200
P/No. 5073624
Warning Placard
J400
P/No. 5073794
Warning Placard
J250
P/No. 5073824

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Fit adjacent to main warning placard (LSA models, see above)
Fitted above windscreen in front of wing carry through beam across to the
Fitted above windscreen in front of wing carry through beam across to the
Fitted above windscreen in front of wing carry through beam across to the
Fitted above windscreen in front of wing carry through beam across to the
Fitted above windscreen in front of wing carry through beam across to the
4 5 Dated: 29th October 2014
Pty Ltd
Preview
left side.
left side.
left side.
left side.
left side.
Issued By: AS Page: 276 of 298
