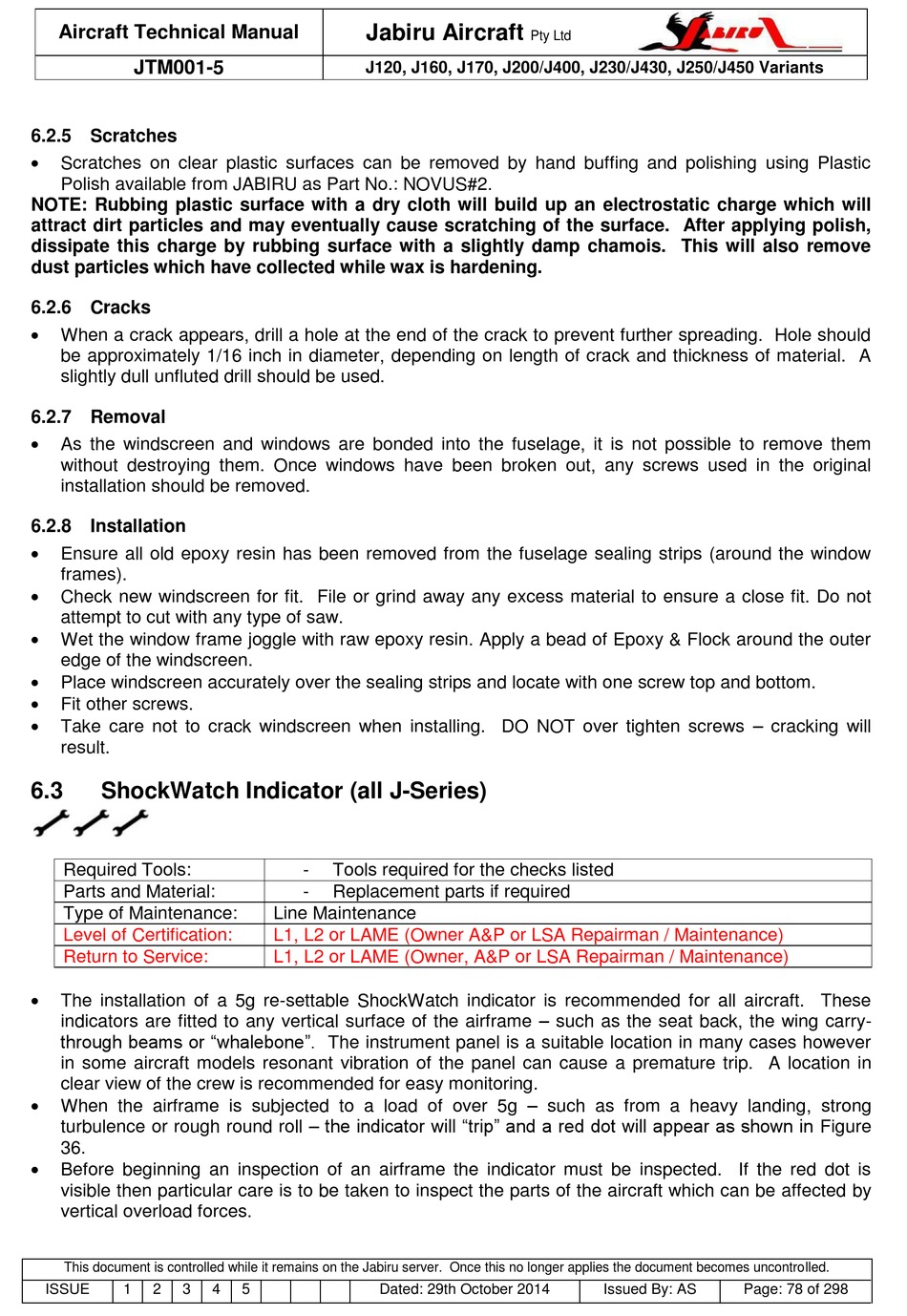

6.2.5 Scratches

Scratches on clear plastic surfaces can be removed by hand buffing and polishing using Plastic
Polish available from JABIRU as Part No.: NOVUS#2.
NOTE: Rubbing plastic surface with a dry cloth will build up an electrostatic charge which will
attract dirt particles and may eventually cause scratching of the surface. After applying polish,
dissipate this charge by rubbing surface with a slightly damp chamois. This will also remove
dust particles which have collected while wax is hardening.
6.2.6 Cracks

When a crack appears, drill a hole at the end of the crack to prevent further spreading. Hole should
be approximately 1/16 inch in diameter, depending on length of crack and thickness of material. A
slightly dull unfluted drill should be used.
6.2.7 Removal

As the windscreen and windows are bonded into the fuselage, it is not possible to remove them
without destroying them. Once windows have been broken out, any screws used in the original
installation should be removed.
6.2.8 Installation

Ensure all old epoxy resin has been removed from the fuselage sealing strips (around the window
frames).

Check new windscreen for fit. File or grind away any excess material to ensure a close fit. Do not
attempt to cut with any type of saw.

Wet the window frame joggle with raw epoxy resin. Apply a bead of Epoxy & Flock around the outer
edge of the windscreen.

Place windscreen accurately over the sealing strips and locate with one screw top and bottom.

Fit other screws.

Take care not to crack windscreen when installing. DO NOT over tighten screws – cracking will
result.
6.3 ShockWatch Indicator (all J-Series)
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

The installation of a 5g re-settable ShockWatch indicator is recommended for all aircraft. These
indicators are fitted to any vertical surface of the airframe – such as the seat back, the wing carry-
through beams or "whalebone". The instrument panel is a suitable location in many cases however
in some aircraft models resonant vibration of the panel can cause a premature trip. A location in
clear view of the crew is recommended for easy monitoring.

When the airframe is subjected to a load of over 5g – such as from a heavy landing, strong
turbulence or rough round roll – the indicator will "trip" and a red dot will appear as shown in Figure
36.

Before beginning an inspection of an airframe the indicator must be inspected. If the red dot is
visible then particular care is to be taken to inspect the parts of the aircraft which can be affected by
vertical overload forces.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
- Tools required for the checks listed
- Replacement parts if required
Line Maintenance
L1, L2 or LAME (Owner A&P or LSA Repairman / Maintenance)
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
4 5 Dated: 29th October 2014
Pty Ltd
Issued By: AS Page: 78 of 298
