Aircraft Technical Manual
JTM001-5
6.59 Flap Position Indicator (all J-Series)
6.59.1 Description

2 different flap position indicators have been used in Jabiru Aircraft (plus the manual handle which
also acts as the position indicator for manual flap variants).

Both indicators consist of a cable-driven indicator which moves inside a housing. Indicators are
mounted to the windscreen / door pillars.
6.59.2 Flap Position Indicator Removal
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:
Undo screws holding indicator to "A" pillar.
1.
2. For Type 1 indicators: drill rivets and disassemble indicator.
3. Loosen bolt on flap drive motor shaft & remove cable.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

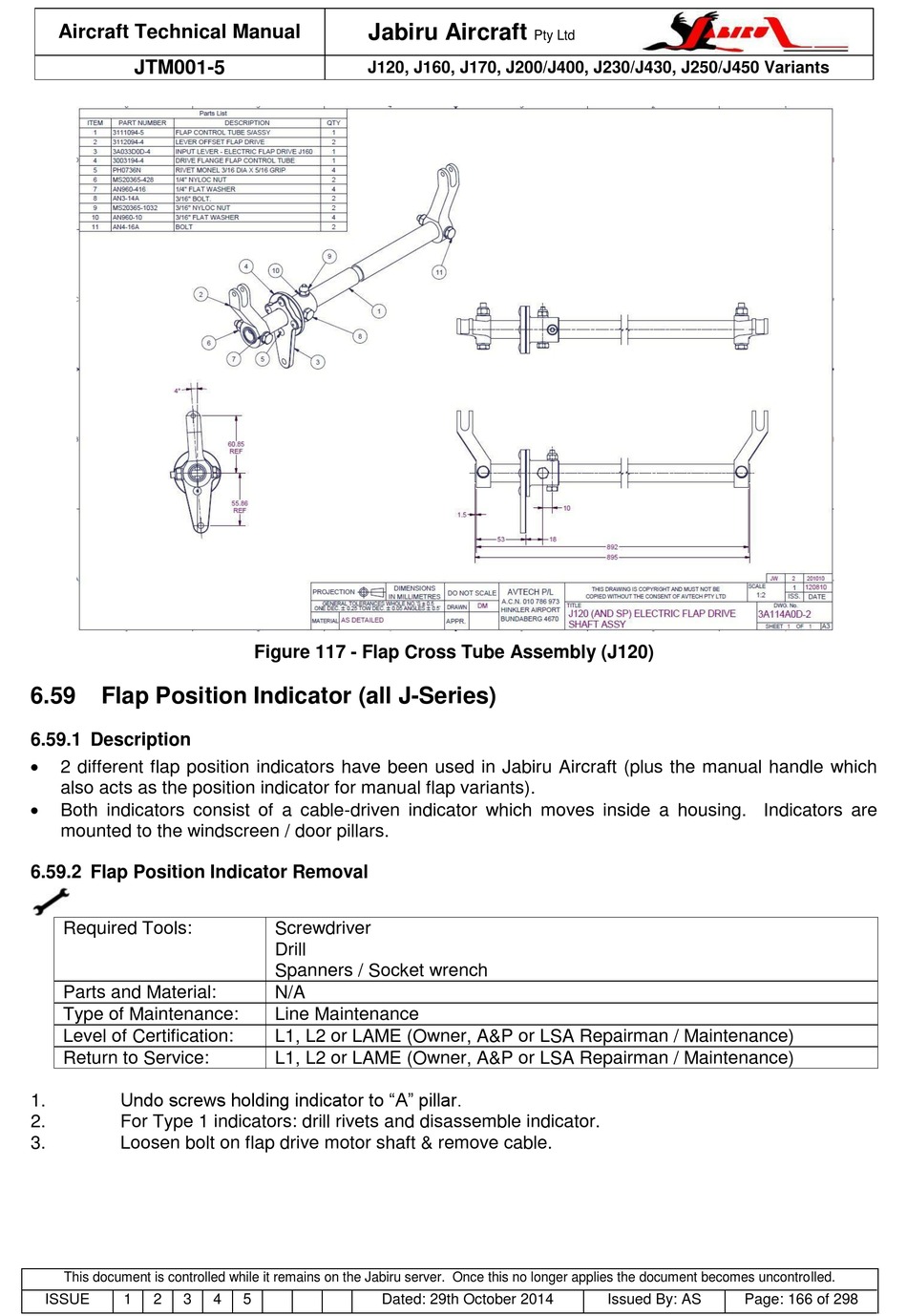

Figure 117 - Flap Cross Tube Assembly (J120)
Screwdriver
Drill
Spanners / Socket wrench
N/A
Line Maintenance
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
4 5 Dated: 29th October 2014
Pty Ltd
Issued By: AS Page: 166 of 298
