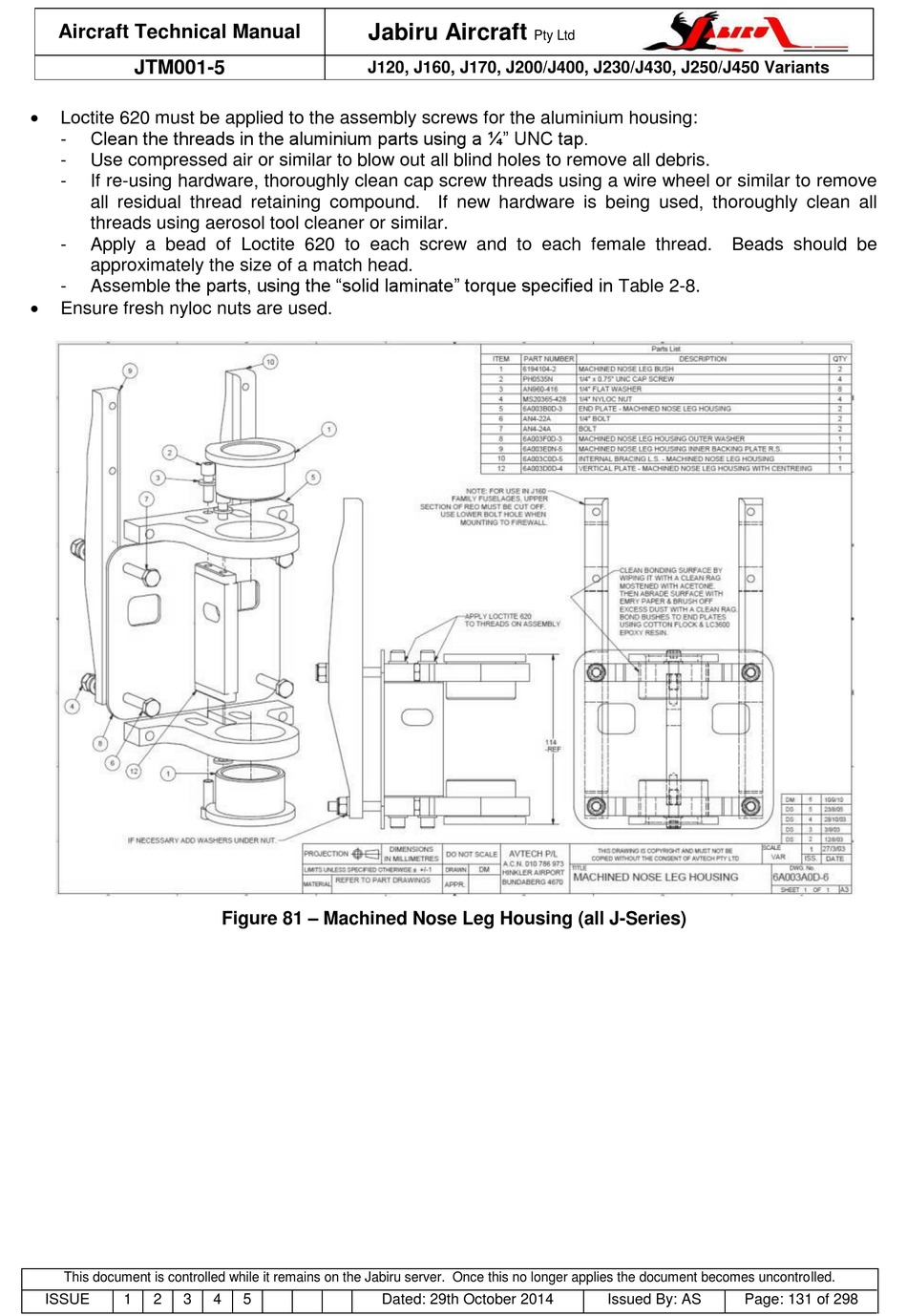

Figure 81 – Machined Nose Leg Housing - Jabiru j160 Technical Manual

Aircraft Technical Manual
JTM001-5

Loctite 620 must be applied to the assembly screws for the aluminium housing:
Clean the threads in the aluminium parts using a ¼" UNC tap.
-
- Use compressed air or similar to blow out all blind holes to remove all debris.
- If re-using hardware, thoroughly clean cap screw threads using a wire wheel or similar to remove
all residual thread retaining compound. If new hardware is being used, thoroughly clean all
threads using aerosol tool cleaner or similar.
- Apply a bead of Loctite 620 to each screw and to each female thread.
approximately the size of a match head.
Assemble the parts, using the "solid laminate" torque specified in Table 2-8.
-

Ensure fresh nyloc nuts are used.
