Aircraft Technical Manual
JTM001-5

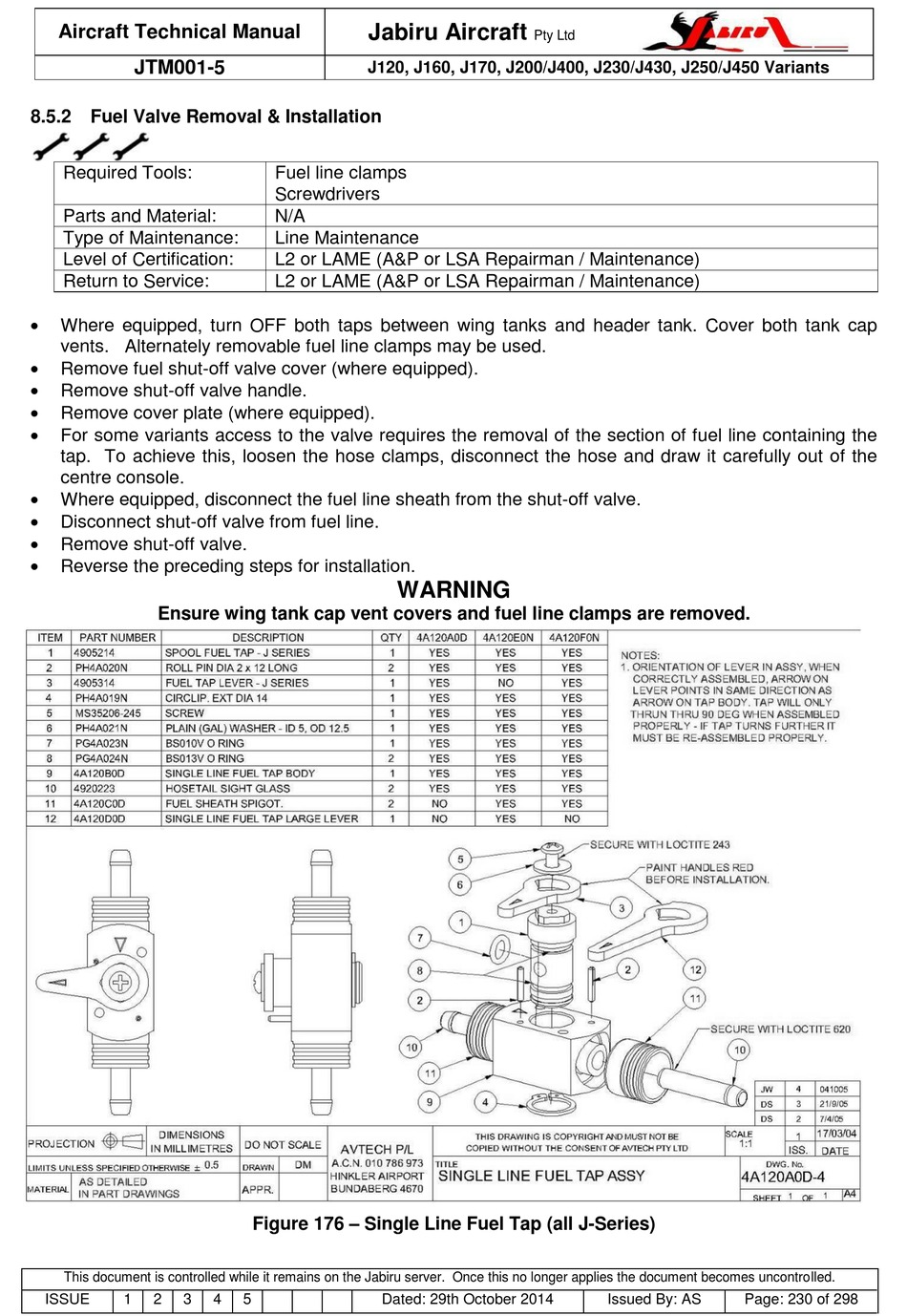

8.5.2 Fuel Valve Removal & Installation
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

Where equipped, turn OFF both taps between wing tanks and header tank. Cover both tank cap
vents. Alternately removable fuel line clamps may be used.

Remove fuel shut-off valve cover (where equipped).

Remove shut-off valve handle.

Remove cover plate (where equipped).

For some variants access to the valve requires the removal of the section of fuel line containing the
tap. To achieve this, loosen the hose clamps, disconnect the hose and draw it carefully out of the
centre console.

Where equipped, disconnect the fuel line sheath from the shut-off valve.

Disconnect shut-off valve from fuel line.

Remove shut-off valve.

Reverse the preceding steps for installation.
Ensure wing tank cap vent covers and fuel line clamps are removed.

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Fuel line clamps
Screwdrivers
N/A
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
Figure 176 – Single Line Fuel Tap (all J-Series)
4 5 Dated: 29th October 2014
Pty Ltd
WARNING
Issued By: AS Page: 230 of 298
