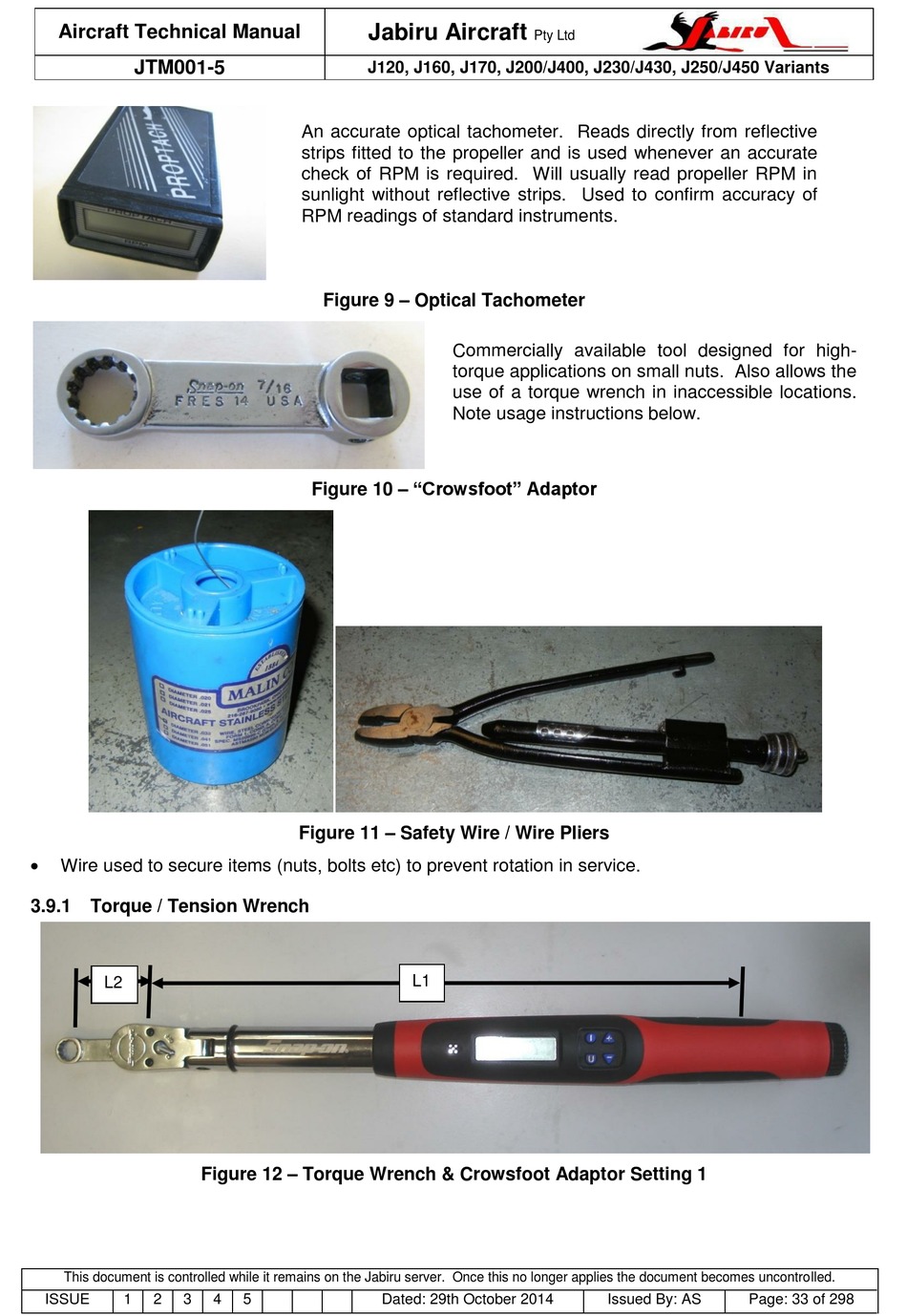

Figure 9 – Optical Tachometer - Jabiru j160 Technical Manual

Aircraft Technical Manual
JTM001-5

Wire used to secure items (nuts, bolts etc) to prevent rotation in service.
3.9.1 Torque / Tension Wrench
L2
Figure 12 – Torque Wrench & Crowsfoot Adaptor Setting 1
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
An accurate optical tachometer. Reads directly from reflective
strips fitted to the propeller and is used whenever an accurate
check of RPM is required. Will usually read propeller RPM in
sunlight without reflective strips. Used to confirm accuracy of
RPM readings of standard instruments.
Figure 9 – Optical Tachometer
Figure 10 – "Crowsfoot" Adaptor
Figure 11 – Safety Wire / Wire Pliers
4 5 Dated: 29th October 2014
Pty Ltd
Commercially available tool designed for high-
torque applications on small nuts. Also allows the
use of a torque wrench in inaccessible locations.
Note usage instructions below.
L1
Issued By: AS Page: 33 of 298
