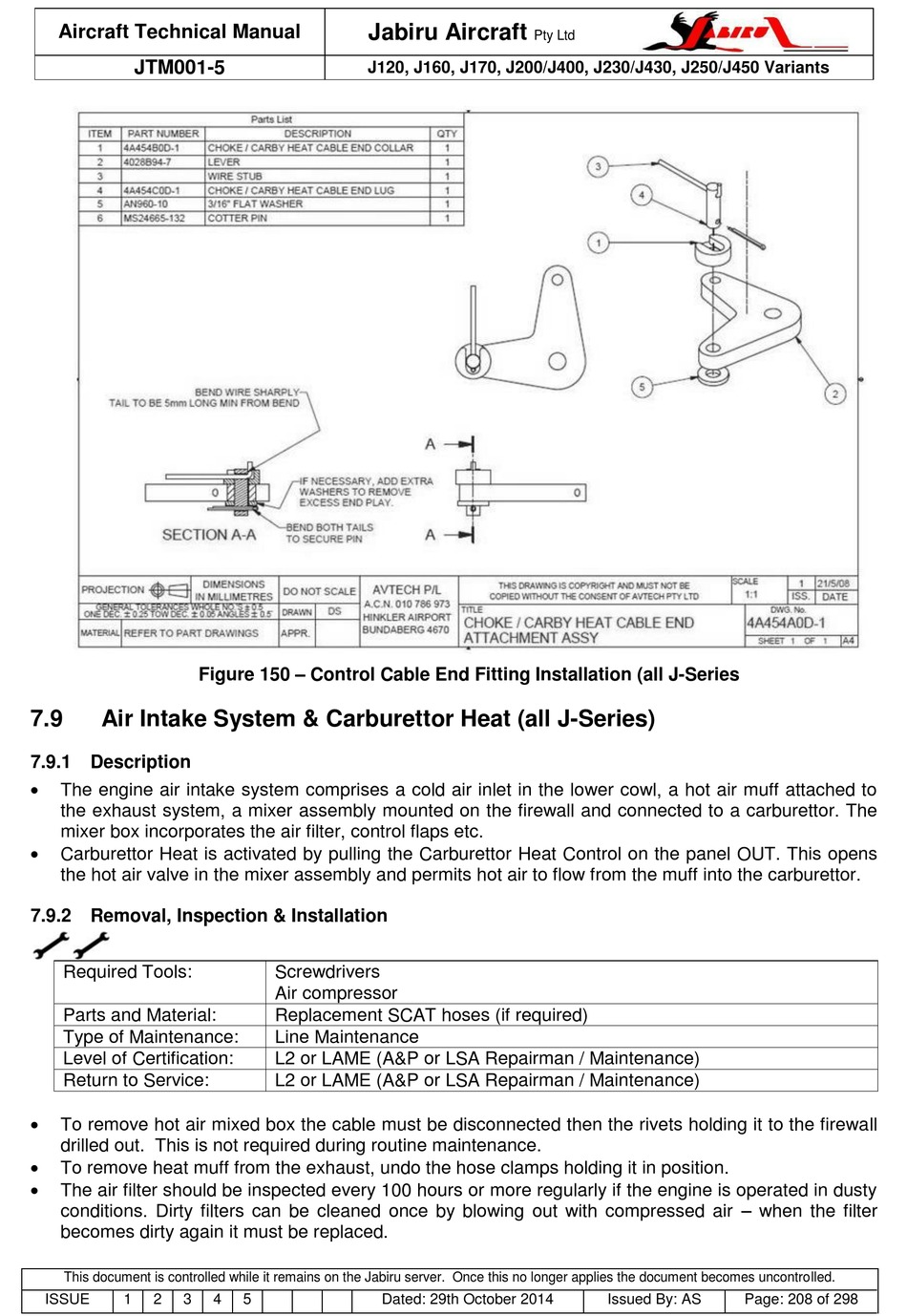

Figure 150 – Control Cable End Fitting Installation (all J-Series
7.9 Air Intake System & Carburettor Heat (all J-Series)
7.9.1 Description

The engine air intake system comprises a cold air inlet in the lower cowl, a hot air muff attached to
the exhaust system, a mixer assembly mounted on the firewall and connected to a carburettor. The
mixer box incorporates the air filter, control flaps etc.

Carburettor Heat is activated by pulling the Carburettor Heat Control on the panel OUT. This opens
the hot air valve in the mixer assembly and permits hot air to flow from the muff into the carburettor.
7.9.2 Removal, Inspection & Installation
Required Tools:
Parts and Material:
Type of Maintenance:
Level of Certification:
Return to Service:

To remove hot air mixed box the cable must be disconnected then the rivets holding it to the firewall
drilled out. This is not required during routine maintenance.

To remove heat muff from the exhaust, undo the hose clamps holding it in position.

The air filter should be inspected every 100 hours or more regularly if the engine is operated in dusty
conditions. Dirty filters can be cleaned once by blowing out with compressed air – when the filter
becomes dirty again it must be replaced.
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE 1 2 3
Jabiru Aircraft
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
Screwdrivers
Air compressor
Replacement SCAT hoses (if required)
Line Maintenance
L2 or LAME (A&P or LSA Repairman / Maintenance)
L2 or LAME (A&P or LSA Repairman / Maintenance)
