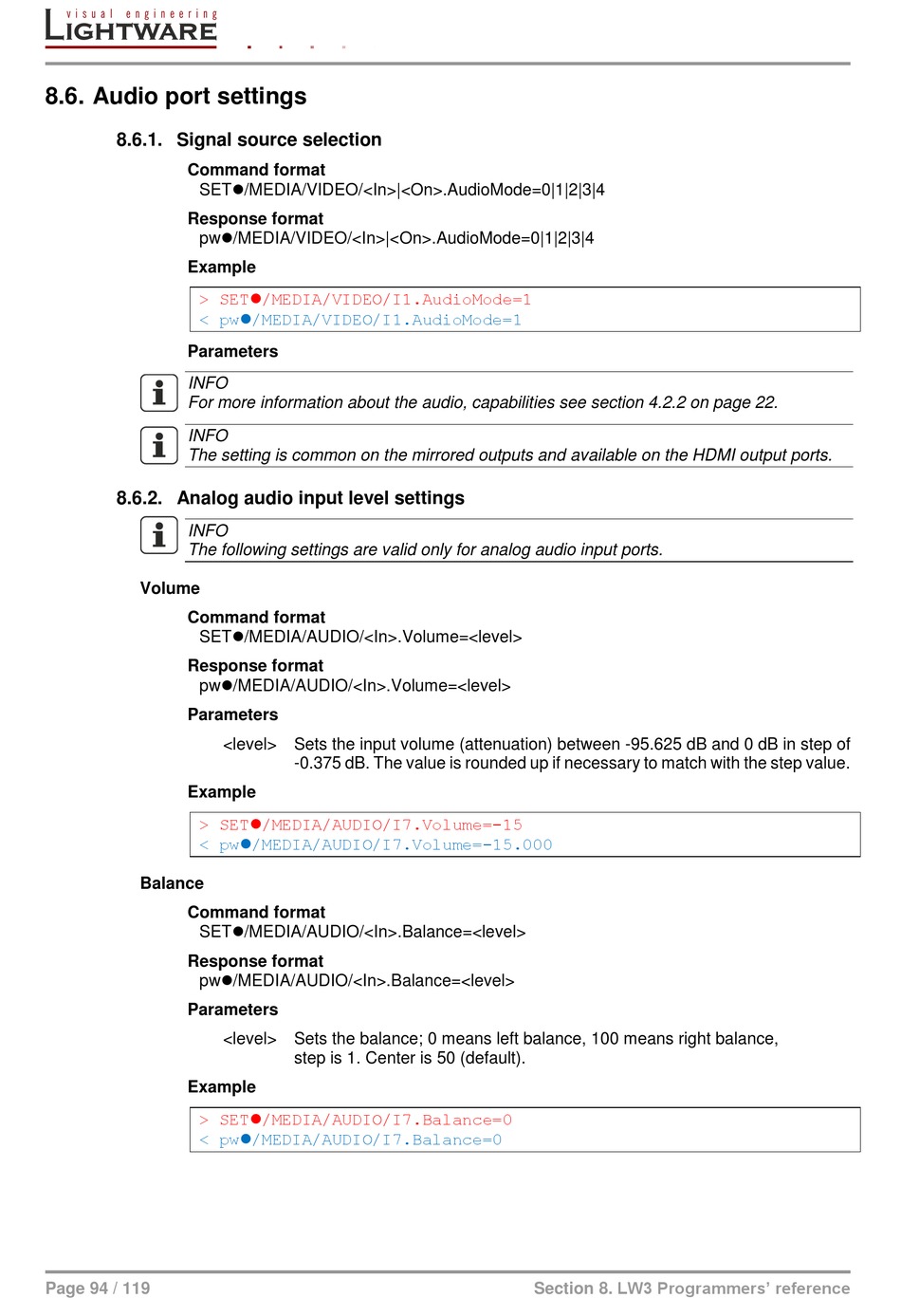

8.6. Audio port settings

8.6.1. Signal source selection

Command format
SET/MEDIA/VIDEO/<In>|<On>.AudioMode=0|1|2|3|4
Response format
pw/MEDIA/VIDEO/<In>|<On>.AudioMode=0|1|2|3|4
Example
> SET/MEDIA/VIDEO/I1.AudioMode=1
< pw/MEDIA/VIDEO/I1.AudioMode=1
Parameters
INFO
For more information about the audio, capabilities see section 4.2.2 on page 22.
INFO
The setting is common on the mirrored outputs and available on the HDMI output ports.

8.6.2. Analog audio input level settings

INFO
The following settings are valid only for analog audio input ports.
Volume
Command format
SET/MEDIA/AUDIO/<In>.Volume=<level>
Response format
pw/MEDIA/AUDIO/<In>.Volume=<level>
Parameters
Example
> SET/MEDIA/AUDIO/I7.Volume=-15
< pw/MEDIA/AUDIO/I7.Volume=-15.000
Balance
Command format
SET/MEDIA/AUDIO/<In>.Balance=<level>
Response format
pw/MEDIA/AUDIO/<In>.Balance=<level>
Parameters
Example
> SET/MEDIA/AUDIO/I7.Balance=0
< pw/MEDIA/AUDIO/I7.Balance=0
Page 94 / 119
<level> Sets the input volume (attenuation) between -95.625 dB and 0 dB in step of
-0.375 dB. The value is rounded up if necessary to match with the step value.
<level> Sets the balance; 0 means left balance, 100 means right balance,
step is 1. Center is 50 (default).
Section 8. LW3 Programmers' reference
