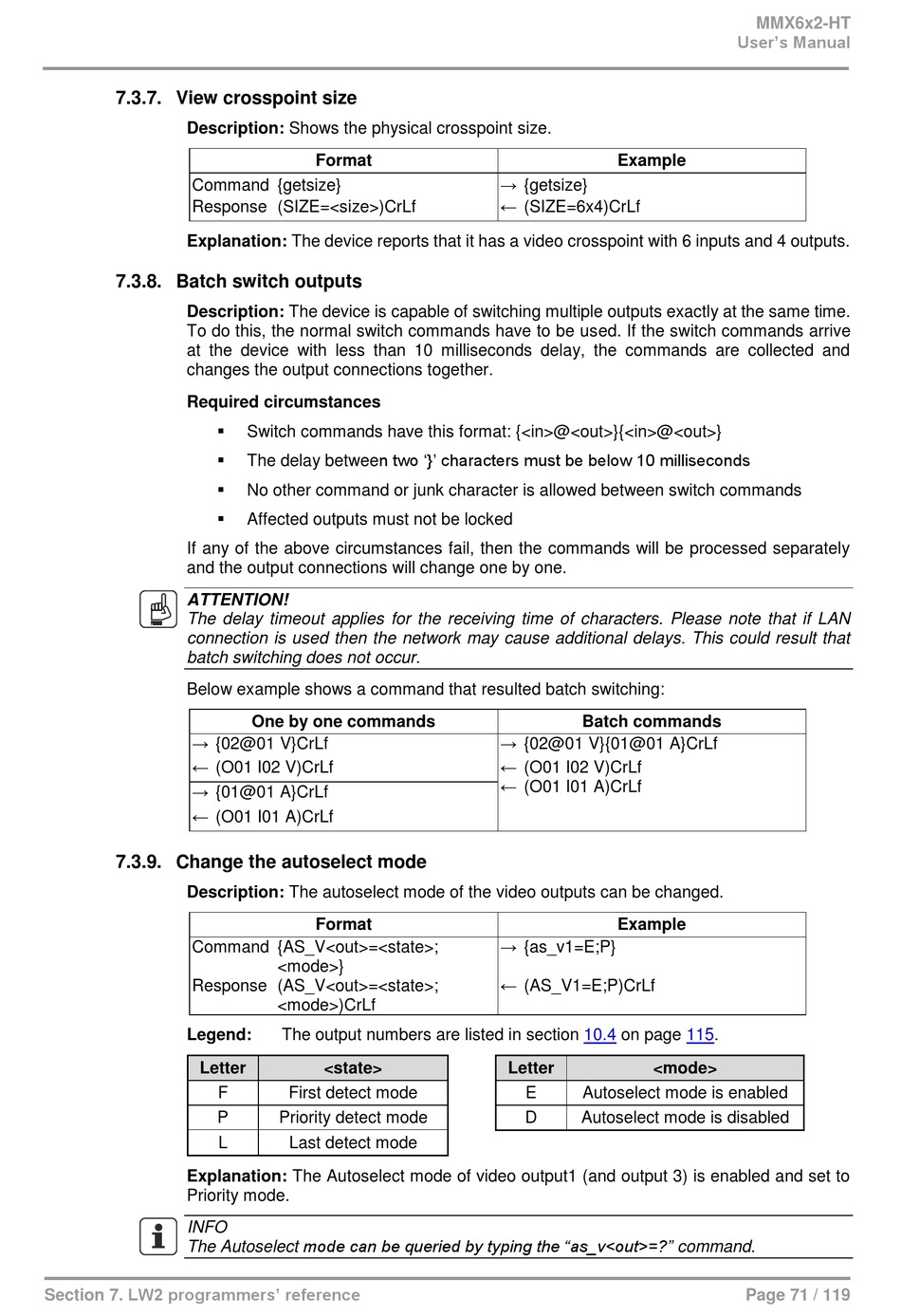

7.3.7. View crosspoint size

Description: Shows the physical crosspoint size.
Command {getsize}
Response (SIZE=<size>)CrLf
Explanation: The device reports that it has a video crosspoint with 6 inputs and 4 outputs.

7.3.8. Batch switch outputs

Description: The device is capable of switching multiple outputs exactly at the same time.
To do this, the normal switch commands have to be used. If the switch commands arrive
at the device with less than 10 milliseconds delay, the commands are collected and
changes the output connections together.
Required circumstances
If any of the above circumstances fail, then the commands will be processed separately
and the output connections will change one by one.
ATTENTION!
The delay timeout applies for the receiving time of characters. Please note that if LAN
connection is used then the network may cause additional delays. This could result that
batch switching does not occur.
Below example shows a command that resulted batch switching:
→ {02@01 V}CrLf
← (O01 I02 V)CrLf
→ {01@01 A}CrLf
← (O01 I01 A)CrLf

7.3.9. Change the autoselect mode

Description: The autoselect mode of the video outputs can be changed.
Command {AS_V<out>=<state>;
Response (AS_V<out>=<state>;
Legend:
Letter
Explanation: The Autoselect mode of video output1 (and output 3) is enabled and set to
Priority mode.
INFO
The Autoselect mode can be queried by typing the "as_v<out>=?" command.
Section 7. LW2 programmers' reference
Format

Switch commands have this format: {<in>@<out>}{<in>@<out>}
 The delay between two '}' characters must be below 10 milliseconds

No other command or junk character is allowed between switch commands

Affected outputs must not be locked
One by one commands
Format
<mode>}
<mode>)CrLf
The output numbers are listed in section
<state>
F First detect mode
P Priority detect mode
L Last detect mode
Example
→ {getsize}
← (SIZE=6x4)CrLf
Batch commands
→ {02@01 V}{01@01 A}CrLf
←
(O01 I02 V)CrLf
←
(O01 I01 A)CrLf
Example
→ {as_v1=E;P}
← (AS_V1=E;P)CrLf
10.4 on page 115.
Letter <mode>
E Autoselect mode is enabled
D Autoselect mode is disabled
