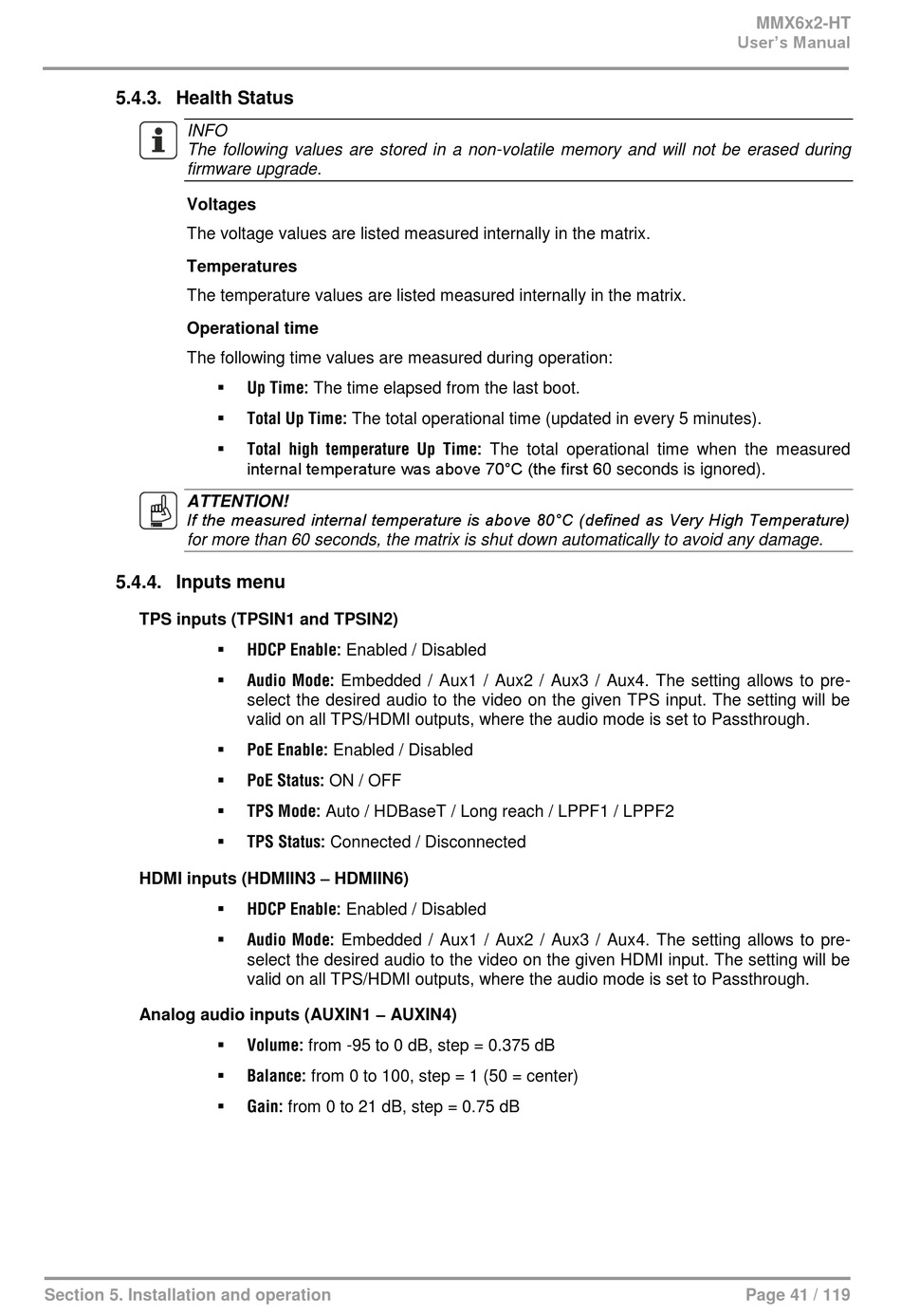

5.4.3. Health Status

INFO
The following values are stored in a non-volatile memory and will not be erased during
firmware upgrade.
Voltages
The voltage values are listed measured internally in the matrix.
Temperatures
The temperature values are listed measured internally in the matrix.
Operational time
The following time values are measured during operation:
ATTENTION!
If the measured internal temperature is above 80°C (defined as Very High Temperature)
for more than 60 seconds, the matrix is shut down automatically to avoid any damage.

5.4.4. Inputs menu

TPS inputs (TPSIN1 and TPSIN2)
HDMI inputs (HDMIIN3 – HDMIIN6)
Analog audio inputs (AUXIN1 – AUXIN4)
Section 5. Installation and operation

Up Time: The time elapsed from the last boot.

Total Up Time: The total operational time (updated in every 5 minutes).

Total high temperature Up Time: The total operational time when the measured
internal temperature was above 70°C (the first 60 seconds is ignored).

HDCP Enable: Enabled / Disabled

Audio Mode: Embedded / Aux1 / Aux2 / Aux3 / Aux4. The setting allows to pre-
select the desired audio to the video on the given TPS input. The setting will be
valid on all TPS/HDMI outputs, where the audio mode is set to Passthrough.

PoE Enable: Enabled / Disabled

PoE Status: ON / OFF

TPS Mode: Auto / HDBaseT / Long reach / LPPF1 / LPPF2

TPS Status: Connected / Disconnected

HDCP Enable: Enabled / Disabled

Audio Mode: Embedded / Aux1 / Aux2 / Aux3 / Aux4. The setting allows to pre-
select the desired audio to the video on the given HDMI input. The setting will be
valid on all TPS/HDMI outputs, where the audio mode is set to Passthrough.

Volume: from -95 to 0 dB, step = 0.375 dB

Balance: from 0 to 100, step = 1 (50 = center)

Gain: from 0 to 21 dB, step = 0.75 dB
