4.3. Video interface

The video crosspoint settings can be controlled by any of the following ways:

4.3.1. Mirrored outputs

The matrix has 4 HDMI and 2 HDBaseT input ports. One or two input ports can be routed
to the output ports at the same time. Optionally each TPS output port can have a mirrored
HDMI output port which means the same video stream is transmitted over the HDMI output
port and the TPS output port. Three variants are available, the difference between the
versions is the number of the mirrored output ports:
* Not available on MMX6x2-HT200.
** Available on output 1 on MMX6x2-HT210 and on output 1 & 2 on MMX6x2-HT220.
Section 4. TPS matrix concept

Pressing the Source and Destination buttons on the front panel,

Using Lightware Device Controller,

Sending LW2 or LW3 protocol command, or

Using the Autoselect function.

MMX6x2-HT200: 2x HDMI out

MMX6x2-HT210: 2x HDMI out, 1x TPS out (HDMI out1 mirrored)

MMX6x2-HT220: 2x HDMI out, 2x TPS out (HDMI out1 and out2 mirrored)

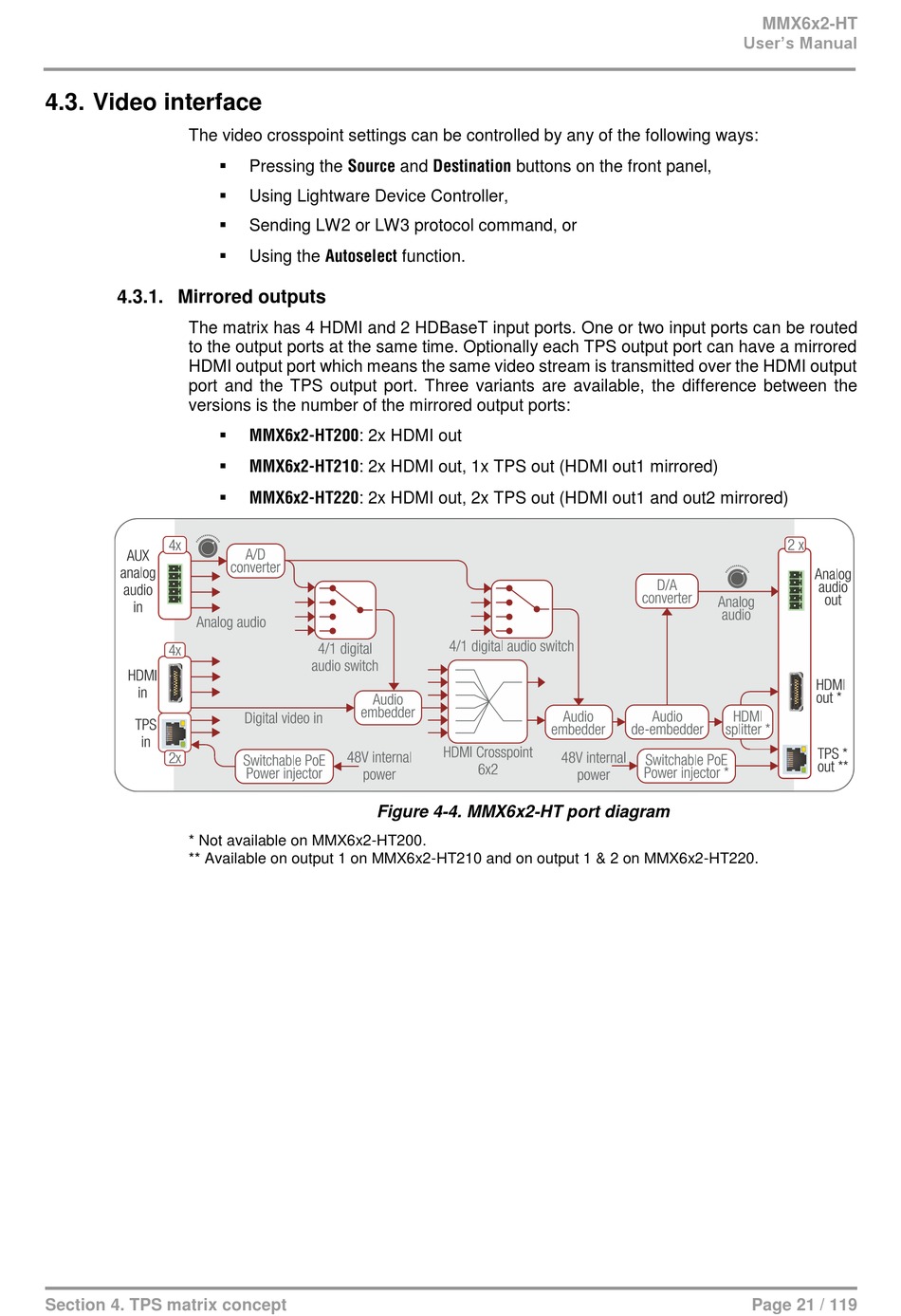

Figure 4-4. MMX6x2-HT port diagram
