Lock an output in AUTOTAKE mode
Step 1. Press and release the desired destination
Step 2. Press and release the Output Lock button;
Unlock an output in AUTOTAKE mode
Step 1. Press and release the desired destination
Step 2. Press and release the Output Lock button

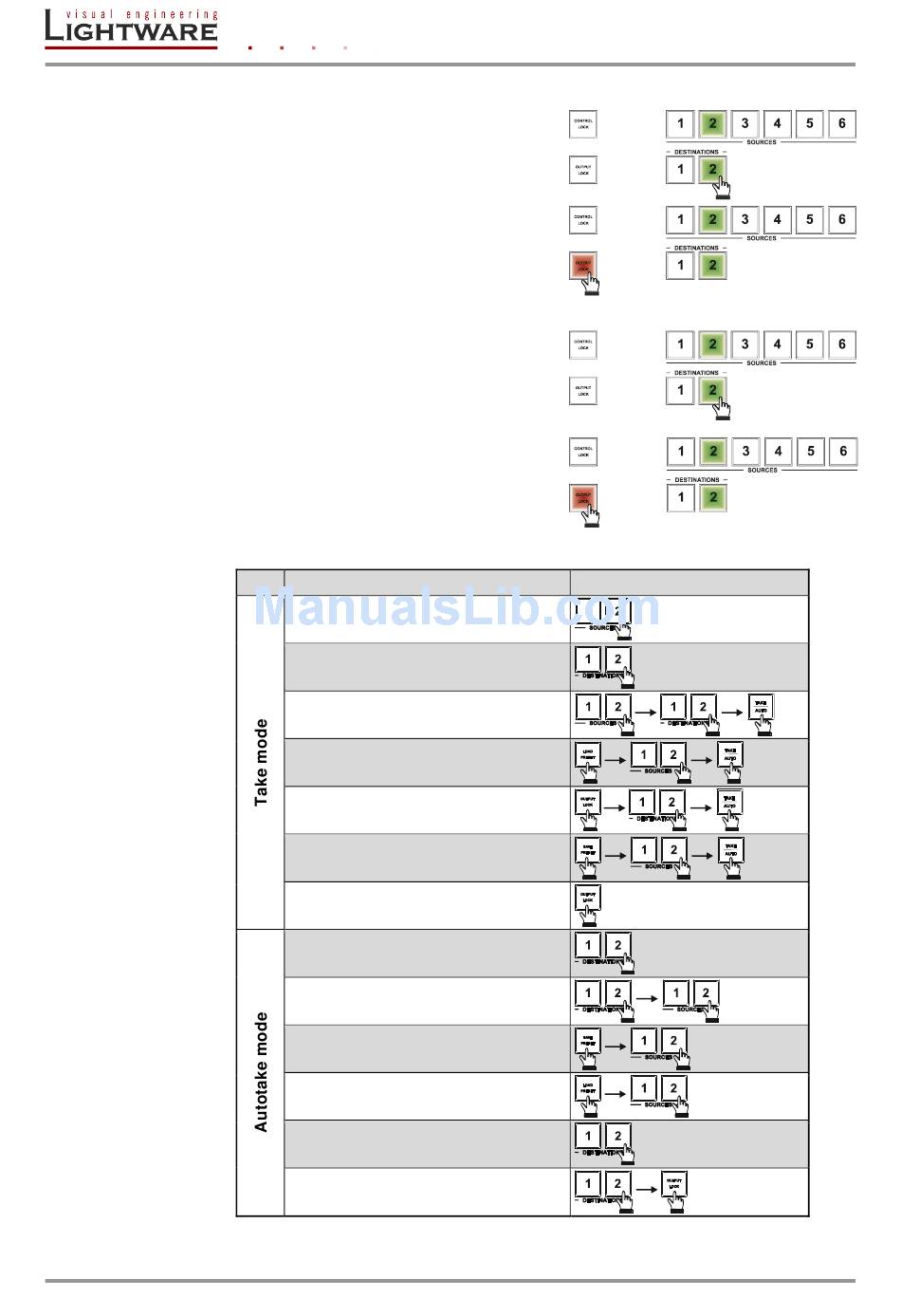

5.3.9. Front panel operations – Quick summary
Page 36 / 119
button. Now the selected destination
button and the currently configured
source button light up (view mode).
it lights up in red, and lock function is
activated at once. No source can be
changed at the locked destination.
button which was previously locked. Now
the selected destination button, the
currently configured source button and
the Output Lock button light up.
(deselect). Now the Output Lock button
turns off, and the locking function has
been cancelled.
Operation
View input connections
View output connections
Change connections
Save a preset
Load a preset
View locked outputs
Lock/Unlock an output
View current state
Create a connection
Save a preset
Load a preset
View locked state of an output
Lock/Unlock an output
Table 5-1. Front panel operations
Steps
