MAIN MENU

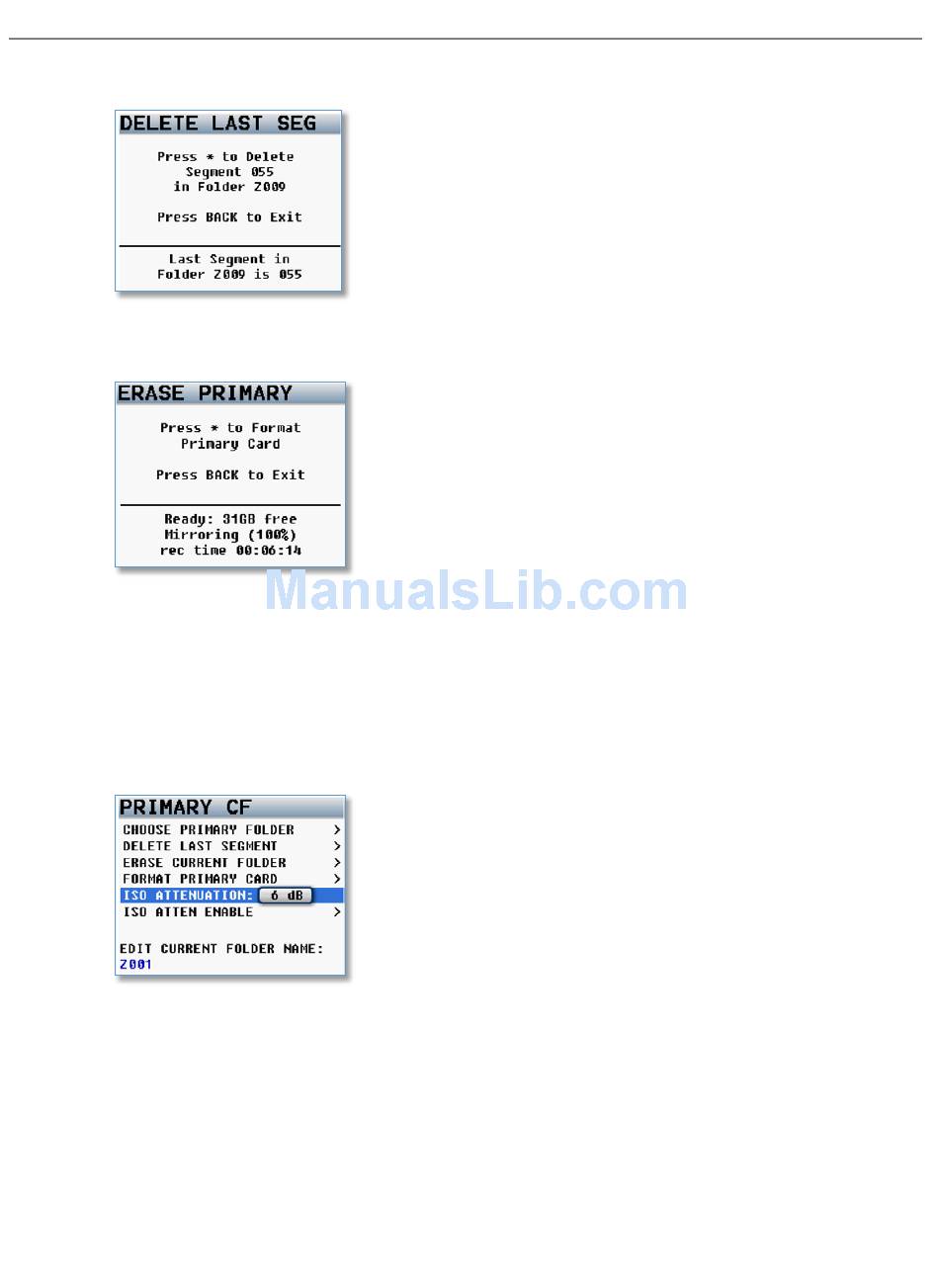

Delete Last Primary Segment

This page allows you to delete the last recorded segment by pressing STAR key

Format CF Card

This page is where the compact flash card is formatted. This process will take about 4 minutes to complete.

ISO Attenuation

The NeverClip™ inputs allow large signals to travel through the digital mixing engine using 32 bit floating
point numbers. Once these large signals are recorded into a 24-bit WAV (or MARF) file, the advantage of
floating point math is lost and these signals can clip if you don't use a card limiter.
ISO Attenuation allows ISO record tracks to be attenuated by a user selectable fixed amount of either 6, 12,
18 or 24 dB. This allows audio to be recorded un clipped, even if its dynamic range would normally be too
large. This gain reduction is stored in the metadata of the WAV file so post production can restore the
amplitude of the ISO tracks when necessary.
19
Record Setup
