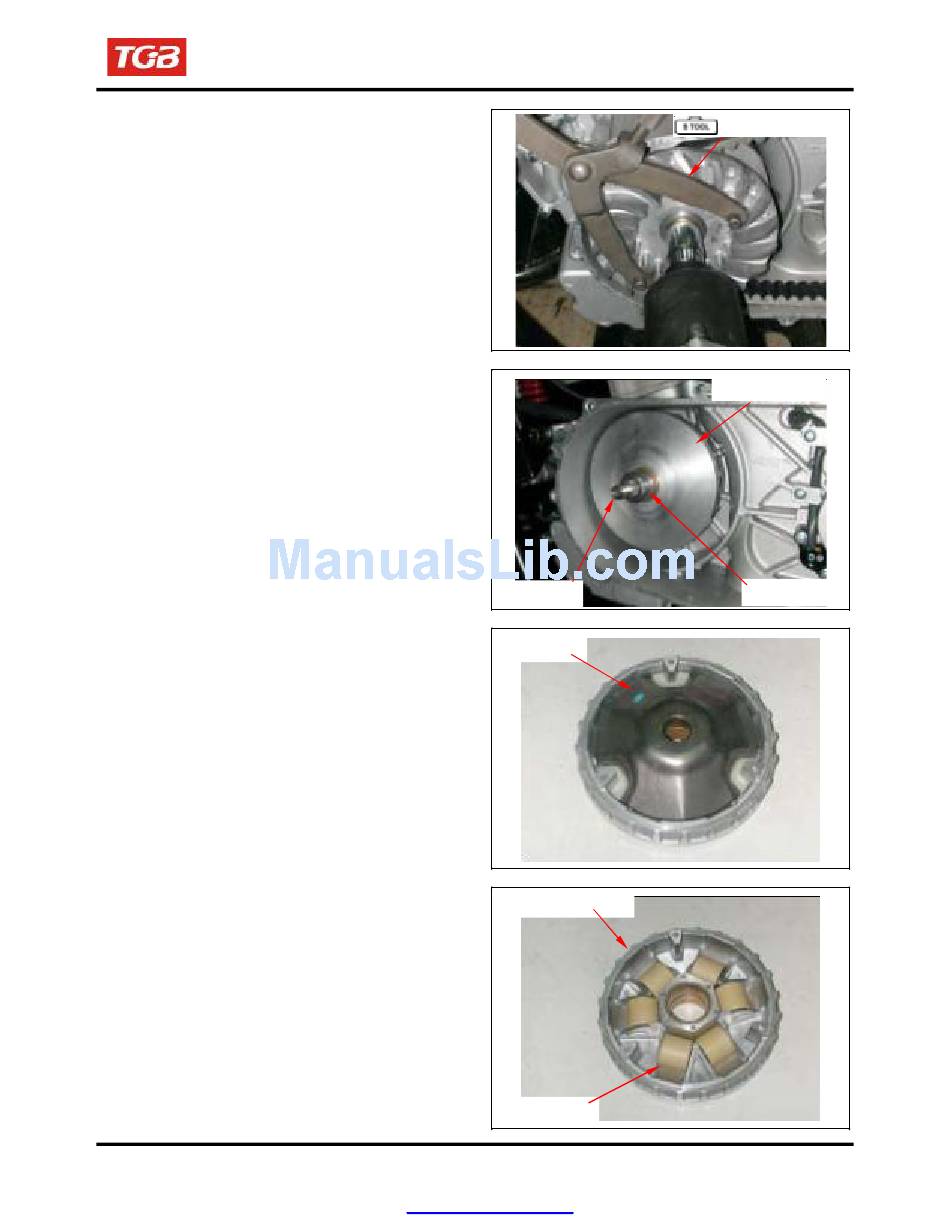

8. V-BELT DRIVING SYSTEM

Drive Face

Universal holder
Removal
Remove left crankcase cover.
Hold drive face with universal holder, and then
remove drive face nut.
Remove drive face and drive belt.
Remove movable drive face comp and drive face
Movable drive face
boss from crankshaft.
Crankshaft Drive face boss
Remove ramp plate.
Ramp plate
Remove weight rollers from movable drive face.
Movable drive face
Weight roller
