 SNMP
SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network
management frame of the network management system. The SNMP is widely used in many
environments. It is used in many network device, software and system.
You can set in the following interface. See Figure 5-45.
Please enable the SNMP function. Use the corresponding software tool (MIB Builder and MG-SOFT
MIB Browser. You still need two MIB file: BASE-SNMP-MIB, DVR-SNMP-MIB) to connect to the
device. You can get the device corresponding configuration information after successfully
connection.
Please follow the steps listed below to configure:

In Figure 5-45, check the box to enable the SNMP function. Input the IP address of the PC than
is running the software in the Trap address. You can use the default setup for the rest items.

Compile the above mentioned two MIB file via the software MIB Builder.

Run MG-SOFT MIB Browser to load the file from the previous step to the software.

Input the device IP you want to manage in the MG-SOFT MIB Browser. Please set the
corresponding version for your future reference.

Open the tree list on the MG-SOFT MIB Browser; you can get the device configuration. Here
you can see the device has how many video channels, audio channels, application version and
etc.
Note: Port conflict occurs when SNMP port and Trap port are the same.
© Copyright Qvis ®. All documentation rights reserved.

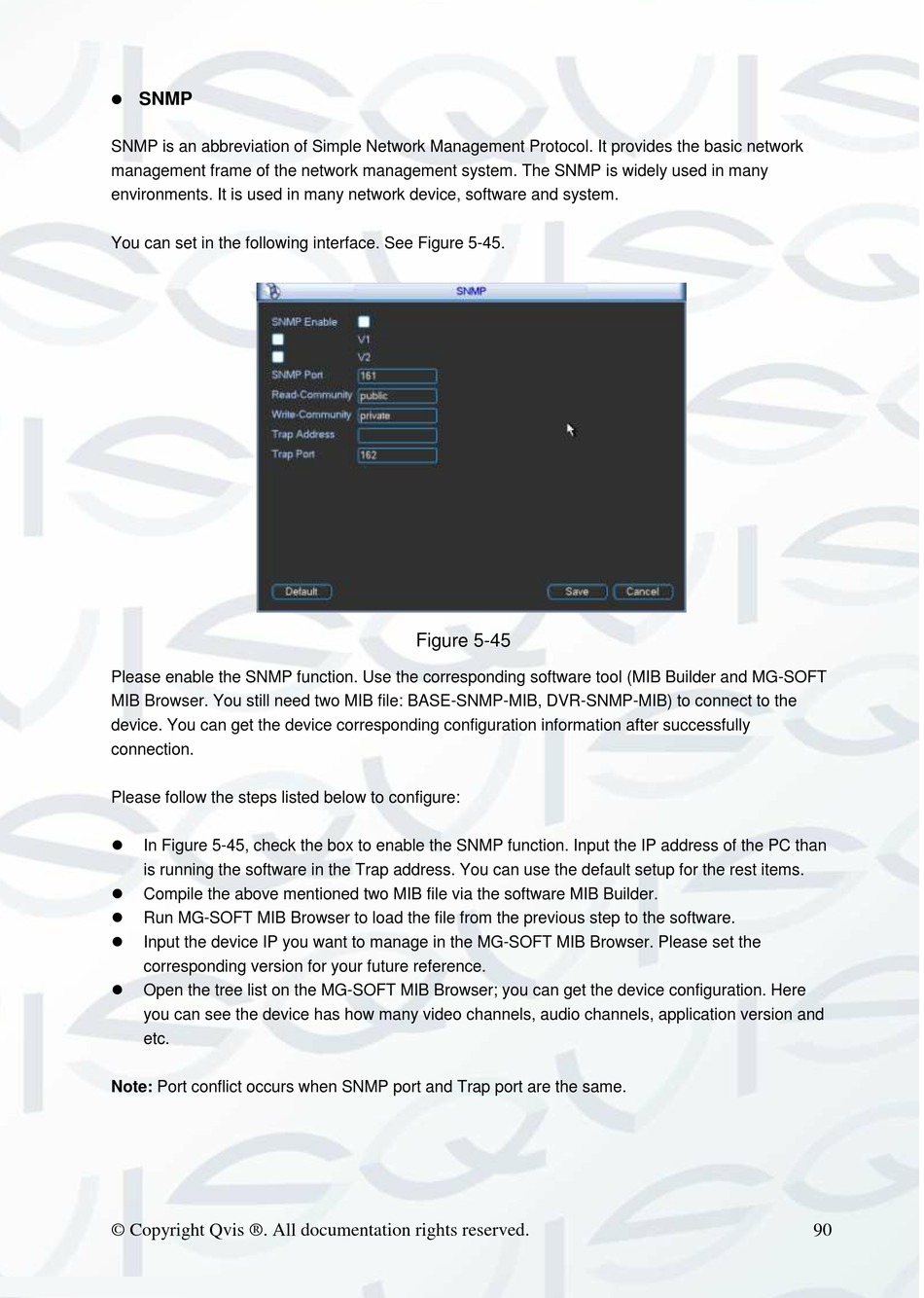

Figure 5-45
