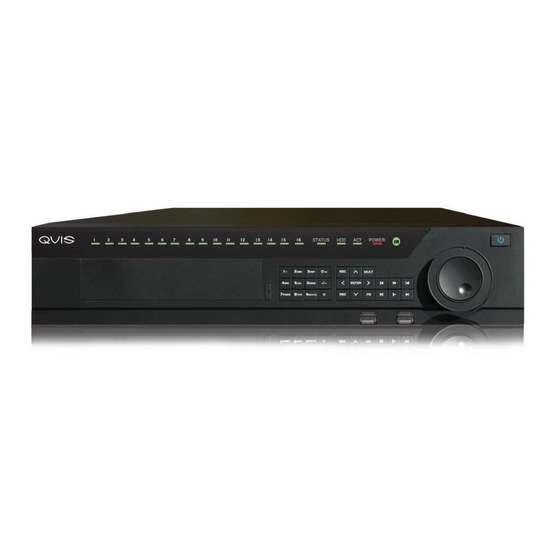

HDRT hd iAPOLLO prolite iapollo prodc 8/16/32 Channel Full Realtime D1 Professional Series DVR User’s Manual V1.0 06 / 2013...
Page 3: Table Of Contents
1 FEATURES AND SPECIFICATIONS ..............1 1.1 Overview ............................1 1.2 Features ............................1 1.3 Specifications ..........................3 1.3.1 iApollo HDRT HD ........................3 1.3.2 iApollo Prolite ..........................6 1.3.3 iApollo PRODC .......................... 9 2 OVERVIEW AND CONTROLS ................13 2.1 Front Panel ............................
Page 4 4.4.1 Smart Search ........................... 54 4.4.2 Accurate playback by time ....................... 54 4.4.3 Mark Playback ......................... 55 4.4.4 Multiple-channel Preview ......................57 4.5 Schedule ............................58 4.5.1 Schedule Menu ........................58 4.5.2 Snapshot ..........................61 © Copyright Qvis® All documentation rights reserved.
Page 5 5.3 Setting ............................82 5.3.1 General ............................ 82 5.3.2 Encode ............................. 85 5.3.3 Schedule ..........................87 5.3.4 RS232 ............................87 5.3.5 Network ............................ 88 5.3.6 Alarm ............................107 5.3.7 Detect ............................. 107 5.3.8 Pan/Tilt/Zoom ........................107 © Copyright Qvis® All documentation rights reserved.
Page 6 6.2.6 Activate Pattern Function ....................... 137 6.2.7 Border Setup .......................... 137 6.2.8 Activate Border Function ....................... 138 6.2.9 Flip ............................138 7 WEB OPERATION ....................139 7.1 Network Connection ........................139 7.2 Login............................. 139 © Copyright Qvis® All documentation rights reserved.
Page 7 7.12 Un-install Web Control ......................203 8 FAQ ........................204 APPENDIX A HDD CAPACITY CALCULATION ..........210 APPENDIX B COMPATIBLE BACKUP DEVICE LIST ........211 APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS ....217 Welcome © Copyright Qvis® All documentation rights reserved.
Page 8 Thank you for purchasing the iApollo HDRT HD / iApollo PROLITE / iApollo PRODC! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about the corresponding DVR’s features and functions, as well as a detailed menu tree.
Page 9: Important Safeguards And Warnings
Contact your local retailer ASAP if something is broken in your package. 7. Lithium battery Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model! © Copyright Qvis® All documentation rights reserved. viii...
Page 10: Features And Specifications
Support specified zone enlargement.  Network operation: Support network remote real-time monitor, remote record search and remote PTZ control. © Copyright Qvis® All documentation rights reserved.
Page 11 Intelligent operation: Mouse operation function. In the menu, support copy and paste setup function  UPnP: It is to establish the mapping relationship between the LAN and the WAN via the UPnP protocol. Slight function differences may be found due to different series. © Copyright Qvis® All documentation rights reserved.
Page 12: Specifications
Support one privacy mask of user-defined size in full screen. mask Support max 4 zones. Image Channel information, time information and privacy mask zone. Information TV Adjust Adjust TV output zone suitable to anamorphic video. © Copyright Qvis® All documentation rights reserved.
Page 13 Upgrade via client or browser to realize remote maintenance. Network Network View alarm information such as external alarm, motion detection and control Function video loss via client. Support network PTZ lens control File download backup and playback © Copyright Qvis® All documentation rights reserved.
Page 14 User-friendly interface when login. Provide the following options: Logout Login, Logout and Shutdown /shutdown/ restart. Right authentication when shut down to make sure only those proper people can turn off DVR DC 12V Power © Copyright Qvis® All documentation rights reserved.
Page 15: Iapollo Prolite
Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s Record per channel Speed Video 1/4/8/9 windows 1/4/8/9 /16 windows Partition Monitor Support monitor tour functions such as alarm, motion detection, and Touring schedule auto control. PAL/NTSC Resolution Real-time monitor： (PAL/NTSC 704×576/704×480 © Copyright Qvis® All documentation rights reserved.
Page 16 (It may vary due to different series.) Playback Window Switch between self-adaptive screen/full screen when playback Zoom Partial When in one-window full-screen playback mode, you can select any zone Enlargemen to activate partial enlargement function. Backup Backup HDD backup © Copyright Qvis® All documentation rights reserved.
Page 17 Integrated management for local user, serial port user and network user. Manageme Configurable user power. Support user /group and its corresponding rights modification. No limit to the user or group amount. Password Password modification Administrator can modify other user’s password. Authenticati © Copyright Qvis® All documentation rights reserved.
Page 18: Iapollo Prodc
1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output. Video monitor 1-ch VGA output. Video Output 1-ch HDMI output. 1-ch matrix output. Support TV/VGA/HDMI video output at the same time. Video Support PAL/NTSC. Standard © Copyright Qvis® All documentation rights reserved.
Page 19 When hard disk is full, system can overwrite previous video file. Record Search Various search engines such as time, type and channel. Playback Various fast play, slow play speeds, manual frame by frame playback Mode and reverse play mode. © Copyright Qvis® All documentation rights reserved.
Page 20 PTZ control port RS485 Support various PTZ control protocols. Ordinary COM (Debug),keyboard connection and transparent serial RS232 port(COM input and output via network ) System Hard Disk Display HDD current status Information Information © Copyright Qvis® All documentation rights reserved.
Page 21 Power Power General Consumption 25W (Exclude HDD) Parameter Working 0℃－＋55℃ Temperature Working 10%－90% Humidity Air Pressure 86kpa－106kpa 2U standard industrial case. 440(W) x460 (D) x89mm(H) Dimension Weight 6.5-7.5KG(Exclude HDD) Installation Desktop/rack installation Mode © Copyright Qvis® All documentation rights reserved.
Page 22: Overview And Controls
 playback  In reverse playback, click this button to pause  playback. Play previous In playback mode, playback the previous video   Play Next In playback mode, playback the next video © Copyright Qvis® All documentation rights reserved.
Page 23 Network abnormal Network error occurs or there is no network connection, indication light the light becomes red to alert you. IR Receiver It is to receive the signal from the remote control. © Copyright Qvis® All documentation rights reserved.
Page 24: Iapollo Prolite
Multiple slow play speeds or normal playback. Slow play/8 In text mode, input number 8 (English character T/U/V). One-window monitor mode, click this button to display Assistant assistant function: PTZ control and image color. © Copyright Qvis® All documentation rights reserved.
Page 25 Status indication Status If there is Fn indication light, current status indication light is null. light Power indication Power Power indication light light Record light 1-16 It becomes on when system is recording. © Copyright Qvis® All documentation rights reserved.
Page 26: Iapollo Prodc
ENTER Go to default button Go to menu Manually stop/start recording, working with direction keys Record or numeral keys to select the recording channel. Slow play Multiple slow play speeds or normal playback. © Copyright Qvis® All documentation rights reserved.
Page 27 To connect USB storage device, USB mouse. Remote control Remote control indication light indication light Status indication Status The light is on if device operates properly. light Power indication Power indication light light © Copyright Qvis® All documentation rights reserved.
Page 28: Rear Panel
Audio input Video spot output Video CVBS output Bidirectional talk input Audio output Network port USB port HDMI port Video VGA output RS232 port Alarm input/alarm output/RS485 port Power socket GND port On/off button © Copyright Qvis® All documentation rights reserved.
Page 29: Iapollo Prolite
Video input Video CVBS output Bidirectional talk input port Bidirectional talk output port Audio output Alarm input/Alarm output/RS485 port Video VGA output HDMI port RS232 port eSATA port USB port Network port © Copyright Qvis® All documentation rights reserved.
Page 30: Iapollo Prodc
Bidirectional talk input port Bidirectional talk output port Alarm input/Alarm output/RS485 port HDMI port Video VGA output HDMI port Video CVBS output RS232 port Video matrix output eSATA port USB port Network port © Copyright Qvis® All documentation rights reserved.
Page 31 Video CVBS output Matrix video output Audio output Bidirectional talk input port Bidirectional talk output port Alarm input/Alarm output/RS485 port Network port HDMI port RS232 port eSATA port USB port Video VGA output © Copyright Qvis® All documentation rights reserved.
Page 32: Connection Sample
2.3 Connection Sample 2.3.1 iApollo HDRT HD Please refer to Figure 2-9 for connection sample. The following figure is based on the 8-channel series product. Figure 2-9 © Copyright Qvis® All documentation rights reserved.
Page 34: Iapollo Prodc
2.3.3 iApollo PRODC Please refer to Figure 2-11 for connection sample. The following figure is based on the 16-channel series product. Figure 2-11 © Copyright Qvis® All documentation rights reserved.
Page 35: Remote Control
In playback mode, playback the next video. Previous record In playback mode, playback the previous video. Play/Pause In pause mode, click this button to realize normal playback. In normal playback click this button to pause playback. © Copyright Qvis® All documentation rights reserved.
Page 36 In text mode, click it to delete character. 0-9 number key Input password, channel or switch channel. Shift is the button to switch the input method. © Copyright Qvis® All documentation rights reserved.
Page 37: Mouse Control
Implement special control operation such as double click one item in the file click mouse list to playback the video. In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. © Copyright Qvis® All documentation rights reserved.
Page 38: Virtual Keyboard & Front Panel
Use > or < to shift between small character and capitalized character. 2.6.2 Front Panel Move the cursor to the text column. Click Fn key and use direction keys to select number you wanted. Please click enter button to input. © Copyright Qvis® All documentation rights reserved.
Page 39: Installation And Connections
1. Loosen the screws of the 2. Fix four screws in the HDD 3. Place the HDD in accordance with upper cover and side panel. (Turn just three rounds). the four holes in the bottom. © Copyright Qvis® All documentation rights reserved.
Page 40: Iapollo Prolite
4. Unfasten the HDD power 6. Insert the HDD power cable. Use the special data cable to cable. connect the HDD and the SATA Close the chassis and fix the port screws to secure firmly. © Copyright Qvis® All documentation rights reserved.
Page 41: Iapollo Prodc
If the HDD amount is less than four, you do not need to install the HDD bracket. When there is a bracket, please make sure the installation direction of HDDs is the same. © Copyright Qvis® All documentation rights reserved.
Page 42: Connecting Power Supply
B T T T B 3.5.2 Connecting Video Output ，75Ω）output, a VGA and HDMI output. Video output includes a BNC (PAL/NTSC1.0V System supports BNC, VGA and HDMI output at the same time. © Copyright Qvis® All documentation rights reserved.
Page 43: Connecting Audio Input & Output, Bidirectional Audio
Please make sure the alarm input mode is grounded alarm input. b. Grounding signal is needed for alarm input. c. Alarm input needs the low level voltage signal. d. Alarm input mode can be either NC (normal Open) or NO (Normal Close) © Copyright Qvis® All documentation rights reserved.
Page 44: Alarm Input And Output Details
3.7.1.1 iApollo HDRT HD The 8-channel series product interface is shown as below. See Figure AB cable connection Figure 3-1 © Copyright Qvis® All documentation rights reserved.
Page 45 NO C，2-NO C. Earth cable. 485 A/B 485 communication port. They are used to control devices such as PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders. © Copyright Qvis® All documentation rights reserved.
Page 46 It is rated power output. Earth cable. 485 A/B 485 communication port. They are used to control devices such as PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders. © Copyright Qvis® All documentation rights reserved.
Page 47: Alarm Input Port
 Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)  Use the same ground with that of DVR if you use external power to the alarm device. © Copyright Qvis® All documentation rights reserved.
Page 48: Alarm Output Port
Between touches with same Surge voltage 1500V (10×160us) polarity 3ms max Length of open time 3ms max Length of close time Longevity Mechanical 50×106 times (3Hz) Electrical 200×103 times (0.5Hz) Temperature -40℃ ~+70℃ © Copyright Qvis® All documentation rights reserved.
Page 49: Rs232
2. Connect the other end of the cable to the proper pins in the connector on the camera. 3. Please follow the instructions to configure a camera to enable each PTZ device on the DVR. © Copyright Qvis® All documentation rights reserved.
Page 50: Other Interfaces
1.1 Other Interfaces There are still other interfaces on the DVR, such as USB ports. You can refer to the Error! Reference source not found. for more information. iApollo HDRT HD iApollo PROLITE © Copyright Qvis® All documentation rights reserved.
Page 52: Overview Of Navigation And Controls
Username: admin. Password: admin. (administrator, local and network)  Username: 888888. Password: 888888. (administrator, local only)  Username: 666666. Password: 666666(Lower authority user who can only monitor, playback, backup and etc.)  Username: default. Password: default(hidden user) © Copyright Qvis® All documentation rights reserved.
Page 53: Main Menu
There are two ways for you to log out. One is from menu option: In the main menu, click shutdown button, you can see an interface is shown as below. See Figure 4-4. © Copyright Qvis® All documentation rights reserved.
Page 54: Auto Resume After Power Failure
If you want to change system date and time, you can refer to general settings (Main Menu->Setting->General). If you want to modify the channel name, please refer to the display settings (Main Menu->Setting->Display). Recording status Video loss Motion detection Camera lock © Copyright Qvis® All documentation rights reserved.
Page 55  Please go to the Main Menu->General to set real-time playback time.  System may pop up a dialogue box if there is no such record in current channel. © Copyright Qvis® All documentation rights reserved.
Page 56: Manual Record
Right click mouse or in the main menu, Advanced->Manual Record.  In live viewing mode, click record button in the front panel or record button in the remote control. Manual record menu is shown as in Figure 4-7. © Copyright Qvis® All documentation rights reserved.
Page 57: Basic Operation
Please check current channel status: “○” means it is not in recording status, “●” means it is in recording status. You can use mouse or direction key to highlight channel number. See Figure 4-8. Figure 4-8 © Copyright Qvis® All documentation rights reserved.
Page 58: Enable All Channel Recording
When system is in manual recording, all scheduled set up you have set in will be null ((Main menu->Setting->Schedule)). You can see indication light in front panel turns on, system begins manual record now. Figure 4-10 © Copyright Qvis® All documentation rights reserved.
Page 59: Stop All Channel Recording
Click search button in the main menu, search interface is shown as below. See Figure 4-12. Usually there are three file types:  R: Regular recording file.  A: External alarm recording file.  M: Motion detection recording file. Figure 4-12 © Copyright Qvis® All documentation rights reserved.
Page 60 Click it to go to mark file list interface. You can view all mark information of current channel by time. Please refer to chapter 4.4.3 for detailed information. Mark file Please note only the product of this icon supports mark function. list button © Copyright Qvis® All documentation rights reserved.
Page 61 The time bar is beginning with 0 o'clock when you are setting the configuration. unit The time bar zooms in the period of the current playback time when you are playing the file. © Copyright Qvis® All documentation rights reserved.
Page 62 During the file playback process, you can switch to other channel via the switch dropdown list or rolling the mouse. channel This function is null if there is no record file or system is in smart search when process. playback © Copyright Qvis® All documentation rights reserved.
Page 63: Smart Search
For example, click time 06:00.00 and then click Search button, you can view all the record files after 06:00.00 (The records includes current time.). Click Play button, you can see system begins play from 06:00.00. See Figure 4-14. © Copyright Qvis® All documentation rights reserved.
Page 64: Mark Playback
It is very easy for you to get the important video information.  Add Mark When system is playback, click Mark button , you can go to the following interface. See 4-15 Figure © Copyright Qvis® All documentation rights reserved.
Page 65 Search interface (Figure 4-12); you can go to Mark 4-16 Manager interface. See Figure . System can manage all the record mark information of current channel by default. You can view all mark information of current channel by time. © Copyright Qvis® All documentation rights reserved.
Page 66: Multiple-Channel Preview
 Enable: Check the box here to enable this function.  Storage: This function is null right now.  Frame rate: PAL：1-25fps.NTSC:30fps.  Bit stream value: Default setup is 1024Kb/S. © Copyright Qvis® All documentation rights reserved.
Page 67: Schedule
The white means the MD and alarm record is valid. Once you have set to record when the MD and alarm occurs, system will not record neither motion detect occurs nor the alarm occurs. © Copyright Qvis® All documentation rights reserved.
Page 68 Click the OK button to save current copy setup. Click the OK button in the Record interface so the copy function works. Please note, if you select ALL in Figure 4-20, the record setup of all channels are the same and the Copy button becomes hidden. © Copyright Qvis® All documentation rights reserved.
Page 70: Snapshot
Figure 4-21. In Schedule interface, please enable snapshot function. See interface on the right of Figure 4-21. Please refer to the following figure for detailed information. See Figure 4-21: Figure 4-21 © Copyright Qvis® All documentation rights reserved.
Page 71 Please note the activation snapshot has the higher priority than schedule snapshot. If you have enabled these two types at the same time, system can activate the activation snapshot when alarm occurs, and otherwise system just operates the schedule snapshot. © Copyright Qvis® All documentation rights reserved.
Page 72: Image Ftp
Enable: Check the box here to enable motion detect function.  Region: Click select button, the interface is shown as in Figure 4-25. Here you can set motion detection zone. There are 396(PAL)/330(NTSC) small zones. Blue zone is the motion © Copyright Qvis® All documentation rights reserved.
Page 73 Please set sensitivity and click Test button, you can see system only display motion detect status of the blue area. The red flashing area is current motion detect. See Figure 4-30. © Copyright Qvis® All documentation rights reserved.
Page 74 In Figure 4-25, you can left click mouse and then drag it to set a region for motion detection. Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit. Figure 4-24 Figure 4-25 © Copyright Qvis® All documentation rights reserved.
Page 76: Video Loss
Please refer to chapter 4.7 for local alarm setup information, except there is no device type, anti-dither, video matrix function.  System only enables video loss function during the period you set here. It is null for motion detect or camera masking type. © Copyright Qvis® All documentation rights reserved.
Page 77: Camera Masking
Default button at the camera masking interface, you can only restore default camera masking setup. It is null for other detect types.  System only enables camera masking function during the period you set here. It is null for motion detect or video loss type. © Copyright Qvis® All documentation rights reserved.
Page 78: Alarm Setup And Alarm Activation
Period: Click set button, you can see an interface is shown as in Figure 4-35. Here you can set for business day and non-business day. In Figure 4-35, click set button, you can see an © Copyright Qvis® All documentation rights reserved.
Page 79  Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.  Snapshot: For snapshot operation, please refer to chapter 4.5.2 . © Copyright Qvis® All documentation rights reserved.
Page 80 The rest items are the same. Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu. Figure 4-33 Figure 4-34 © Copyright Qvis® All documentation rights reserved.
Page 81: Backup
Click backup button, you can see an interface is shown as in Figure 4-37. Here is for you to view devices information. You can view backup device name and its total space and free space. The device includes USB burner, flash disk, SD card, and portable HDD. © Copyright Qvis® All documentation rights reserved.
Page 82: Backup
When the system completes backup, you can see a dialogue box prompting successful backup. Figure 4-38 Click backup button, system begins burning. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. © Copyright Qvis® All documentation rights reserved.
Page 83: Ptz Control And Color Setup
Please follow the procedures below to go on cable connection  Connect the dome RS485 port to DVR 485 port.  Connect dome video output cable to DVR video input port.  Connect power adapter to the dome. © Copyright Qvis® All documentation rights reserved.
Page 84: Ptz Setup
After completing all the setting please click save button. Right click mouse (click “Fn” Button in the front panel or click “Fn” key in the remote control). The interface is shown as in Figure 4-41. © Copyright Qvis® All documentation rights reserved.
Page 85 Please click icon to adjust zoom, focus and iris. Figure 4-42 In Figure 4-42, please click direction arrows (See Figure 4-43) to adjust PTZ position. There are total 8 direction arrows. Figure 4-43 © Copyright Qvis® All documentation rights reserved.
Page 86: Intelligent Positioning Key
 Pattern  Border Figure 4-45 Figure 4-42, click page switch button, the interface is shown as in Figure 4-46. X 3 2 8 H 3 2 8 H 3 2 8 H © Copyright Qvis® All documentation rights reserved.
Page 87: 1Preset Setup
In Figure 4-42, use the eight direction arrows to adjust camera to the proper position. In Figure 4-45, click preset button and input preset number. The interface is shown as in Figure 4-47. Now you can add this preset to one tour. Figure 4-47 © Copyright Qvis® All documentation rights reserved.
Page 88: Activate Preset
Go back to Figure 4-49 and click “end” button. You can memorize all these operations as pattern Figure 4-49 4.9.6 Activate Pattern Function Figure 4-39, input mode value in the No. blank, and click pattern button. X 3 4 6 H 3 4 6 H 3 4 6 H © Copyright Qvis® All documentation rights reserved.
Page 89: Auto Scan Setup
4-51. Here you can set auxiliary function. The aux value has relation ship with the Aux button of the decoder. Click page switch button again, system goes back to Figure 4-42. Figure 4-51 © Copyright Qvis® All documentation rights reserved.
Page 90: Understanding Of Menu Operations And Controls
General Encode Schedule RS232 Menu Network Alarm Detect Pan/ Tilt/Zoom Display Default Search Advanced HDD Management Alarm Output Abnormality Manual Record Account Auto Maintain TV Adjust Video Matrix Title Overlay Config Backup Shutdown © Copyright Qvis® All documentation rights reserved.
Page 91: Main Menu
You can see an interface is shown as in Figure 5-4. Here you can set start time and end time by setting corresponding week setup. In Figure 5-4, enable date button, you can © Copyright Qvis® All documentation rights reserved.
Page 92 Note: Since system time is very important, do not modify time casually unless you must! Before your time modification, please stop record operation first! After completing all the setups please click save button, system goes back to the previous menu. © Copyright Qvis® All documentation rights reserved.
Page 94: Encode
Copy：After you complete the setup, you can click the Copy button to copy current setup to other channel(s). You can see an interface is shown as in Figure 5-10. You can see current channel number is grey. Please check the number to select the channel or © Copyright Qvis® All documentation rights reserved.
Page 95 Audio/video enable box, overlay button and the copy button is shield. See Figure 5-11. Please highlight icon to select the corresponding function. Figure 5-8 Figure 5-9 Figure 5-10 © Copyright Qvis® All documentation rights reserved.
Page 96: Schedule
 Function: Console  Baud rate:115200  Data bit: 8  Stop bit: 1  Parity: None After completing all the setups please click save button, system goes back to the previous menu. © Copyright Qvis® All documentation rights reserved.
Page 97: Network
RTSP port: Default value is 554. Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict. © Copyright Qvis® All documentation rights reserved.
Page 98 Important: For the IP address of IPv6 version, default gateway, preferred DNS and alternate DNS, the input value shall be 128-digit. It shall not be left in blank. After completing all the setups please click save button, system goes back to the previous menu. © Copyright Qvis® All documentation rights reserved.
Page 99 Figure 5-14 Network Setting Network setting interface is shown as in Figure 5-15. Please check the box to enable corresponding function and then double click current item to go to setup interface. Figure 5-15 © Copyright Qvis® All documentation rights reserved.
Page 100 If you enabled trusted sites, only the IP in the trusted sites list can access the device.  If you enabled blocked sites, the IP in the blocked sites can not access the device.  System supports add MAC address. © Copyright Qvis® All documentation rights reserved.
Page 102 GMT+9 Sydney GMT+10 Hawaii GMT-10 Alaska GMT-9 Pacific Time(P.T) GMT-8 American Mountain Time(M.T) GMT-7 American Central Time(C.T) GMT-6 American Eastern Time(E.T) GMT-5 Atlantic Time GMT-4 Brazil GMT-3 Middle Atlantic Time GMT-2 Figure 5-19 © Copyright Qvis® All documentation rights reserved.
Page 103 After you logged on to the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. © Copyright Qvis® All documentation rights reserved.
Page 104 Click save button, system prompts for rebooting to get all setup activated. After rebooting, open IE and input as below: http：//(DDNS server IP)/(virtual directory name)/webtest.htm e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.) Now you can open DDNSServer web search page. © Copyright Qvis® All documentation rights reserved.
Page 105 Before you use Quick DDNS, you need to enable this service and set proper server address, port value and domain name.  Server address：www.quickddns.com  Port number：80  Domain name：There are two modes: Default domain name and customized domain name. © Copyright Qvis® All documentation rights reserved.
Page 106 1~255 and the system port 256~1023 to avoid conflict. For the TCP and UDP, please make sure the internal port and external port are the same to guarantee the proper data transmission. © Copyright Qvis® All documentation rights reserved.
Page 107 Figure 5-23 Figure 5-24 WIFI You can view the WIFI connection status in the Network Setting interface. See Figure 5-25. You can view current connection status and IP address if there is a connection. © Copyright Qvis® All documentation rights reserved.
Page 108 Connect: Here you can click it to connect to the hotspot. System needs to turn off current connection and then connect to a new hotspot if there is connection of you selected one. See Figure 5-27. Figure 5-26 © Copyright Qvis® All documentation rights reserved.
Page 109 System does not support verification type WPA and WPA2. The display may become abnormal for the verification type and encryption type. After device successfully connected to the WIFI, you can view the hotspot name, IP address, subnet mask, default gateway and etc. See Figure 5-29. © Copyright Qvis® All documentation rights reserved.
Page 110 This function is very useful when there are too many emails activated by the abnormity events, which may result in heavy load for the email server. © Copyright Qvis® All documentation rights reserved.
Page 111 “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user. See Figure 5-32. © Copyright Qvis® All documentation rights reserved.
Page 112 IP, time and channel.  User name and password is the account information for you to login the FTP.  Now you can set upload file length, picture upload interval, upload file channel, time and type. © Copyright Qvis® All documentation rights reserved.
Page 113 The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface. See Figure 5-36. © Copyright Qvis® All documentation rights reserved.
Page 114 Default gateway: It is to display current default gateway. It is to display PPPoE if PPPoE dial succeeded. Priority: The value ranges from 0 to 3. 0 has the highest priority. Name: It is to display network name. Use to move current item up/down. © Copyright Qvis® All documentation rights reserved.
Page 115 Please enable the auto register function, the device can auto register to the proxy server. 1) The setup interface is shown as in Figure 5-38. Important: Do not input network default port such as TCP port number. Figure 5-38 © Copyright Qvis® All documentation rights reserved.
Page 116: Alarm
Stop bit: Select stop bit.  Parity: There are three choices: none/odd/even. After completed all the setups please click save button, system goes back to the previous menu. For detailed setup, please refer to chapter 4.10 preset/patrol/pattern/scan. © Copyright Qvis® All documentation rights reserved.
Page 117: Display
Delete: Click it to remove selected channel group.  Move up: Click it to move current selected channel up.  Move down: Click it to move current selected channel down.  Default: Click it to restore default setup. © Copyright Qvis® All documentation rights reserved.
Page 118 In Figure 5-40, click modify button after channel. You can see an interface is shown as in Figure 5-41. Please note all your modification here applies to local end only. You need to refresh web or client-end to get the latest channel name. System max support 25-digital character. Figure 5-41 © Copyright Qvis® All documentation rights reserved.
Page 119: Default
After all the setups please click save button, system goes back to the previous menu. Warning! System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation! © Copyright Qvis® All documentation rights reserved.
Page 120: Search
Double click advanced icon in the main window, the interface is shown as below. See Figure 5-44.There are total ten function keys: HDD management, alarm output, abnormity, manual record, account, auto maintenance, TV adjust and video matrix. Figure 5-44 © Copyright Qvis® All documentation rights reserved.
Page 121: Hdd Management
HDD operation: You can select HDD mode from the dropdown list such as read-only or you can erase all data in the HDD. Please note system needs to reboot to get all the modification activated. Figure 5-45 Please highlight icon to select the corresponding function. Figure 5-46 © Copyright Qvis® All documentation rights reserved.
Page 122 HDD Group 1, the second hard disk belongs to HDD Group 2. Important Once you change the HDD Group settings, system will reboot! Figure 5-47 © Copyright Qvis® All documentation rights reserved.
Page 123 HDD. You can remove the HDD and then check the channel can record or not. You can see the channel does not record and you can not search the previous record now. Figure 5-48 © Copyright Qvis® All documentation rights reserved.
Page 124 Click Quota Setup button, you can go to Figure 5-50. Here you can set the each channel storage capacity in each HDD. Figure 5-50 Click Quota Statistics, you can go to the following interface. You can view HDD capacity you set for each channel. See Figure 5-51. © Copyright Qvis® All documentation rights reserved.
Page 125: Abnormality
 Send email: System can send out email to alert you when alarm occurs.  Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs. Figure 5-52 © Copyright Qvis® All documentation rights reserved.
Page 126: Alarm Output
For group or user management, there are two levels: admin and user.  One user should belong to one group. User right can not exceed group right.  About reusable function: this function allows multiple users use the same account to login. © Copyright Qvis® All documentation rights reserved.
Page 127 Please select the account from the dropdown list, input the old password and then input the new password twice. Click the Save button to confirm current modification. For the users of user account right, it can modify password of other users. © Copyright Qvis® All documentation rights reserved.
Page 128 PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc. The modify group interface is similar to the Figure 5-56. Figure 5-56 © Copyright Qvis® All documentation rights reserved.
Page 129: Auto Maintenance
Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days. See Figure 5-58. You can select proper setup from dropdown list. After all the setups please click save button, system goes back to the previous menu. © Copyright Qvis® All documentation rights reserved.
Page 130: Tv Adjust
After all the setups please click OK button, system goes back to the previous menu. Figure 5-59 5.5.8 Video Matrix Here you can set matrix output channel and its interval. See Figure 5-60. It can support the 1/4/9/16-window sport tour and you can specify the interval. © Copyright Qvis® All documentation rights reserved.
Page 131: Card Overlay
Encode means overlay the card number in the record file.  Overlay Position: Here you can select the proper overlay position from the dropdown list. Figure 5-61 © Copyright Qvis® All documentation rights reserved.
Page 132 Usually you do not need to set source port and target port. There are total four groups IP. The record channel applies to one group (optional) only. Six frame ID groups verification can guarantee information validity and legal. © Copyright Qvis® All documentation rights reserved.
Page 133: Config Backup
You need to select a folder first. You can see a dialogue box asking you to select a folder if you are selecting a file. System pops up a dialogue box if there is no configuration © Copyright Qvis® All documentation rights reserved.
Page 134: Information
Here is for you to view system information. There are total six items: HDD (hard disk information), BPS (data stream statistics), log, version, online user and network information. See Figure 5-66. Figure 5-66 © Copyright Qvis® All documentation rights reserved.
Page 135: Hdd Information
Figure 5-67 Tips: Please click Fn button or left click mouse to view HDD record time and HDD type and time. Double click the HDD information; you will see the HDD SMART information. © Copyright Qvis® All documentation rights reserved.
Page 136: Bps
See Figure 5-70. Here you can use rolling bar to view information, or you can use Page up/Page down to view other log information. For the alarm event log such as video loss, you can click the Playback button at the bottom right corner to playback. © Copyright Qvis® All documentation rights reserved.
Page 137: Version
You can also update system here. See Figure 5-71.  Start: Please insert the USB device that have the update file to the device and then click the Start button to begin the update. © Copyright Qvis® All documentation rights reserved.
Page 138: Online Users
You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds. System refreshes current interface every five seconds to detect there is any newly added or deleted user. Figure 5-72 © Copyright Qvis® All documentation rights reserved.
Page 139: Network Information
The file is named after “Network adapter name+time”. You can use software such as Wireshark to open the packets on the PC for the professional engineer to solve complicated problems. Figure 5-73 © Copyright Qvis® All documentation rights reserved.
Page 140 Here you can view information of all connected network adapters. The connection status is shown as offline if connection is disconnected. Click one network adapter, you can view the flow statistics such as send rate and receive rate at the top panel Figure 5-74 © Copyright Qvis® All documentation rights reserved.
Page 141: Shutdown
 Restart application: reboot DVR.  Shutdown: system shuts down and turns off power.  Restart system: system begins rebooting.  Switch user: you can use another account to log in. Figure 5-75 © Copyright Qvis® All documentation rights reserved.
Page 142: About Auxiliary Menu
X 3 9 8 H 3 9 8 H 3 9 8 H Here you can set the following items:  Zoom  Focus  Iris Please click icon to adjust zoom, focus and Iris. Figure 6-2 © Copyright Qvis® All documentation rights reserved.
Page 143: Intelligent Positioning Key
The interface is shown as below: X 4 0 2 H 4 0 2 H 4 0 2 H Here you can set the following items:  Preset  Patrol  Pattern  Border © Copyright Qvis® All documentation rights reserved.
Page 144: Preset Setup
, click preset button and input preset number. The interface is shown as in F igure X 4 0 9 H 4 0 9 H 4 0 9 H X 4 1 0 H 4 1 0 H 4 1 0 H © Copyright Qvis® All documentation rights reserved.
Page 146: Activate Pattern Function
X 4 2 2 H 4 2 2 H 4 2 2 H F igure 6-10 and click left limit button. X 4 2 3 H 4 2 3 H 4 2 3 H Repeat the above procedures to set right limit. Figure 6-10 © Copyright Qvis® All documentation rights reserved.
Page 147: Activate Border Function
. Here you can set auxiliary function. Click page switch button again, system goes back to F igure 6-2 X 4 2 7 H 4 2 7 H 4 2 7 H Figure 6-11 © Copyright Qvis® All documentation rights reserved.
Page 148: Web Operation
10.10.3.16, then please input http:// 10.10.3.16 in IE address column. See Figure 7-1. Input your IP address here. Figure 7-1 System pops up warning information to ask you whether install webrec.cab control or not. Please click yes button. © Copyright Qvis® All documentation rights reserved.
Page 149 Please input your user name and password. Default factory name is admin and password is admin. Then you can select the login mode: LAN and WAN. Note: For security reasons, please modify your password after you first login. © Copyright Qvis® All documentation rights reserved.
Page 150: Lan Mode
Section 2: There are channel number and one button: Start all. Start all button is to enable/disable all-channel real-time monitor. Click it the button becomes yellow. See Figure 7-4. Figure 7-4 Please refer to Figure 7-5 for main stream and extra stream switch information. © Copyright Qvis® All documentation rights reserved.
Page 151 Section 4: Instant record button. Click it, the button becomes yellow and system begins manual record. See Figure 7-7. Click it again, system restores previous record mode. Figure 7-7  Section 5: Local play button. © Copyright Qvis® All documentation rights reserved.
Page 152 You can set video fluency and real-time feature priority.  Section 7: PTZ operation panel. Please refer to chapter 7.5 for detailed information.  Section 8: Image setup and alarm setup. Please refer to chapter 7.6 for detailed information. Figure 7-9 © Copyright Qvis® All documentation rights reserved.
Page 153: Real-Time Monitor
There are eight direction keys. In the middle of the eight direction keys, there is a 3D intelligent positioning key. Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size. It can realize PTZ automatically. © Copyright Qvis® All documentation rights reserved.
Page 154 You can select one option and then click AUX on or AUX off button. You can turn on or turn off the light/wiper. Light and wiper 3D Intelligent Positioning You can click this icon to display or hide the PTZ control platform. Figure 7-12 © Copyright Qvis® All documentation rights reserved.
Page 155: Image/Relay-Out
7.6.3 Multiple-channel preview System allows you to preview several channels on one channel. It supports 1/4/8/9-window. See Figure 7-15. Please note only the product of this icon can support current function. Figure 7-15 © Copyright Qvis® All documentation rights reserved.
Page 156: Wan Login
1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null. 2) You can select different channel and different monitor mode at the bottom of the interface. See Figure 7-17. © Copyright Qvis® All documentation rights reserved.
Page 157 For bandwidth consideration, system can not support monitor and playback at the same time. System auto closes monitor or playback interface when you are searching setup in the configuration interface. It is to enhance search speed. © Copyright Qvis® All documentation rights reserved.
Page 158: Setup
Please note the video may become hazy if the value is too high. The value ranges from 0 to 100.The recommended value ranges from 40 to 60. © Copyright Qvis® All documentation rights reserved.
Page 160 This function allows you to verify the video is tampered or not. Watermark enable Here you can select watermark bit stream, watermark mode and watermark character. Default character is DigitalCCTV. The max length is 85-digit. The character can only include number, character and underline. © Copyright Qvis® All documentation rights reserved.
Page 161 It is to set the image quality. There are six levels. Quality It is to set snapshot frequency. The value ranges from 1s to 7s. Interval Click it; you can copy current channel setup to other Copy channel(s). © Copyright Qvis® All documentation rights reserved.
Page 162 You can enable this function so that system overlays channel information in video window. You can use the mouse to drag the channel title position. You can view channel title on the live video of the WEB or the playback video. © Copyright Qvis® All documentation rights reserved.
Page 163 C:\PictureDownload and C:\RecordDownload. Please click the Save button to save current setup. Figure 7-22 V. Channel Name Here you can set channel name. See Figure 7-23. Figure 7-23 © Copyright Qvis® All documentation rights reserved.
Page 164: Network
Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway. Preferred DNS DNS IP address. Alternate DNS Alternate DNS IP address. © Copyright Qvis® All documentation rights reserved.
Page 165 The default value is 37778. You can input the actual port UDP port number if necessary. HTTP port The default value is 80. You can input the actual port number if necessary. RTSP port The default value is 554. © Copyright Qvis® All documentation rights reserved.
Page 166 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, you can view latest connection status. © Copyright Qvis® All documentation rights reserved.
Page 167 If the pulse interval is 0, then system does not end 3G connection after  you close the extra stream monitor. Pulse interval here is for extra stream only. This item is null if you are  using main stream to monitor. © Copyright Qvis® All documentation rights reserved.
Page 168 Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated. © Copyright Qvis® All documentation rights reserved.
Page 169 It works even your IP address has changed. Please select DDNS from the dropdown list (Multiple choices). Before you use this function, please make sure your purchased device support current function. Figure 7-31 © Copyright Qvis® All documentation rights reserved.
Page 170 After successful registration, you can use domain name to login installed of the device IP.  User name: It is optional. You can input your commonly used email address. © Copyright Qvis® All documentation rights reserved.
Page 171 After you enabled trusted sites function, only the IP listed below can access current DVR. If you enable blocked sites function, the following listed IP addresses can not access current DVR. Figure 7-32 © Copyright Qvis® All documentation rights reserved.
Page 172 Input receiver email address here. Max three addresses. Receiver It supports SSL,TLS email box. The send interval ranges from 0 to 3600 seconds. 0 means Interval there is no interval. © Copyright Qvis® All documentation rights reserved.
Page 173 “UPnP User Interface”. Please click OK to begin installation.  Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the DVR can auto detect it via the “My Network Places” Figure 7-34 © Copyright Qvis® All documentation rights reserved.
Page 174 The read community will read/write/access all the objects the SNMP supported in the specified name. The default setup is write. The destination address of the Trap information from the Trap address proxy program of the device. © Copyright Qvis® All documentation rights reserved.
Page 175 Before you use alarm centre, please set server IP, port and etc. When an alarm occurs, system can send out data as the protocol defined, so the client-end can get the data. © Copyright Qvis® All documentation rights reserved.
Page 178 You need to check the box here to enable this function. System begins 1-wiindow or multiple-window tour display among the channel(s) you set to record when an alarm occurs. Please go to chapter 5.3.9 to set tour interval and tour mode. © Copyright Qvis® All documentation rights reserved.
Page 179 After analysis video, system can generate a camera masking alarm when the detected moving signal reached the sensitivity you set here. For detailed setups, please refer to chapter 0 motion detect for detailed information. © Copyright Qvis® All documentation rights reserved.
Page 180 Before operation, please make sure you have properly connected alarm devices such as buzzer. The input mode includes local alarm and network alarm. I. Local Alarm The local alarm interface is shown as in Figure 7-44. Figure 7-44 © Copyright Qvis® All documentation rights reserved.
Page 181 The value ranges from 5s to 600s. There are two options: NO/NC. Sensor type Record channel System auto activates motion detection channel(s) to record once an alarm occurs. Please note you need to set © Copyright Qvis® All documentation rights reserved.
Page 182 The network alarm interface is shown as in Figure 7-47. Network alarm refers to the alarm signal from the network. System does not anti-dither and sensor type setup. For reset setups, please refer to chapter 7.8.3 I. . Figure 7-47 © Copyright Qvis® All documentation rights reserved.
Page 183 Here you can set alarm output channel mode. See Figure 7-48. Figure 7-48 Abnormity It includes six statuses: No disk, disk error, net disconnection, IP conflict and MAC conflict. See Figure 7-49 through Figure 7-54. Figure 7-49 Figure 7-50 © Copyright Qvis® All documentation rights reserved.
Page 185: Storage
You can view the current time period setup from the color bar.  Green color stands for the general record/snapshot.  Yellow color stands for the motion detect record/snapshot..  Red color stands for the alarm record/snapshot. © Copyright Qvis® All documentation rights reserved.
Page 187 5/6/7. If you wan to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded. © Copyright Qvis® All documentation rights reserved.
Page 188 Here is for you to set HDD group. See Figure 7-60. Figure 7-60 III. HDD Channel The HDD channel interface is shown as in Figure 7-61. Here you can set channel group. Figure 7-61 © Copyright Qvis® All documentation rights reserved.
Page 189 The FTP function is on if you check the Enable box here. When network is offline or malfunction, system can save record or picture to HDD. Figure 7-62 Record control The record control interface is shown as in Figure 7-63. Figure 7-63 © Copyright Qvis® All documentation rights reserved.
Page 190: System
Check the corresponding All button, you can enable or disable all Start all/ channels record. stop all 7.8.5 System General The general interface includes General, date/time and holiday setup. I. General The general interface is shown as in Figure 7-64. Figure 7-64 © Copyright Qvis® All documentation rights reserved.
Page 191 Here is for you to specify record duration. The value ranges from 1 Pack to 120 minutes. Default value is 60 minutes. duration II. Date and time The date and time interface is shown as in Figure 7-65 Figure 7-65 © Copyright Qvis® All documentation rights reserved.
Page 192 It is to set the sync periods between the device and the time server. Interval III. Holiday Setup Holiday setup interface is shown as in Figure 7-66. Here you can check the box here to enable this function and then set. Figure 7-66 © Copyright Qvis® All documentation rights reserved.
Page 193 Here you can input the user name and password and then select one group for current user. Please note the user rights shall not exceed the group right setup. For convenient setup, please make sure the general user has the lower rights setup than the admin. © Copyright Qvis® All documentation rights reserved.
Page 194 Please click the OK button to save. Please note, the password ranges from 1-digit to 6-digit. It shall include the number only. For the user of the account rights, he can modify the password of other users. © Copyright Qvis® All documentation rights reserved.
Page 195 Figure 7-69 II. Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 7-70. Figure 7-70 © Copyright Qvis® All documentation rights reserved.
Page 196 PTZ control and etc. Figure 7-71 Modify group Click the modify group button, you can see an interface is shown as in Figure 7-72. Here you can modify group information such as remarks and rights. © Copyright Qvis® All documentation rights reserved.
Page 197 Figure 7-72 Display Display interface includes GUI, TV adjust, Tour and video matrix. I. GUI Here you can set background color and transparency level. See Figure 7-73. Figure 7-73 © Copyright Qvis® All documentation rights reserved.
Page 198 Check the box; you can optimize the margin of the preview video. Image enhance II. TV Adjust It is to set TV output region. See Figure 7-74. Figure 7-74 © Copyright Qvis® All documentation rights reserved.
Page 199 Here you can set window mode and channel group. System can Split support 1/4/8/9/16/25/36-window according to device channel amount. Here you can set motion detect tour/alarm tour window mode. Motion System supports 1/8-window now. tour/Alarm tour © Copyright Qvis® All documentation rights reserved.
Page 200 Here you can set video matrix output channel and interval. It supports 1/4/9/16 spot tour. Figure 7-76 Default The default setup interface is shown as in Figure 7-77. Here you can select Channel/Network/Event/Storage/System. Or you can check the All box to select all items. Figure 7-77 © Copyright Qvis® All documentation rights reserved.
Page 201 Here you can select auto reboot and auto delete old files interval from the dropdown list. If you want to use the auto delete old files function, you need to set the file period. Figure 7-79 © Copyright Qvis® All documentation rights reserved.
Page 202 *.bin. During the upgrade process, do not unplug the power cable, network cable, or shutdown the device. Important: Improper upgrade program may result in device malfunction! Figure 7-80 RS232 The RS232 interface is shown as in Figure 7-81. Figure 7-81 © Copyright Qvis® All documentation rights reserved.
Page 203 PTZ and decoder connection is right. Decoder address setup is right.  Decoder A (B) line connects with DVR A (B) line. Click Save button after you complete setup, you can go back to the monitor interface to control speed dome. Figure 7-82 © Copyright Qvis® All documentation rights reserved.
Page 204: Advanced
Overlay mode: There are two options: preview and encode. Preview means overlay the card number in the local monitor video. Encode means overlay the card number in the record file.  Overlay Position: Here you can select the proper overlay position from the dropdown list. © Copyright Qvis® All documentation rights reserved.
Page 205 Usually you do not need to set source port and target port. There are total four group IP. The record channel applies to one group (optional) only. Six frame ID groups verification can guarantee information validity and legal. © Copyright Qvis® All documentation rights reserved.
Page 206: Information
The version interface is shown as in Figure 7-86. Here you can view system hardware features, software version, release date and etc. Please note the following information is for reference only. Figure 7-86 © Copyright Qvis® All documentation rights reserved.
Page 207 You can click this button to delete all displayed log files. Please note system does not support clear by type. You can click this button to backup log files to current PC. Backup © Copyright Qvis® All documentation rights reserved.
Page 208: Search
You can click the date on the right pane to select the date. The green highlighted date is system current date and the blue highlighted date means it has record files. Figure 7-89 © Copyright Qvis® All documentation rights reserved.
Page 209 Select the file(s) you want to download and then click download button, system pops up a dialogue box shown as in Figure 7-91, then you can specify file name and path to download the file(s) to your local pc. Figure 7-91 © Copyright Qvis® All documentation rights reserved.
Page 210 See Figure 7-93. Please select file(s) from the list and then Click Start backup button. Please refer to chapter 7.8.1 IV. to set device download path. Figure 7-93 © Copyright Qvis® All documentation rights reserved.
Page 211: Alarm
Alarm Play alarm System sends out alarm sound when an alarm Sound sound occurs. You can specify as you wish. Sound path Here you can specify alarm sound file. © Copyright Qvis® All documentation rights reserved.
Page 212: Log Out
7.12 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un- installation might result in error. © Copyright Qvis® All documentation rights reserved.
Page 213: Faq
Brightness is set to 0. Please restore factory default setup.  There is no video input signal or it is too weak.  Check privacy mask setup or your screen saver.  DVR hardware malfunctions. © Copyright Qvis® All documentation rights reserved.
Page 214 9. There is audio when monitor but there is no audio when system playback. These are the possiblilities:  Setup is not correct. Please enable audio function  Corresponding channel has no video input. Playback is not continuous when the screen is blue. © Copyright Qvis® All documentation rights reserved.
Page 215  No dx8.1 or higher. Please upgrade display card driver.  Network connection error.  Network setup error.  Password or user name is invalid.  Client-end is not compatible with DVR program. © Copyright Qvis® All documentation rights reserved.
Page 216 Alarm setup is not correct.  Alarm output has been opened manually.  Input device error or connection is not correct.  Some program versions may have this problem. Please upgrade your system. © Copyright Qvis® All documentation rights reserved.
Page 217 These are the possiblilities:  Close extra stream record function.  Close snapshot function.  Reduce monitor channel amount of the WEB.  Close FTP upload function. © Copyright Qvis® All documentation rights reserved.
Page 218 Otherwise it may result in HDD malfunction.  Please make sure the device is away from the direct sunlight or other heating sources. Please keep the sound ventilation.  Please check and maintain the device regularly. © Copyright Qvis® All documentation rights reserved.
Page 219: Appendix A Hdd Capacity Calculation
Step 4: According to Formula (4) to calculate total capacity (accumulation) that is needed for all channels in DVR during alarm video recording (including motion detection).   ×a%  In the formula：a% means alarm occurrence rate © Copyright Qvis® All documentation rights reserved.
Page 220: Appendix B Compatible Backup Device List
256M Teclast Ti Cool 512M Teclast Ti Cool SanDisk cruzer mirco SanDisk cruzer mirco SanDisk Ti Cool SanDisk Hongjiao Lexar Lexar 256MB Kingston Data Traveler Kingston Data Traveler 16GB Kingston Data Traveler 32GB © Copyright Qvis® All documentation rights reserved.
Page 221 U228 Compatible SD Card List Please refer to the following sheet for compatible SD card brand. Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Micro-SD Sandisk Micro-SD © Copyright Qvis® All documentation rights reserved.
Page 222 ST31000322CS SATA Seagate Seagate Pipeline ST1000VM002 SATA Seagate Seagate Pipeline ST1500VM002 SATA Seagate Seagate Pipeline ST2000VM002 SATA Seagate Seagate Pipeline ST2000VM003 SATA Seagate Seagate ST3500514NS 500G SATA Constellation ES Seagate Seagate ST31000524NS SATA © Copyright Qvis® All documentation rights reserved.
Page 223 WD2500YS-01SHB0 250G SATA Digital Westem WD Caviar RE16 WD3200YS-01PGB0 320G SATA Digital Westem WD Caviar RE2 WD5000YS-01MPB0 500G SATA Digital Westem WD AV—AVJS WD2500AVJS-63WDA0 500G SATA Digital Westem WD AV—AVJS WD3200AVJS-63WDA0 320G SATA © Copyright Qvis® All documentation rights reserved.
Page 224 WD500AVDS 500G SATA Digital Westem WD AV-GP WD10EUCX SATA Digital Samsung Samsung—HA HA500LJ/CE 500G SATA Samsung Samsung—HA HA751LJ 750G SATA Samsung Samsung—HA HA101UJ/CE SATA Samsung Samsung—HD HD502HI/CEC 500G SATA Samsung Samsung—HD HD103SI/CEC SATA © Copyright Qvis® All documentation rights reserved.
Page 225 HCP725050GLA380 500G SATA 5K500 HitachiCinemaStar™ Hitachi HCT721050SLA360 500G SATA 7K1000.B HitachiCinemaStar™ Hitachi HCT721075SLA360 750G SATA 7K1000.B HitachiCinemaStar™ Hitachi HCT721010SLA360 SATA 7K1000.B Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA © Copyright Qvis® All documentation rights reserved.
Page 226: Appendix H Toxic Or Hazardous Materials Or Elements
All trademarks and registered trademarks mentioned are the properties of their respective owners.  If there is any uncertainty or controversy, please refer to the final explanation of us.  Please visit our website or contact your local retailer for more information. © Copyright Qvis® All documentation rights reserved.
Page 227 Alternatively scan this QR code with your smart phone to be directed instantly to our website: Download our mobile apps to remotely operate your DVR on the move: iPhone iPad Android Android Tablet © Copyright Qvis® All documentation rights reserved.

This manual is also suitable for:

Iapollo prolite Iapollo prodc

Qvis IAPOLLO HDRT HD User Manual

1 Features and Specifications

2 Overview and Controls

3 Installation and Connections

4 Overview of Navigation and Controls

5 Understanding of Menu Operations and Controls

6 About Auxiliary Menu

7 Web Operation

8 Faq

Appendix A Hdd Capacity Calculation

Appendix B Compatible Backup Device List

Appendix H Toxic or Hazardous Materials or Elements

Quick Links

iapollo prodc

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qvis IAPOLLO HDRT HD

Summary of Contents for Qvis IAPOLLO HDRT HD

This manual is also suitable for:

Table of Contents
