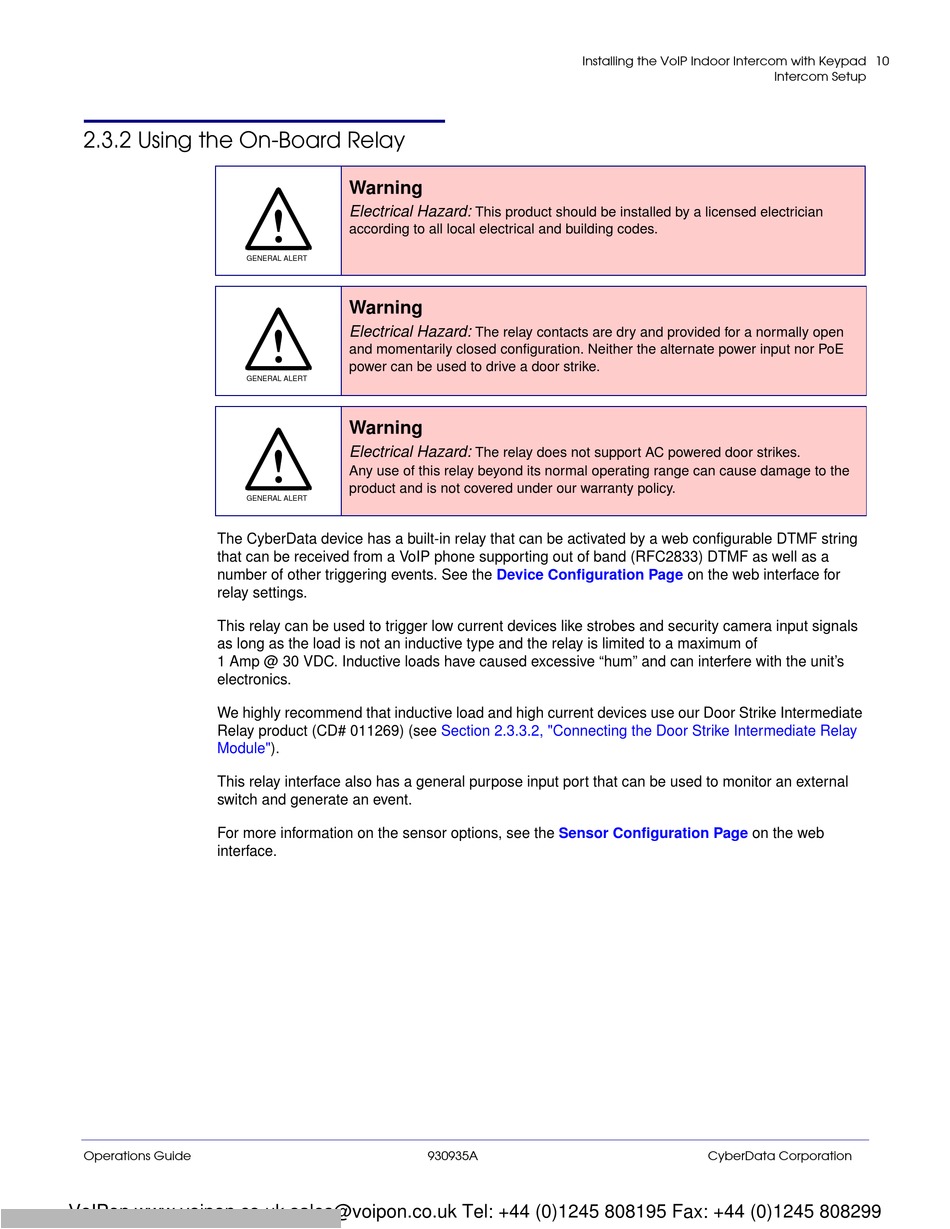

2.3.2 Using the On-Board Relay

GENERAL ALERT
GENERAL ALERT
GENERAL ALERT
The CyberData device has a built-in relay that can be activated by a web configurable DTMF string
that can be received from a VoIP phone supporting out of band (RFC2833) DTMF as well as a
number of other triggering events. See the
relay settings.
This relay can be used to trigger low current devices like strobes and security camera input signals
as long as the load is not an inductive type and the relay is limited to a maximum of 
1 Amp @ 30 VDC. Inductive loads have caused excessive "hum" and can interfere with the unit's
electronics.
We highly recommend that inductive load and high current devices use our Door Strike Intermediate
Relay product (CD# 011269) (see
Module").
This relay interface also has a general purpose input port that can be used to monitor an external
switch and generate an event.
For more information on the sensor options, see the
interface.
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Warning
Electrical Hazard:
This product should be installed by a licensed electrician
according to all local electrical and building codes.
Warning
Electrical Hazard:
The relay contacts are dry and provided for a normally open
and momentarily closed configuration. Neither the alternate power input nor PoE
power can be used to drive a door strike.
Warning
Electrical Hazard:
The relay does not support AC powered door strikes.
Any use of this relay beyond its normal operating range can cause damage to the
product and is not covered under our warranty policy.
Device Configuration Page
Section 2.3.3.2, "Connecting the Door Strike Intermediate Relay
930935A
Installing the VoIP Indoor Intercom with Keypad
on the web interface for
Sensor Configuration Page
CyberData Corporation
10
Intercom Setup
on the web
