CyberData 011307 Operation Manual page 44

Web Page Item
Allow Telephone Dialout
Call Button
ID
Security Code (0 through 9)
Misc Settings
Play Button Tone
Note
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

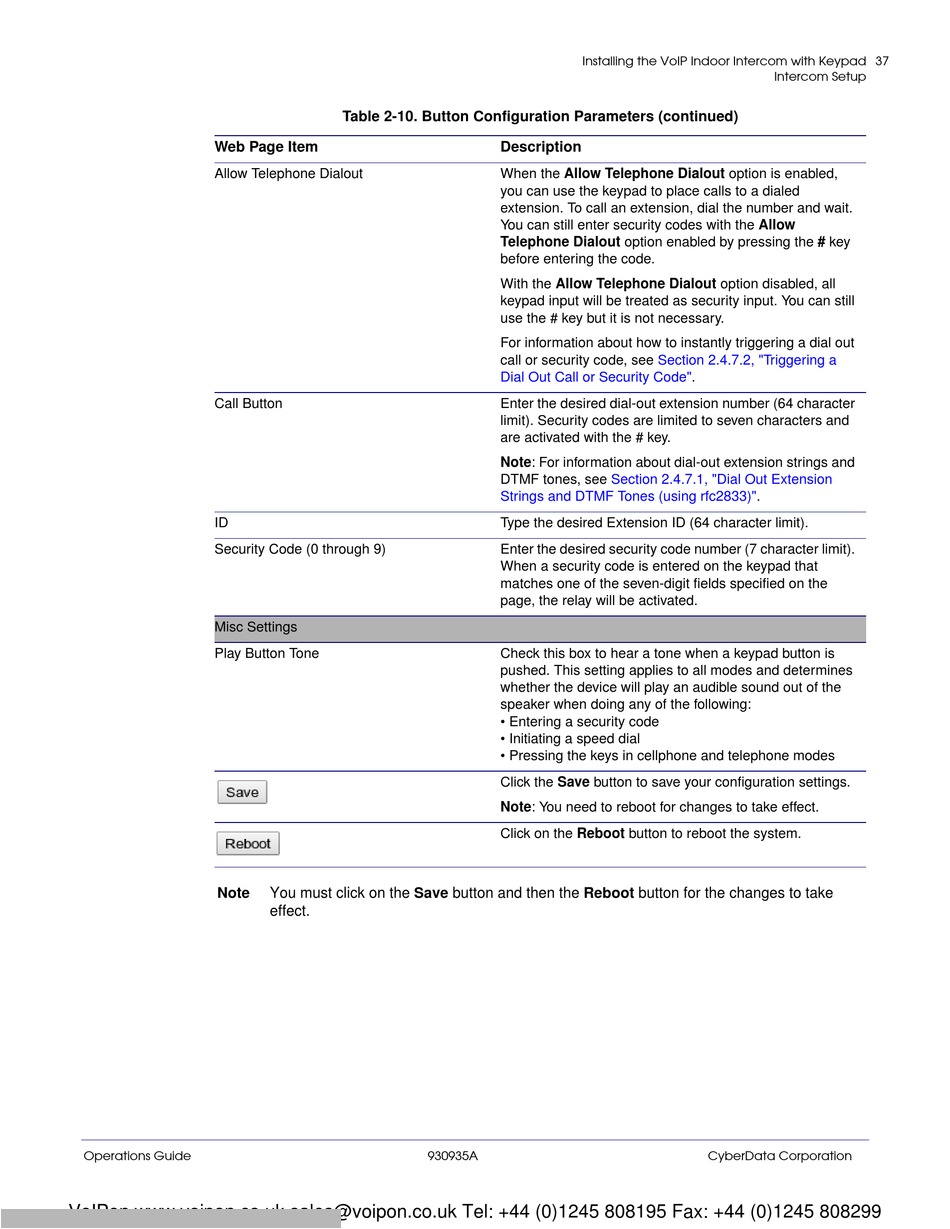

Table 2-10. Button Configuration Parameters (continued)
You must click on the Save button and then the Reboot button for the changes to take
effect.
930935A
Installing the VoIP Indoor Intercom with Keypad
Description
When the Allow Telephone Dialout option is enabled,
you can use the keypad to place calls to a dialed
extension. To call an extension, dial the number and wait.
You can still enter security codes with the Allow
Telephone Dialout option enabled by pressing the # key
before entering the code.
With the Allow Telephone Dialout option disabled, all
keypad input will be treated as security input. You can still
use the # key but it is not necessary.
For information about how to instantly triggering a dial out
call or security code, see Section 2.4.7.2, "Triggering a
Dial Out Call or Security Code".
Enter the desired dial-out extension number (64 character
limit). Security codes are limited to seven characters and
are activated with the # key.
Note: For information about dial-out extension strings and
DTMF tones, see Section 2.4.7.1, "Dial Out Extension
Strings and DTMF Tones (using
Type the desired Extension ID (64 character limit).
Enter the desired security code number (7 character limit).
When a security code is entered on the keypad that
matches one of the seven-digit fields specified on the
page, the relay will be activated.
Check this box to hear a tone when a keypad button is
pushed. This setting applies to all modes and determines
whether the device will play an audible sound out of the
speaker when doing any of the following: 
• Entering a security code
• Initiating a speed dial
• Pressing the keys in cellphone and telephone modes
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
37
Intercom Setup
rfc2833)".
CyberData Corporation
