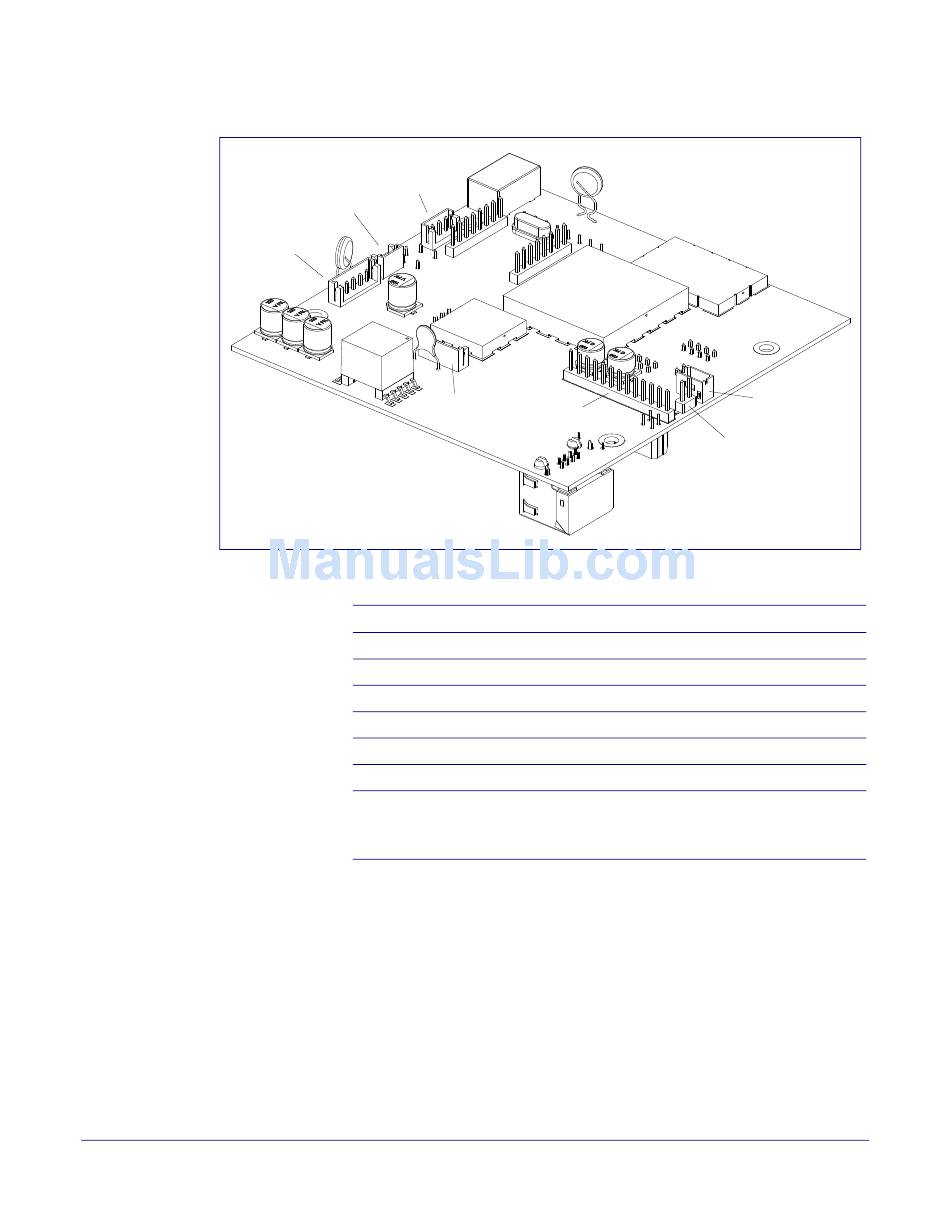

Figure 2-10. Connector Locations
J7 J6
J9
Connector
J2
J6
J7
J8
J9
J10
JP10
930935A
Installing the VoIP Indoor Intercom with Keypad
J2 J8
Table 2-3. Connector Functions
Function
Call Button LED Interface
Microphone Interface
Speaker Interface
Keypad Interface
Auxiliary Strobe Connector — Not Used
Proximity Sensor Interface — Not Used
Disables the intrusion sensor when installed.
Note: Placing a jumper on JP10 will disable the intrusion
detection circuit.
Intercom Setup
J10
JP10
