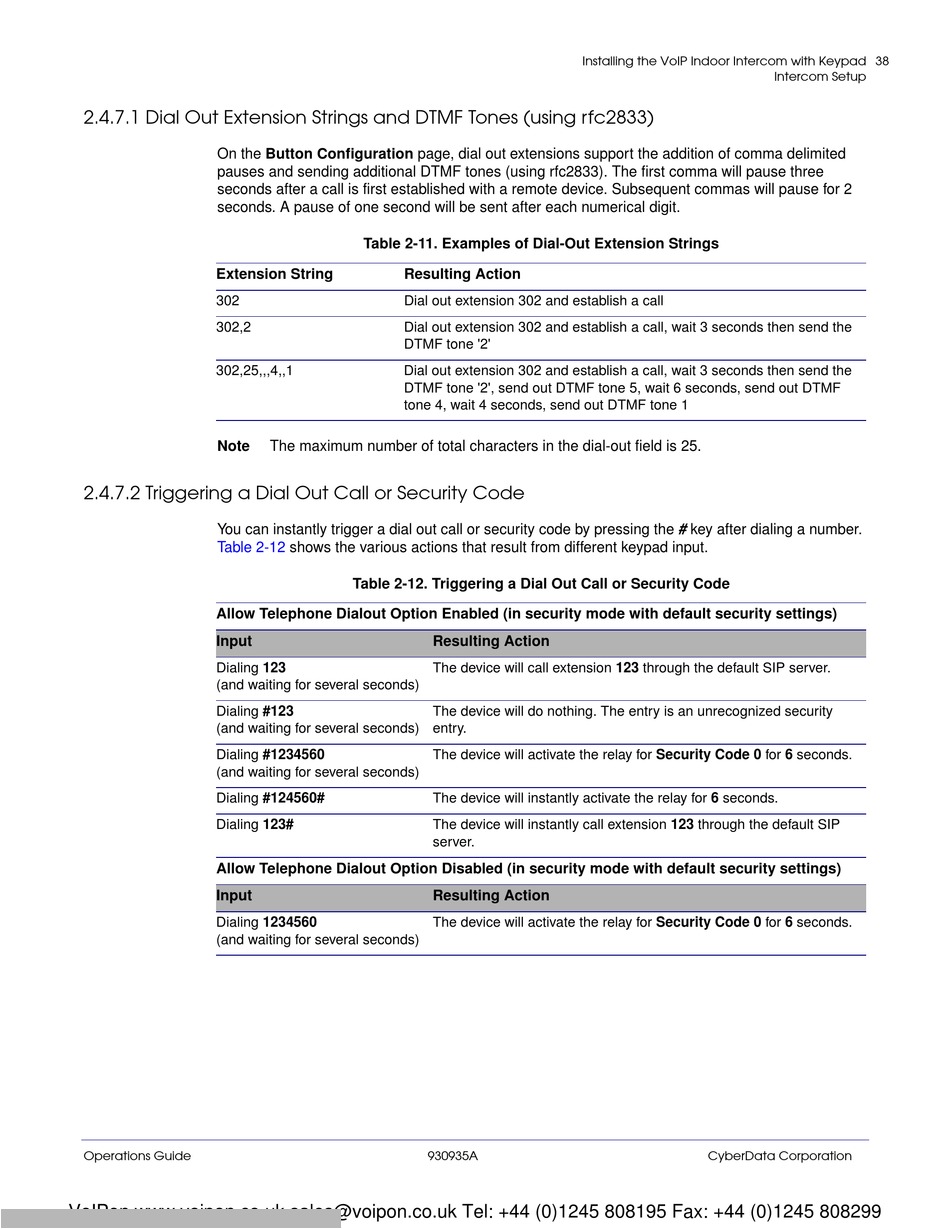

2.4.7.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)
On the Button Configuration page, dial out extensions support the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.
Extension String
302
302,2
302,25,,,4,,1
Note
2.4.7.2 Triggering a Dial Out Call or Security Code
You can instantly trigger a dial out call or security code by pressing the # key after dialing a number.
Table 2-12
Allow Telephone Dialout Option Enabled (in security mode with default security settings)
Input
Dialing 123 
(and waiting for several seconds)
Dialing #123 
(and waiting for several seconds)
Dialing #1234560 
(and waiting for several seconds)
Dialing #124560#
Dialing 123#
Allow Telephone Dialout Option Disabled (in security mode with default security settings)
Input
Dialing 1234560 
(and waiting for several seconds)
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Table 2-11. Examples of Dial-Out Extension Strings
Resulting Action
Dial out extension 302 and establish a call
Dial out extension 302 and establish a call, wait 3 seconds then send the
DTMF tone '2'
Dial out extension 302 and establish a call, wait 3 seconds then send the
DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1
The maximum number of total characters in the dial-out field is 25.
shows the various actions that result from different keypad input.
Table 2-12. Triggering a Dial Out Call or Security Code
Resulting Action
The device will call extension 123 through the default SIP server.
The device will do nothing. The entry is an unrecognized security
entry.
The device will activate the relay for Security Code 0 for 6 seconds.
The device will instantly activate the relay for 6 seconds.
The device will instantly call extension 123 through the default SIP
server.
Resulting Action
The device will activate the relay for Security Code 0 for 6 seconds.
