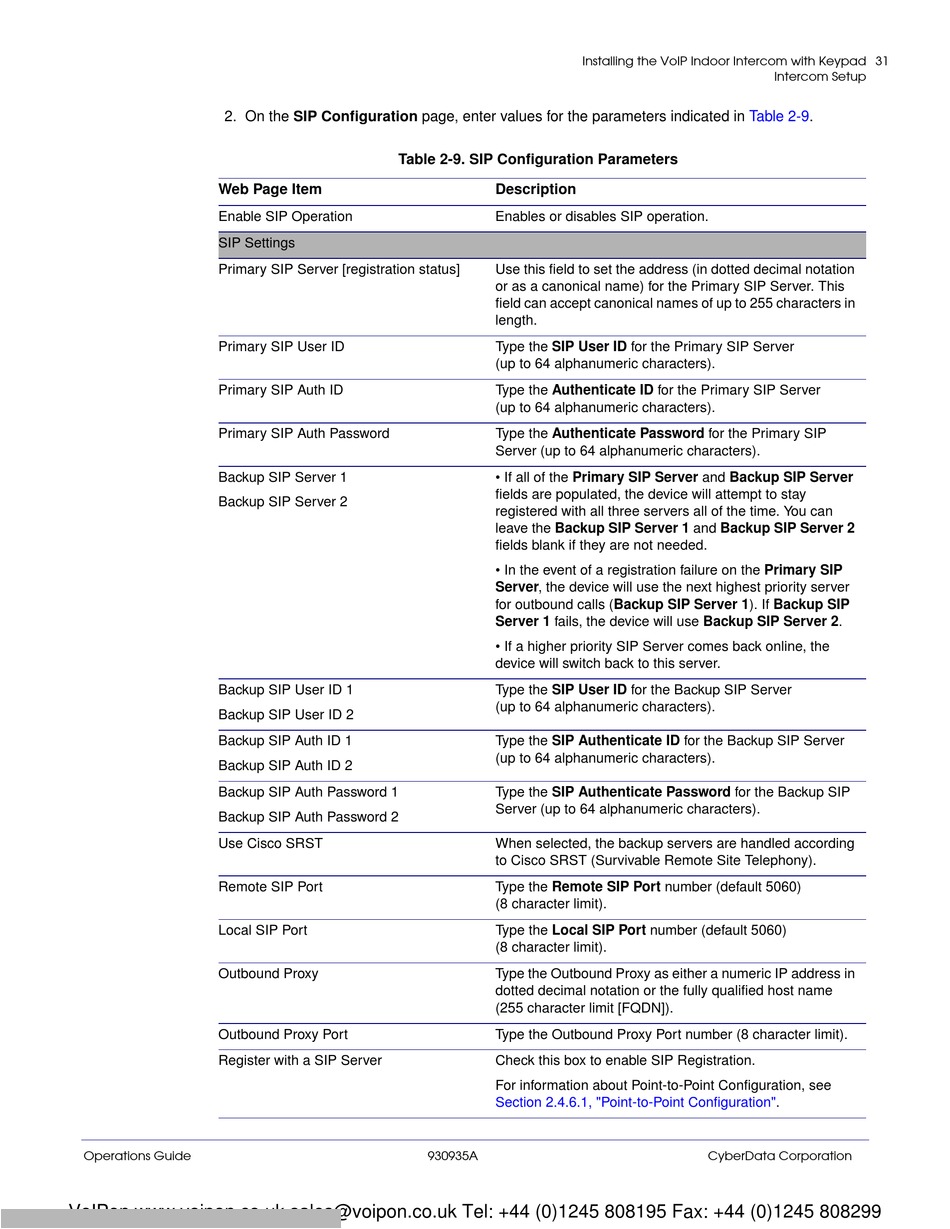

CyberData 011307 Operation Manual page 38

2. On the SIP Configuration page, enter values for the parameters indicated in
Web Page Item
Enable SIP Operation
SIP Settings
Primary SIP Server [registration status]
Primary SIP User ID
Primary SIP Auth ID
Primary SIP Auth Password
Backup SIP Server 1
Backup SIP Server 2
Backup SIP User ID 1
Backup SIP User ID 2
Backup SIP Auth ID 1
Backup SIP Auth ID 2
Backup SIP Auth Password 1
Backup SIP Auth Password 2
Use Cisco SRST
Remote SIP Port
Local SIP Port
Outbound Proxy
Outbound Proxy Port
Register with a SIP Server
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Table 2-9. SIP Configuration Parameters
Description
Enables or disables SIP operation.
Use this field to set the address (in dotted decimal notation
or as a canonical name) for the Primary SIP Server. This
field can accept canonical names of up to 255 characters in
length.
Type the SIP User ID for the Primary SIP Server 
(up to 64 alphanumeric characters).
Type the Authenticate ID for the Primary SIP Server
(up to 64 alphanumeric characters).
Type the Authenticate Password for the Primary SIP
Server (up to 64 alphanumeric characters).
• If all of the Primary SIP Server and Backup SIP Server
fields are populated, the device will attempt to stay
registered with all three servers all of the time. You can
leave the Backup SIP Server 1 and Backup SIP Server 2
fields blank if they are not needed.
• In the event of a registration failure on the Primary SIP
Server, the device will use the next highest priority server
for outbound calls (Backup SIP Server 1). If Backup SIP
Server 1 fails, the device will use Backup SIP Server 2.
• If a higher priority SIP Server comes back online, the
device will switch back to this server.
Type the SIP User ID for the Backup SIP Server 
(up to 64 alphanumeric characters).
Type the SIP Authenticate ID for the Backup SIP Server 
(up to 64 alphanumeric characters).
Type the SIP Authenticate Password for the Backup SIP
Server (up to 64 alphanumeric characters).
When selected, the backup servers are handled according
to Cisco SRST (Survivable Remote Site Telephony).
Type the Remote SIP Port number (default 5060) 
(8 character limit).
Type the Local SIP Port number (default 5060) 
(8 character limit).
Type the Outbound Proxy as either a numeric IP address in
dotted decimal notation or the fully qualified host name 
(255 character limit [FQDN]).
Type the Outbound Proxy Port number (8 character limit).
Check this box to enable SIP Registration.
For information about Point-to-Point Configuration, see
Section 2.4.6.1, "Point-to-Point
930935A
Installing the VoIP Indoor Intercom with Keypad
Table
Configuration".
