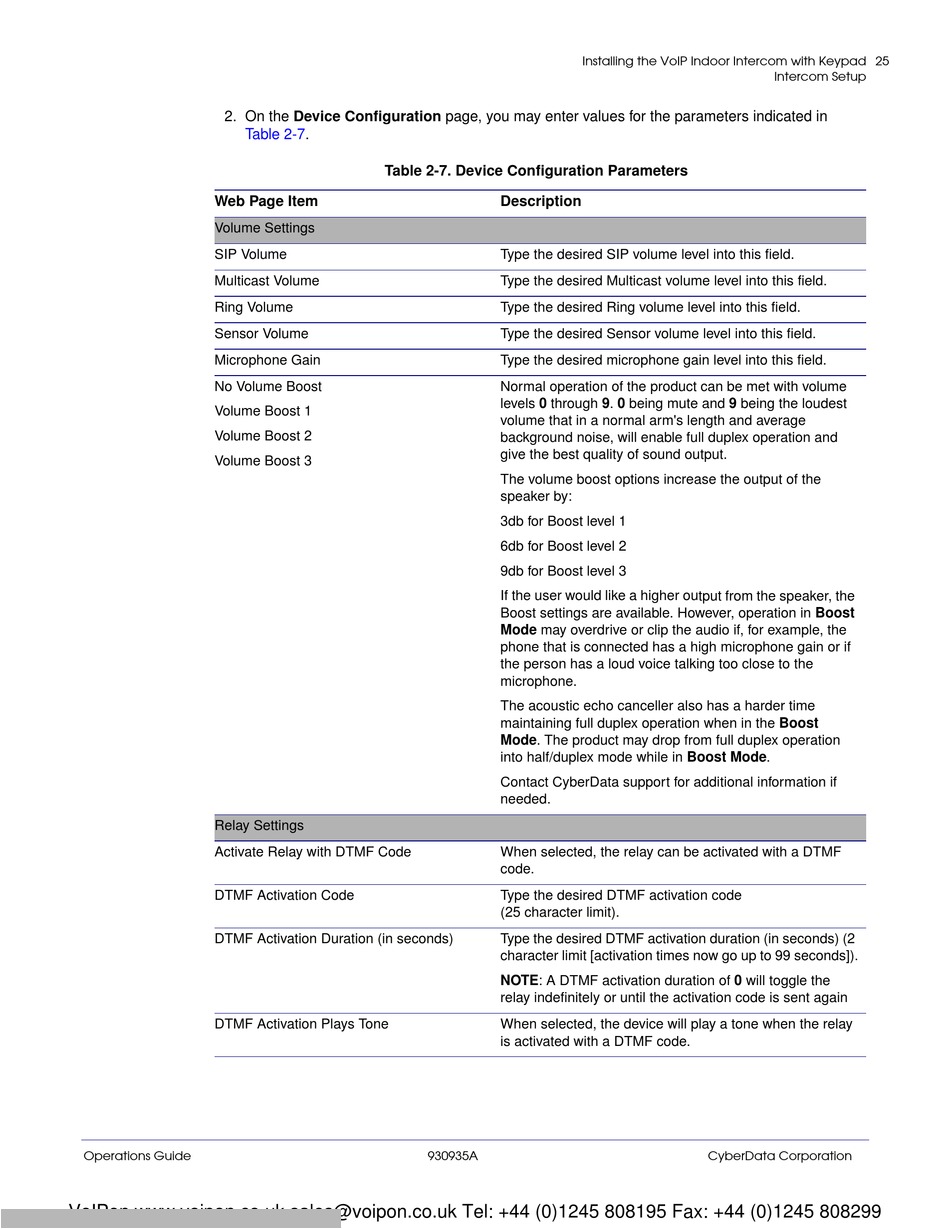

CyberData 011307 Operation Manual page 32

2. On the Device Configuration page, you may enter values for the parameters indicated in
Table
Web Page Item
Volume Settings
SIP Volume
Multicast Volume
Ring Volume
Sensor Volume
Microphone Gain
No Volume Boost
Volume Boost 1
Volume Boost 2
Volume Boost 3
Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
DTMF Activation Plays Tone
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
2-7.
Table 2-7. Device Configuration Parameters
930935A
Installing the VoIP Indoor Intercom with Keypad
Description
Type the desired SIP volume level into this field.
Type the desired Multicast volume level into this field.
Type the desired Ring volume level into this field.
Type the desired Sensor volume level into this field.
Type the desired microphone gain level into this field.
Normal operation of the product can be met with volume
levels 0 through 9. 0 being mute and 9 being the loudest
volume that in a normal arm's length and average
background noise, will enable full duplex operation and
give the best quality of sound output.
The volume boost options increase the output of the
speaker by:
3db for Boost level 1
6db for Boost level 2
9db for Boost level 3
If the user would like a higher output from the speaker, the
Boost settings are available. However, operation in Boost
Mode may overdrive or clip the audio if, for example, the
phone that is connected has a high microphone gain or if
the person has a loud voice talking too close to the
microphone.
The acoustic echo canceller also has a harder time
maintaining full duplex operation when in the Boost
Mode. The product may drop from full duplex operation
into half/duplex mode while in Boost Mode.
Contact CyberData support for additional information if
needed.
When selected, the relay can be activated with a DTMF
code.
Type the desired DTMF activation code 
(25 character limit).
Type the desired DTMF activation duration (in seconds) (2
character limit [activation times now go up to 99 seconds]).
NOTE: A DTMF activation duration of 0 will toggle the
relay indefinitely or until the activation code is sent again
When selected, the device will play a tone when the relay
is activated with a DTMF code.
