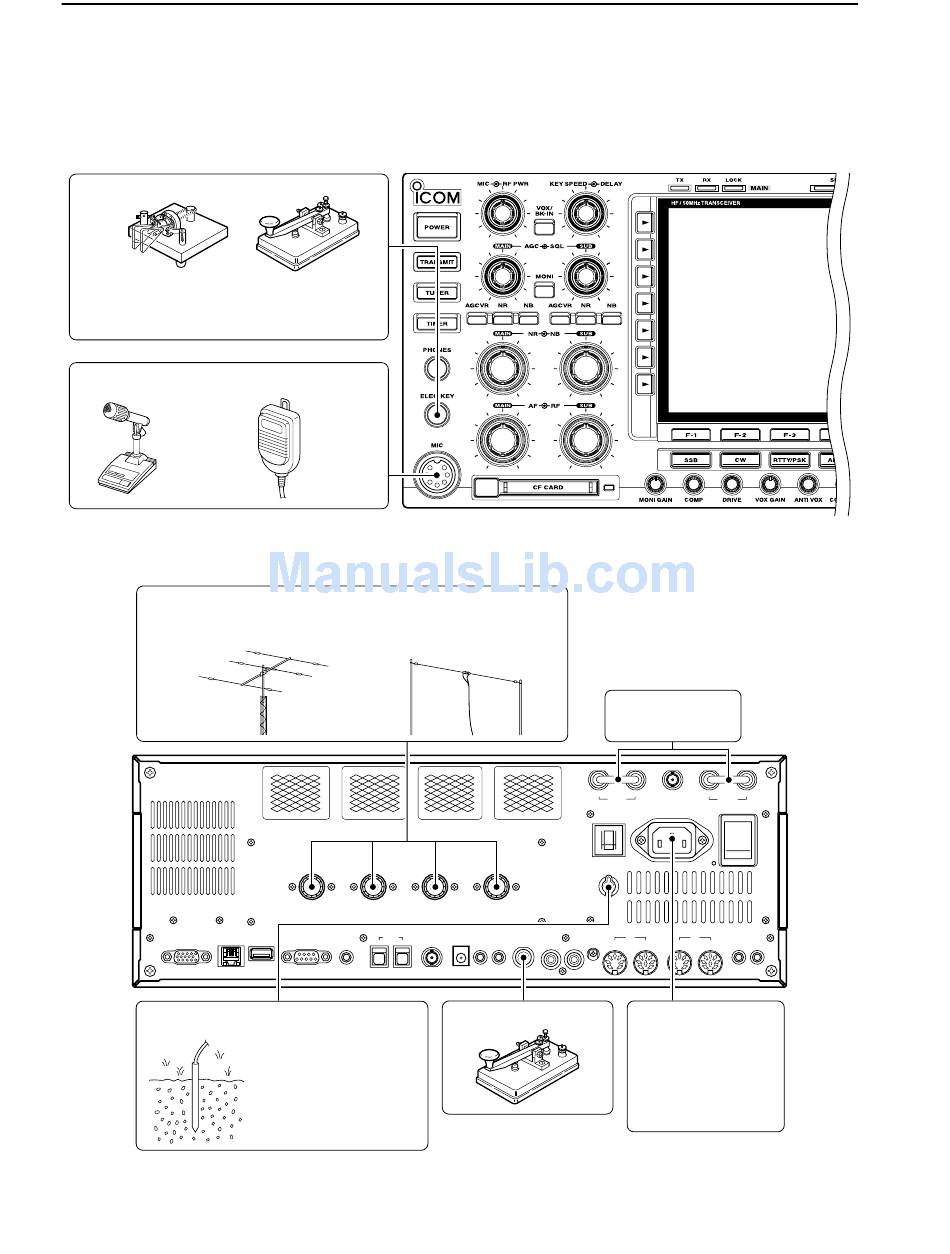

INSTALLATION AND CONNECTIONS
■ Required connections
D Front panel
CW key
A straight key can be used when the
internal electronic keyer is turned OFF in
keyer set mode. (p. 4-12)
Microphones (p. 2-9)
Optional
SM-20
D Rear panel
Antenna 1, 2, 3, 4 (p. 2-3)
[Example]: ANT1 for 1.8–18 MHz bands, ANT 2 for 21–28 bands
ANT3 for 50 MHz band, ANT 4 for receive antenna
EXT-DISPLAY
Ground
(p. 2-3)
Optional
HM-36
ANT 1
ANT 2
REF I/O
S/P DIF
10MHz
KEY BOARD
RS-232C
REMOTE
OUT
IN
-10dBm
Use the heaviest gauge
wire or strap available and
make the connection as
short as possible.
Grounding prevents elec-
trical shocks, TVI and oth-
er problems.
OUT
ANT 3
ANT 4
GND
DC OUT
EXT
ALC
15V
MAX1A
METER
KEYPAD
KEY
RELAY
ALC
ADJ
Straight key
2-4
A jumper cable is
connected.
IN
X-VERTER
OUT
IN
RX ANT
RX ANT
B
A
I
AC
B
A
EXT - SP
ACC 2
ACC 1
ACC 2
ACC 1
SUB
MAIN
AC outlet
R WARNING:
Use the supplied
AC power cable
only.
