25
Main gear 2
Pos. Description
1
Parts from STEP24
2
Parts from STEP23
3
One way sleeve
4
Nylock nut M4
5
Cap socket bolt M4x30
6
Set screw M4x4

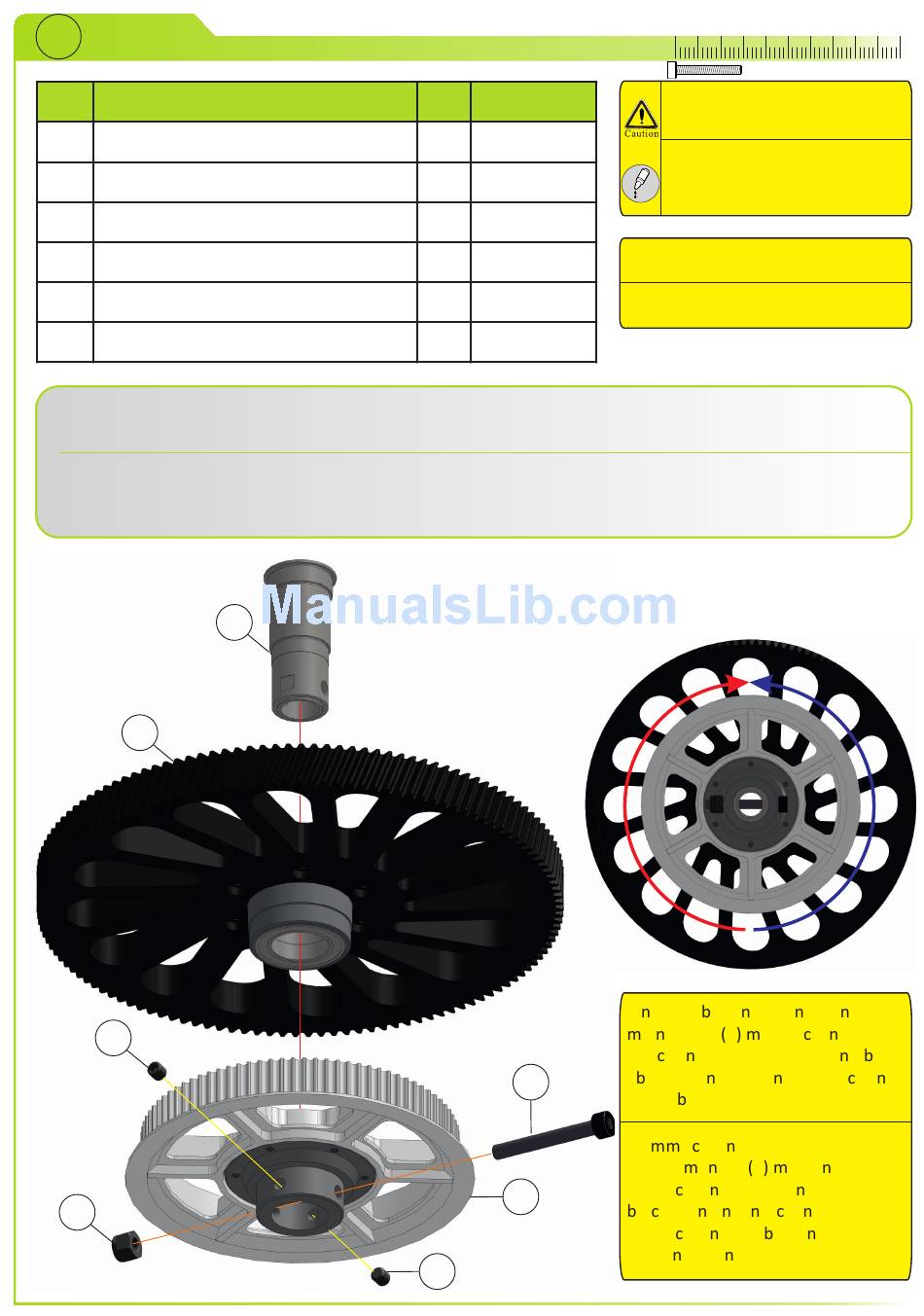

Slide one way sleeve (3) through autorotation hub and main pulley hub. Slide bolt (5) through holes of main pulley
hub and one way sleeve and attach nylock nut.
Tighten Set screws (6) gently!
Führen Sie die Freilaufhülse (3) durch die Freilaufnabe und die Nabe des Riemenrads. Schieben Sie nun die Schraube (5)
durch das Loch der Riemenradnabe und in der Freilaufhülse.
späteren Zeitpunkt angezogen.
Ziehen Sie die Gewindestifte (6) vorsichtig an!
1
6
4
Do not tighten the bolt at this time.
3
Qty.
Part number
1
1
1
09-7103
1
91-0004
1
80-0430
2
81-0404
Setzen Sie die Stoppmutter nur an. Sie wird zu einem
5
2
6
10
20
Use medium threadlock on all
screws threaded into metal
parts.
Verwenden Sie auf allen
Schrauben die in Metallteile
geschraubt werden mittelfeste
Schraubensicherung.
Preassembled at factory.
Bereits vormontiert.
O e‐way eari g orie tatio : The
ai pulley 2
ust lo k i the
dire tio of the red arrow a d e
a le to spi freely i the dire tio
of the lue arrow.
Kle
ri htu g des Freilauflagers:
Das Rie e rad 2
uss i
Drehri htu g des rote Pfeiles
lo kiere u d i si h i
Drehri htu g des laue Pfeiles frei
drehe lasse .
