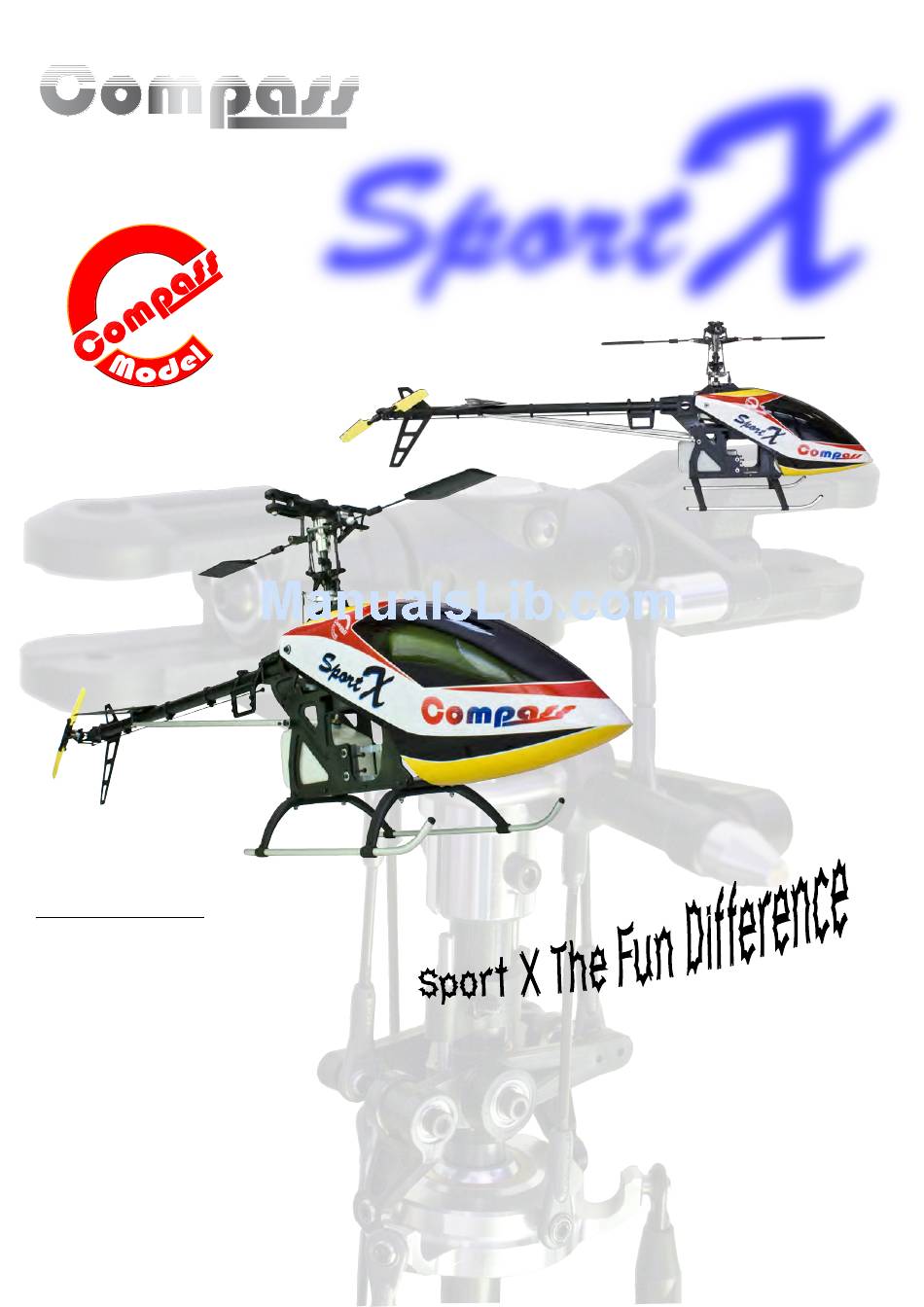

Compass Model SPORT X Assembly Manual

Hide thumbs Also See for SPORT X:

Advertisement

Quick Links

Compass Features :
-Precision 120° ECCPM swash plate
-Wear resistant parts
-Low parts count
-Simple maintenance with easy access
-80% preassembled kit
With features like, painted fiber canopy, Anti rotation guide, Aluminum hub, metal swash
plate the Sport X not only looks great but is a cheap way.
As we continue to improve our products; this manual may not reflect all recent product amendments.
For more information, please refer to www.compassmodel.com
Sport
Copyright Compass Model 2008
X
Assembly Manual
Version 1.0
Created : 06/24/2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPORT X and is the answer not in the manual?

Questions and answers

Summary of Contents for Compass Model SPORT X

  • Page 1 -80% preassembled kit With features like, painted fiber canopy, Anti rotation guide, Aluminum hub, metal swash plate the Sport X not only looks great but is a cheap way. Copyright Compass Model 2008 As we continue to improve our products; this manual may not reflect all recent product amendments.
  • Page 2: Ama Information

    Introduction Thank you for choosing the Sport X and welcome to Compass Model. The Sport X has been designed to offer outstanding performance. Same as other compass products, Sport X is powerful, stable, agile as well as accurate. The frame layout has been designed to create an extraordinarily rigid platform which is both durable and further improved control accuracy.
  • Page 3: R/C Helicopter Safety

    Warranty Procedures / If service is required, send the component in question (if not missing) together with a photocopy of your bill of sale and an accurate description of the problem and part. Ship components fully insured and prepaid. Compass Model is not responsible for any shipping damages.
  • Page 4: Necessary Items

    Necessary items A R C Heli Model used Radio, 5 servos and 1 Gyro is needed. 50 s i ze M u f f l e r 5 0 s iz e En g in e Length 600mm Ho l e D i a m e t e r 4 m m T h i ck n e s s 1 2 m m...
  • Page 5 Standard Equipment This model is packed according to assembling steps. Do not open all the bags at one ttime. Open only one bag for each step 。 , of assembly when building. 。 Canopy Long items Frame Set Rotor Head Step 1 Step 2 Step 3...
  • Page 6 L an di n g Gea r / M3 Nylon Lock Nut M3x5 Set Screw X 4 M3x18 Cap Head Bolt 3mm Washer X 4 M3x18 Cap Head Bolt Use AB Glue Struts M3x5 Set Screw S k i d C a p M3 Nylon Nut 3mm Washer Skid...
  • Page 7 Ro to r ,W asho ut & Swashp late/ M3x10 S et Sc rew M3x4 Set Screw x2 M3x10 Set Screw x2 Fly bar Weigh t M3 Nut x1 M3x22 Cap Head M3x 4 Set Screw Bolt x1 M3x22 Cap Head Paddle Bolt x1 M3 Nyl on Nut...
  • Page 8 Fr o nt S r vo Mo u n t / M3x10 Self tapping bolt M3x16 Self tapping bolt Battery Tray M3x16 Self tapping bolt a).M3x16 Self tapping bolts to fix the Battery Tray on the body M3x16 Front Servo Mount M3x10 Self tapping bolt b).M3x10 Self tapping bolts to fix the Front Servo Mount on the body M3x10...
  • Page 9 Engine / Note: Apply special engine tool when fixing Fan Hub on he engine.And make sure Fan Hub Set is Firmly tightened on the Engine. M3 Washer x4 M3x12Cap Head Bolt Clutch M3x12 Cap Head Bolt e x Wr en ch Nut from Engine M3x16 Cap Head Bolt Pre Assembled inFactory...
  • Page 10 T a i l / Crimping belt damages the tensile cords and will result in premature failure. M3 Washer x4 Vertical Fin Mount T ai l S e t M3 Nylon Lock Nut M3x30 Cap Head Bolt M3 Nylon Nut Use AB Glue M2.5x6 Cap Head Bolt Blue Threadlock...
  • Page 11 SE R VO / M2.5x16 Self tapping bolt x20 M2.5x16 Self tapping bolt 2.5mm Washer Boom Rudder Servo 2 5mm Washer All control balls should to set at 13.5mm to the center of the servo horn 1 3 . 5...
  • Page 12 Eq ui p men t ill ustr ati on / G yr o Elevator Servo Pitch Servo Rece iver Rudder Servo Aileron Servo Battery Throttle Throttle Gyro Regulator Receiver Battery...
  • Page 13 Ph a si ng Se t t in g / Main Grip Phasing Control Ring Washout Arm Boom Main Grip Washout Arm P a r a l l e l t o t h e b o o m Boom Phasing Control Ring Get the right phasing adjustment by turning the phasing control ring until the Washout Arms and Main Grips both parallel to the Boom...
  • Page 14 E le ct r on i c S e t up / P itch Th rot tle Cu rve General Flight 100% Throttle Pitch 10 deg 100% 4~5deg -4deg T hro ttl e C urv e 3D Style 3D 100% Throttle Pitch 100% 10deg...
  • Page 15 Li n ka ge / The following linkage lengths indications are basic values which could vary depend on used servos. Some fine adjustments are still needed in following setup steps. Pl ease cut mm from ea ch ball links. 4.5mm If you find the Ball links are too tight suggest use a Ball link sizing tool.
  • Page 16 C) Adjust the link from the servo arms to the swash plate to level the swash plate. Use a compass swash Plate Tool as guide. 。 Washout Arm 。 Horizontal SwashPlate D) Set Washout Arms level. 。 Horizontal 06-0501 Swash Plate E)Mixing Arm is set 3deg down to the flybar.
  • Page 17 S et up / Parallel Parallel Leav e About 0.1 mm Play be twee n t h e flyb ar collar a nd the fly bar h o l d e r . This c ould redu ce the cha nce t o s n a p the fl ybar when flying.
  • Page 18 S er vo Dir ecti on Ch eck/ Turn on t he ra dio, po sit ion the he l i t ail p o i n t t o y o u r s e l f . M a k e s u r e r a d i o is set to 12 0 degree ccp m mo de.
  • Page 19 Install the Canopy onto t he helicopter . R o to r Dir ect ion / When main blades turn clockwise, tail blades should turn clockwise when view from the tail fin side. If not belt is installed incorrectly.
  • Page 20 7. Make sure all electronic devices are firmly fastened and connected. 8. Before starting the motor, make sure the IDLE switch is OFF and throttle stick is in the low position. 9. Only turn off the transmisser after turning off the receiver. Compass Model (Hong Kong Ltd) www.compassmodel.com...
