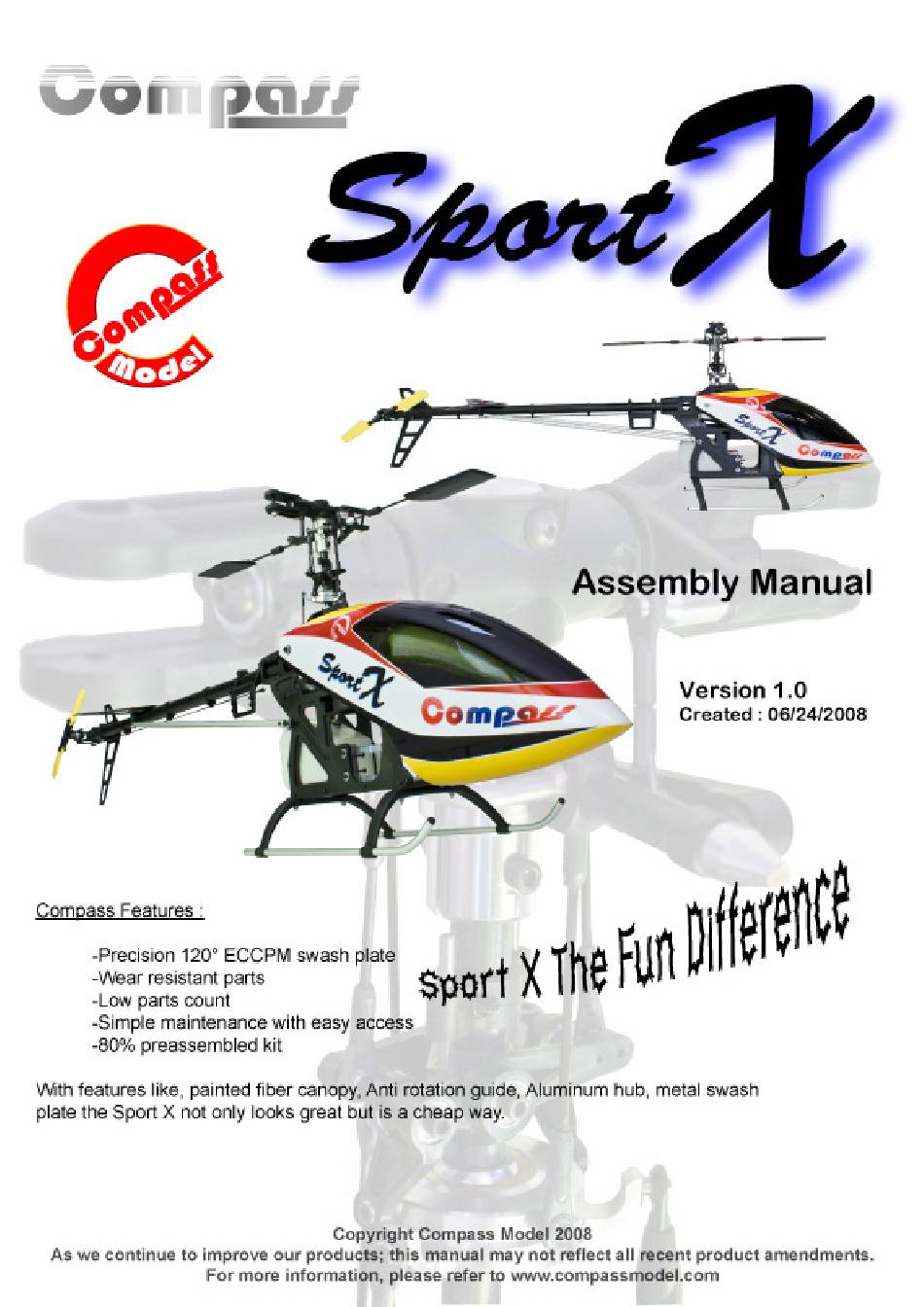

Compass Model Sport X Assembly Manual

Hide thumbs Also See for Sport X:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sport X and is the answer not in the manual?

Questions and answers

Related Manuals for Compass Model Sport X

Summary of Contents for Compass Model Sport X

  • Page 2: Ama Information

    Introduction Thank you for choosing the Sport X and welcome to Compass Model. The Sport X has been designed to offer outstanding performance. Same as other compass products, Sport X is powerful, stable, agile as well as accurate. The frame layout has been designed to create an extraordinarily rigid platform which is both durable and further improved control accuracy.

  • Page 3: Guidelines For Safe R/C Helicopter Flight

    Guidelines for Safe R/C Helicopter Flight • Fly only at approved flying fields and obey field regulations. • Follow frequency control procedures. Interference can be dangerous to all. • Obtain assistance from experienced pilots. • The Guidance provided by experienced pilots is valuable and sometimes necessary. •...

  • Page 4: Preassembly Information

    However, occasional mistakes happen. In the event that you find a parts shortage or are in need of technical assistance, please contact your local Compass Model parts dealer. In the box This model is packed according to assembling steps.
  • Page 5 Landing Gear M3 Nylon Lock Nut x4 M3x5 Set Screw X 4 M3x18 Cap Head Bolt x4 M3x18 Cap Head Bolt 3mm Washer X 4 Use AB Glue Struts M3x5 Set Screw Skid Cap M3 Nylon Nut 3mm Washer Skid Main Gear Main Shaft M3 Nylon Lock Nut x1...
  • Page 6 Rotor,Washout & Swashplate M3x4 Set Screw x4 M3x10 Set Screw x2 M4x4 M4x4 Set Screw x2 Set Screw In this step, push the Flybar through the Flybar Collar, Flybar Holder, and Flybar Control Arm. Using set screws, M3 Nylon Nut x1 fix the Arms and Collars onto the Flybar.
  • Page 7 Front Servo Mount M3x10 Self Tapping Bolt x4 M3x16 Self Tapping Bolt x6 Battery Tray M3x16 Self tapping bolt Front Servo Mount M3x10 Self Tapping Bolt...
  • Page 8 Engine Note: Apply special engine tool when fixing Fan Hub on the engine. And make sure Fan Hub Set is M3 Washer x4 Firmly tightened on the Engine. M3x12 Cap Head Bolt x2 M3x12 Cap Head Bolt Clutch Hex Wrench M3x16 Cap Head Bolt x8 Engine Nut Factory Pre...
  • Page 9 Tail Crimping Belt damages the Tensile Cords and will result in premature failure. M3 Washer x4 M3 Nylon Lock Nut x8 M2.5x6 Cap Head Bolt x2 M3 Nylon Nut M3x30 Cap Head Bolt M3x30 Cap Horizontal Fin M3x25 Cap Head Bolt x4 Head Bolt M3 Washer M3x35 Cap Head Bolt x2...
  • Page 10 SERVO M2.5x16 Self tapping bolt x20 M2.5x16 Self tapping bolt 2 5mm Washer Boom Rudder Servo 2 5mm Washer All control balls should to set at 13.5mm to the center of the servo horn...
  • Page 11 Equipment illustration Gyro Elevator Servo Pitch Servo Receiver Rudder Servo Aileron Servo Battery Throttle Please check first your radio manuals before connecting these electronic devices as shown below. Hitec/Futaba Aileron Elevator Throttle Receiver Aux2 Gyro Gain Gyro Battery Rudder Pitch Aux1 Phasing Control Ring Adjustment Main Grip...
  • Page 12 Servos and Arms. Some fine adjustments are still needed in following setup steps. Please cut 4.5mm from each ball links. 4.5mm Compass Model Ball Links are designed to be tight; this allows you to adjust them to your personal needs. We highly suggest the use of a ball link sizing tool.
  • Page 13 Setup Pitch Throttle Curve General Flight 100% Throttle Pitch 100% 10 deg 4~5 deg -5 deg 3D Style 100% Throttle Pitch 100% 10deg 6.5 deg 0 deg -6.5 deg -10 deg 100% Swash Type Setting For any radio setup please refer to your radio Futaba instructions first.
  • Page 14 Washout Arm Horizontal Swashplate 06-0501 Swashplate Horizontal Tool Level the Swashplate by adjusting the links from the Servo Arms to the Swashplate. Use a Compass Swashplate Tool as guide. Then set level the Washout Arms. 0 Pitch ° Mixing Arm By adjusting the Links between Swashplate and Mixing Arms set the Mixing Arms to a 5°...
  • Page 15 Servo Direction Check Turn the Transmitter on, your position has to be right behind the helicopters Tail. Make sure that the Swashplate Mode is set to CCPM 120°. Move the Sticks according to the drawings and check the reaction of the Swashplate and the Tail Pitch Plate.
  • Page 16 Canopy 3mm Washer X 4 M3x12 Cap Head Bolt x4 3mm W asher Install the Canopy onto t he helicopter M3x12 Cap Head Bolt Rotor Direction When the Rotor spins clockwise the Tail Blades should turn clockwise as well watching the Tail Rotor from the Tail Fin side. If not Belt is installed the wrong way and has to be corrected.
  • Page 17 Team Tips General: It is very important to make sure the clunk line does not get hung up inside to fuel tank. Remove the fuel tank from the helicopter and rotate the tank. Be sure the clunk can get close to all corners of the tank.
  • Page 18 Compass Model www compassmodel com...

  • Page 19: Parts List

    Use the part number to find the ORDER number on the list Only use ORDER number for your parts order Copyright Compass Model 2008 As we continue to improve our products; this parts list may not reflect all recent product amendments.
  • Page 20 80 0428 79 0312 02 1101 91 0004 02 0113 79 0308 02 0111 91 0003 02 0118 02 0110 61 4083 60 8165 02 0109 79 0308 97 0920 80 0322S 80 0206S 02 0701 63 8165 02 538 02 1103 82 821003 80 0308...
  • Page 21 Part No. Part Description Order No. Order Description Qty. 02-0110 Spindle washer (3D) 02-0110 Spindle washer (3D) 2 pcs/bag 02-0109 Delrin dampener 8mm 02-0109 Delrin dampener 8mm 2 pcs/bag 02-1101S 02-0111 Rotor hub Rotor hub with Yoke 1 set/bag 02-0113 Spindle shaft 8mm 02-0113 Spindle shaft 8mm...
  • Page 22 80-2508 61-4083 02-0234 02-0226 02-0261 02-0225 61-4083 60-7113 02-7002 02-0220 02-0701 60-7113 80-2508 02-0205 80-0206S 02-1211 84-0212 02-0262 02-1212 98-61600 02-0213 90-0302 80-0314 02 0250 02-0263 60-5134 60-5134 81-0305 02-0263 02-0209 02-0214 63-4094 02-0227 60-4094 82-3402 80-0208S 80-0330 80-0208 02-0701 02-0264A 02-0264B 91-0003...
  • Page 23 Part No. Part Description Order No. Order Description Qty. 02-0205 Tail Ball link 02-0205S Tail blade links 2 pcs/bag 02-0209 02-0209 Tail rotor hub Tail rotor hub 1 pcs/bag 02-0213 Tail slide ring sleeve 02-0213 Tail slide ring sleeve 1 pcs/bag 02-0214 Tail shaft 02-0214...
  • Page 24 81 0406 02 0307 60 6196 60 8196 02 0603 02 3302 61 2562 02 0321 02 1519 80 2505 60 6124 02 0312 02 0504 02 0535 80 0206S 02 0317 02 0532 02 0701 6 -4083 02 5402 62 0612 80 0312 80 2520...
  • Page 25 Part No. Part Description Order No. Order Description Qty. 02-0301 Cooling fan hub 02-0301 Cooling fan hub 1 pcs/bag 02-0304 Cooling fan 02-0304 Cooling fan 1 pcs/bag 02-0307 Starter coupling 02-0307S Starter coupling 1 pcs/bag 02-0310 Engine mount (sport) 02-0310 Engine mount (sport) 1 pcs/bag 02-0312...
  • Page 26 02 5006 80 0335 02 0233 80 0322 02 3811 02 5202 95-0310 60 5134 90 0302 95 0316 02 1232 02 3401 02 0807 02 1232 80 0310 60 5134 h: 95-0320 02 0837 02 0839 80 0308 02 1843 02 0803 81-0316 02 0805...
  • Page 27 Part No. Part Description Order No. Order Description Qty. 02-0233 Counter gear shaft 02-0233S Counter gear shaft with E-Clip 2 pcs/bag 02-0803 Cross members 3x30 02-0803 Cross members 3x30 3 pcs/bag 02-0805 Cross members M3x30 02-0805 Cross members M3x30 5 pcs/bag 02-0807 02-0807 Cross members M3x60...
  • Page 28 02 0853 02 0810 80 0310S 02 1851X 02 0853 02 0810 80 0310S 80 0326 02 1816 02 1815 05 0807 05 0807 02 0823A 80 0332 02 0823B 02 0826 80 2508 02 0813 91 0003 02 0814 02 0813 80 2508...
  • Page 29 Part No. Part Description Order No. Order Description Qty. 02-1851X Painted FG canopy (sportX) 02-1851X Painted FG canopy (sportX) 1 pcs/bag 02-0853 Canopy rubber grommets 02-0853 Canopy Dampner 10 pcs/bag 02-0810 Canopy bolts 02-0810SB Canopy bolts (blue) 4 pcs/bag 02-0813 Tail boom brace connectors 02-0813S Tail boom brace connectors w,bolts...
  • Page 30 02 0709 40 2016 40 2055 40 2036 02 0709 02 0709 02 0921 61 3062 80 0216 40 2045 79 0308 02 0701 60 6103 61 4083 80 0206S 80 0312 02 0531 02 0119 02 1914 02 0919 80 2516 40 2055 40 2085...
  • Page 31 Part No. Part Description Order No. Order Description Qty. 02-0119 Collar 02-0119 Collar 2 pcs/bag 02-0531 Collar 02-0531S Bushing set (includes 3 sizes) 6 pcs/bag 02-0701 02-0701 Stainless link balls Stainless link balls 10 pcs/bag 02-0709 Ball links 02-0709 Ball links 10 pcs/bag 02-0919 L-Lever set...
  • Page 32 Compass Model www compassmodel com...
