Installation Procedure - Canon iR C3380 series Service Manual

2.13.3 Installation Procedure

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
When installing the machine, see the Combination Table for Accessory Installation.

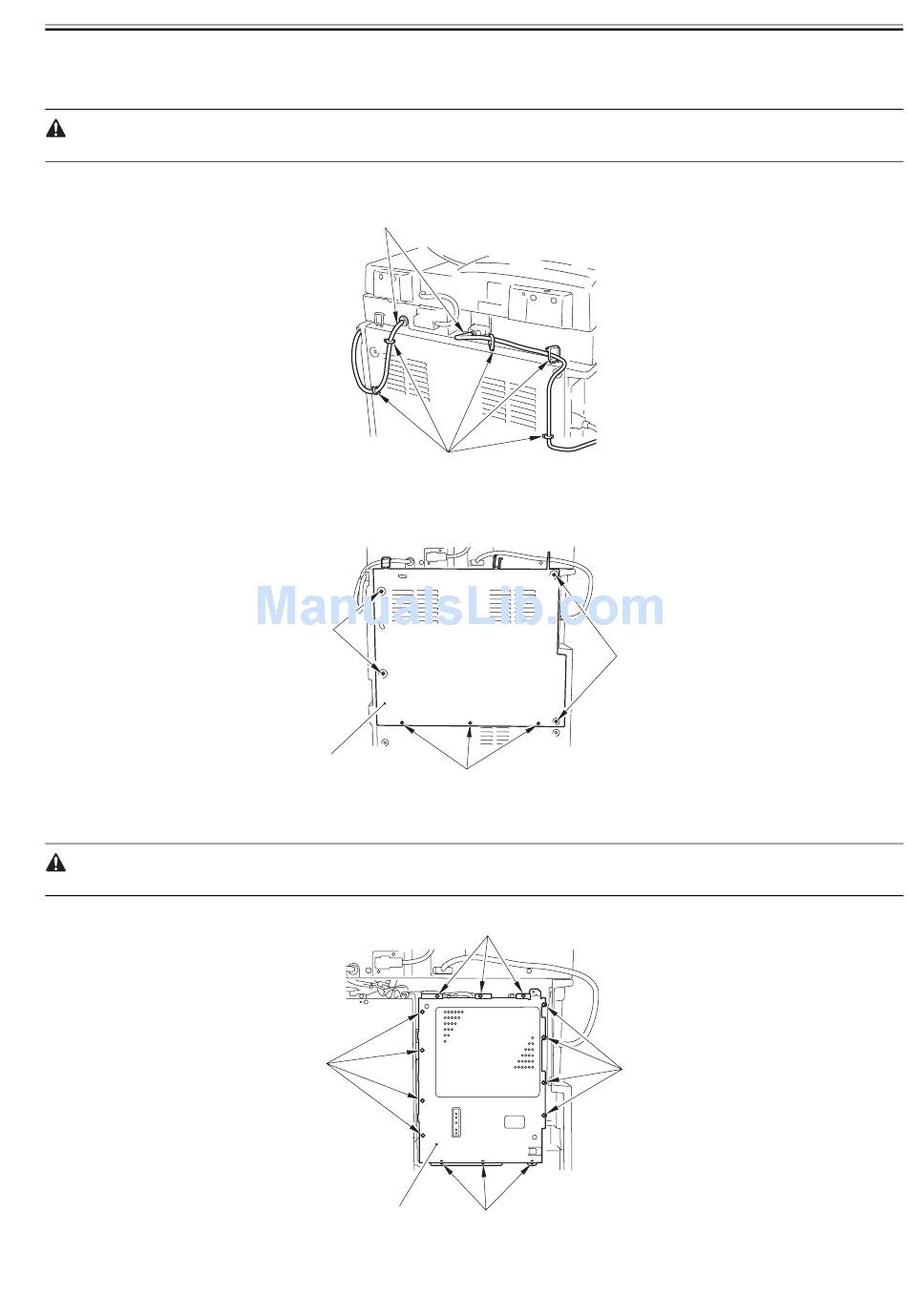

1. Installation Procedure

1) Release five wire saddles [1] on the rear upper cover, make two cables [2] coming off upward.
2) Detach the rear upper cover [1].
- 3 screws [2] (to remove)
- 6 screws [3] (to loosen)
3) Detach the controller box cover [1].
- 14 screws [2]
Do not make the screws fall off.
4) Detach the blanking plate [1] (Do not use the detached blanking plate).
[2]
[1]
F-2-120
[2]
[1]
[3]
F-2-121
[2]
[2]
[1]
[2]
F-2-122
[2]
[2]
