Chapter 15

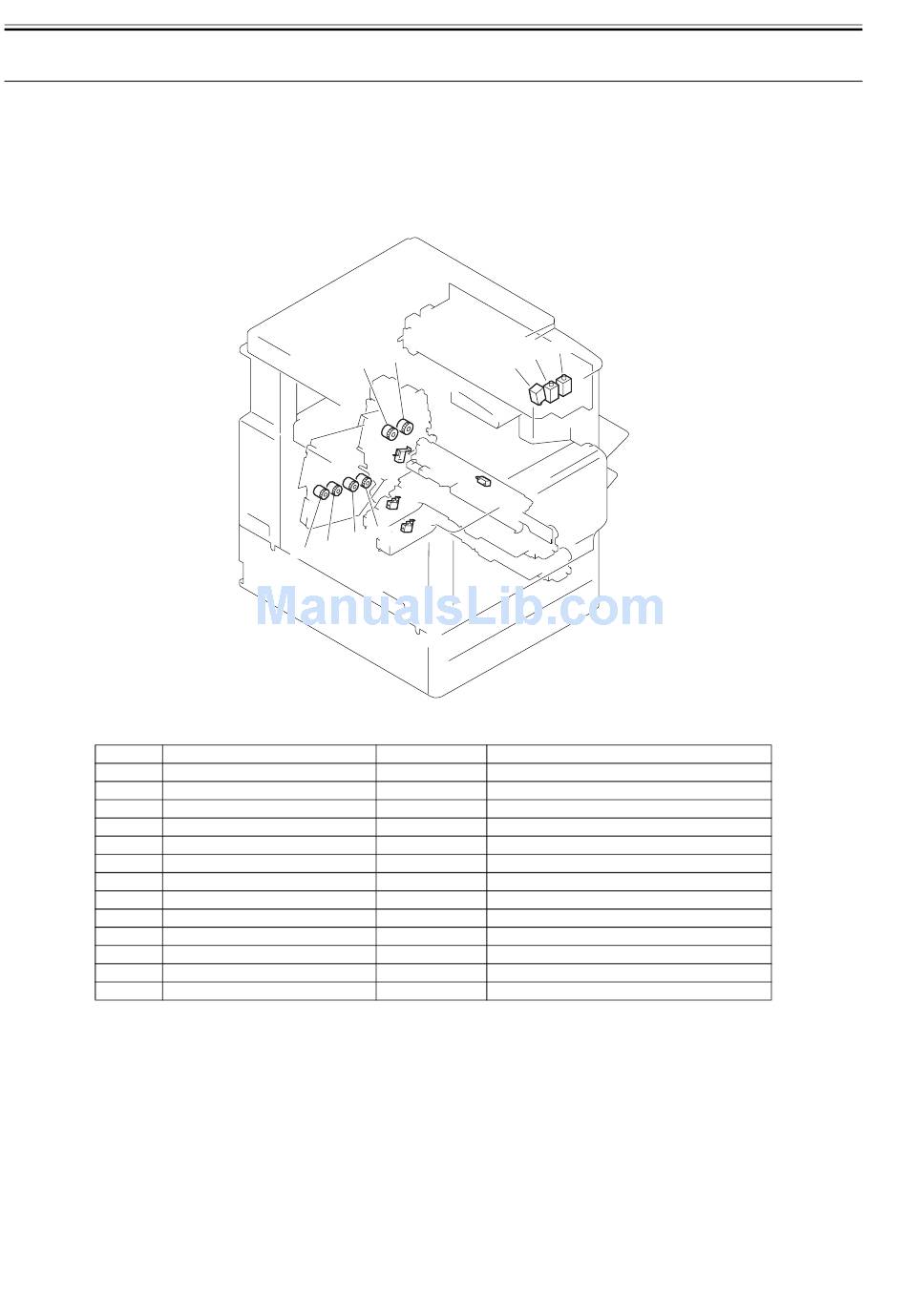

15.3 Outline of Electrical Components

15.3.1 Clutch/Solenoid

15.3.1.1 Clutch/Solenoid Table

/ / / / iR C3380i / iR C3380 / iR C2880i / iR C2880
<Reader Unit>
The reader unit does not have clutches or solenoids.
<Printer Unit>
Ref. Description
CL1 Yellow develop sleeve clutch
CL2 Magenta develop sleeve clutch
CL3 Cyan develop sleeve clutch
CL4 Black develop sleeve clutch
CL5 Multi feeder pick-up clutch
CL6 Registration clutch
SL1 Shutter solenoid
SL2 Cassette 1 pick-up solenoid
SL3 Cassette 2 pick-up solenoid
SL4 Multi feeder pad up/ down solenoid
SL1A No. 1 delivery solenoid
SL2A No. 2 delivery solenoid
SL3A No. 3 delivery solenoid
15-6
CL5
CL6
SL4
SL2
SL3
CL4
CL3
CL2
CL1
F-15-7
T-15-2
Parts number
FM2-3581
FM2-3581
FM2-3581
FM2-3581
FH6-5076
FK2-2063
FK2-0484
FK2-0408
FK2-0408
FK2-2070
FL2-1203
FL2-1206
FL2-1205
SL3A
SL2A
SL1A
SL1
DC controller PCB
J210A-2
J210A-4
J210A-6
J210A-8
J211-2
J211-4
J221A-18
J219A-14
J219B-14
J217-11
J744-2(2/3-delivery controller PCB)
J742-1/ 2(2/3-delivery controller PCB)
J742-8(2/3-delivery controller PCB)
