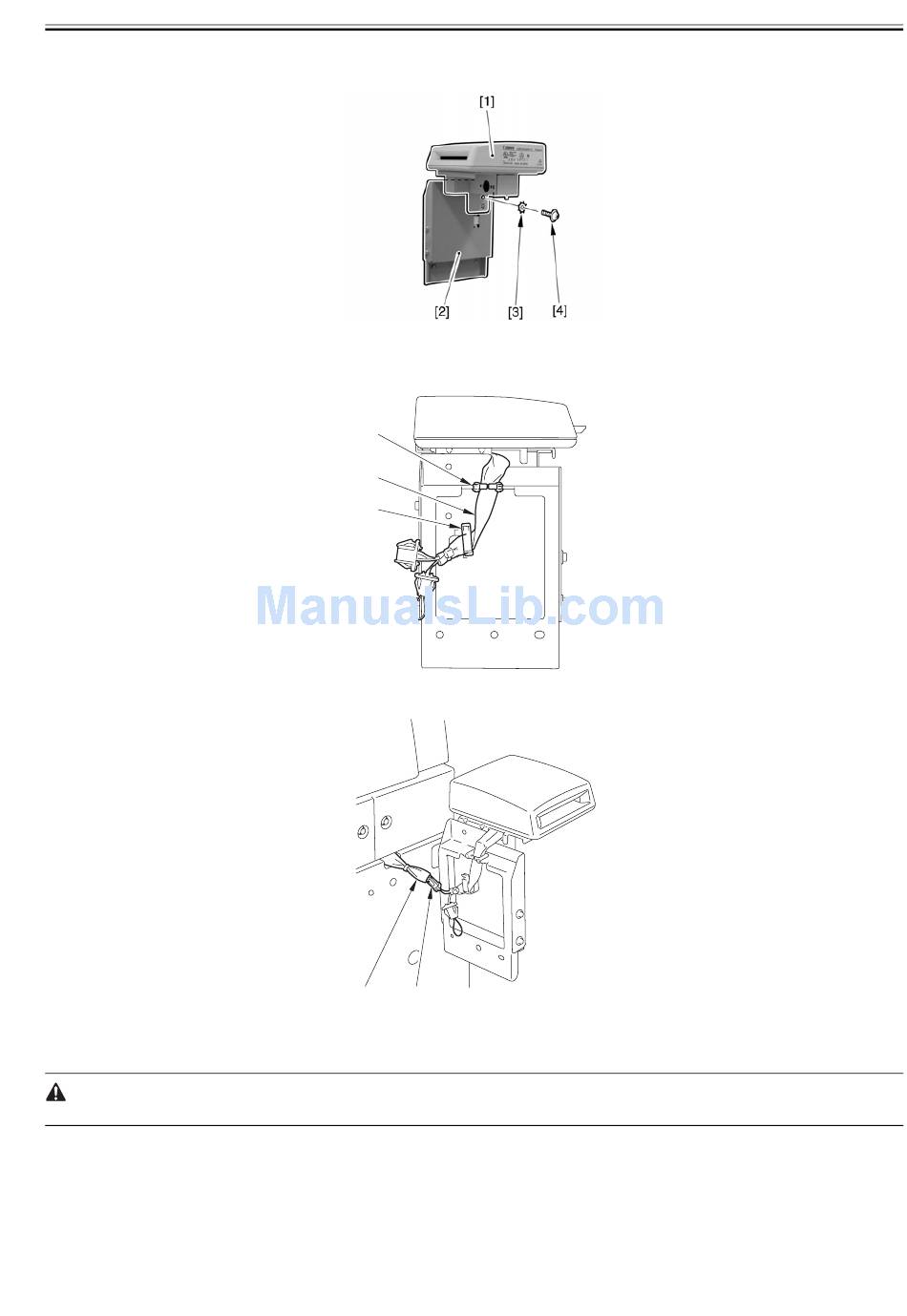

8) Attach the card reader [1] and the card reader base plate [2].
- 1 toothed washer [3]
- 1 screw (TP; M4X8) [4]
9) 9) Fix the relay cable [1] of the card reader in place.
- 1 edge saddle [2]
- 1 wire saddle [3]
10) Connect the relay cable [1] that is connected in the step 5) with the relay cable [2] of the card reader.
11) Fit the 2 bosses [1] to attach the card reader [2].
- 1 toothed washer [3]
- 1 screw (TP; M4X25) [4]
Take care not to nip the harness.
F-2-71
[2]
[1]
[3]
F-2-72
[1] [2]
F-2-73
