SETTINGS AND ADJUSTMENTS

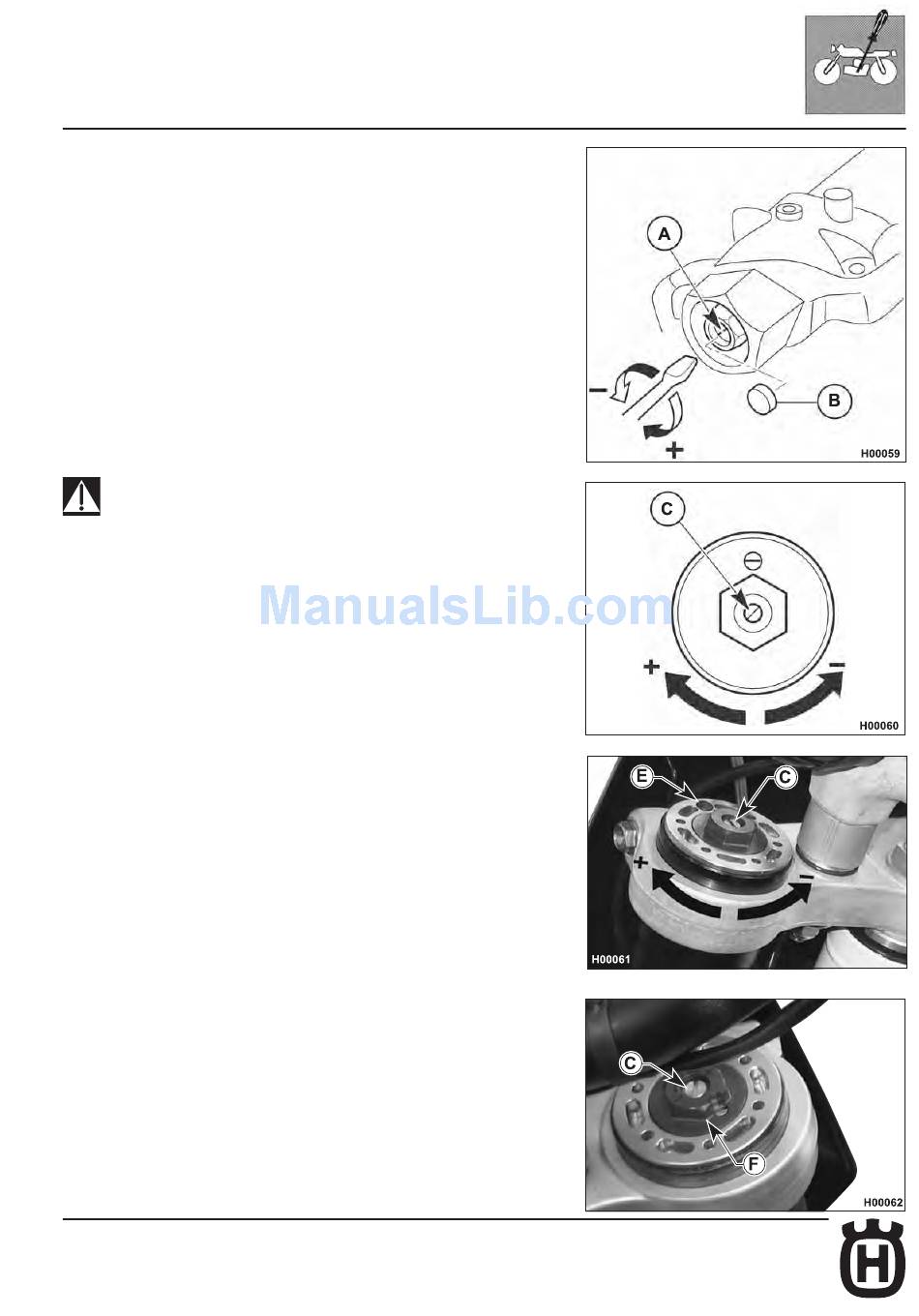

MARZOCCHI front fork adjustment (TC 2009)

a)
a) COMPRESSION (LOWER ADJUSTER)
Standard setting: -20 clicks.
To reset the standard setting, remove cap (B) and turn the adjuster (A) clockwise
until reaching fully closed position. Then turn it back by the mentioned clicks.
In order to obtain a smooth braking action, turn the adjuster counter clockwise.
Vice versa to obtain a harder braking action.
b) REBOUND (TOP ADJUSTER)
Standard setting: -20 clicks.
To reset standard setting, turn adjuster (C) clockwise to reach the fully closed
position; then, turn it back by the mentioned clicks. In order to obtain a smooth
braking action, turn the adjuster counter clockwise. Vice versa to obtain a harder
braking action.
c) BLEEDING (to carry out after each competition, or monthly).
Set the motorcycle on a central stand, release the fork fully extended, remove cap
(E) and push the bleed valve (D) in with the tip of a pointed tool. Refit the cap.
NEVER loosen the screw (F).
NOTE: Never force the adjuster screws beyond the maximum open and closed
positions.
b)
Part. N. 8000 H1489 (10-2009) D.27
