Removing the FBU holder from the air duct

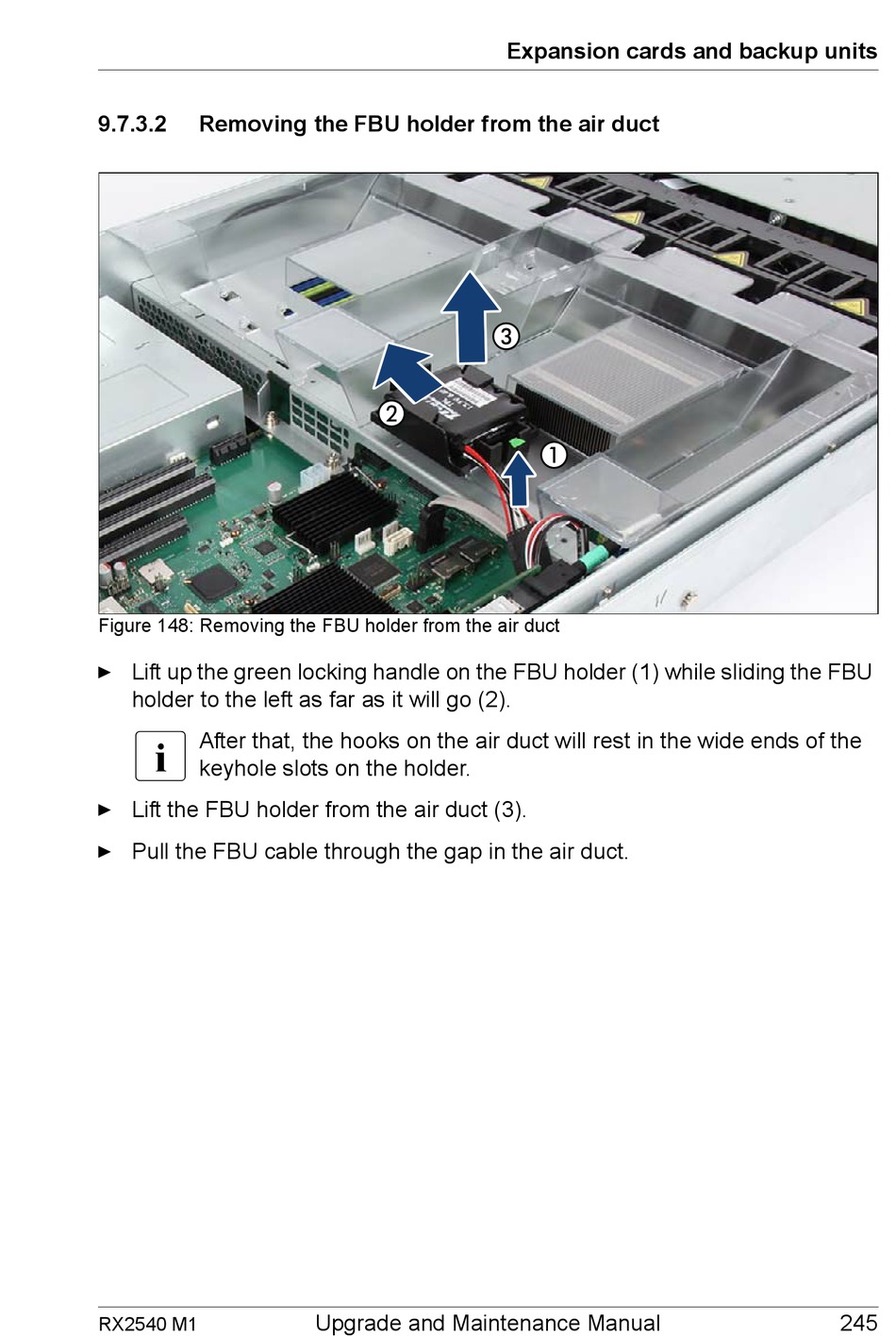

Figure 148: Removing the FBU holder from the air duct

Ê Lift up the green locking handle on the FBU holder (1) while sliding the FBU

holder to the left as far as it will go (2).

After that, the hooks on the air duct will rest in the wide ends of the

keyhole slots on the holder.

Ê Lift the FBU holder from the air duct (3).

Ê Pull the FBU cable through the gap in the air duct.

Upgrade and Maintenance Manual

Expansion cards and backup units
