Removing The Processor; Installing And Removing Memory; Installing Memory; Figure 44. Installing Processor Heatsink - Intel R2000GL Service Manual

Hardware Installations and Upgrades
3. Using a #2 Phillips* screwdriver, start with screw 1 and engage screw threads by giving it two
rotations and stop (see letter "C"). (Do not fully tighten.)
4. Proceed to screw 2 and engage screw threads by giving it two rotations and stop (see letter "D").
Similarly, engage screws 3 and 4.
5. Repeat steps C and D by giving each screw two rotations each time until each screw is lightly
tightened up to a maximum of 8 inch-lbs torque (see letter "E").

Removing the Processor

1. Remove the processor heatsink, see Figure 37.
2. Open the socket lever, see Figure 38.
3. Open the load plate, see Figure 39.
4. Remove the processor.

Installing and Removing Memory

Installing Memory

1. Locate the DIMM sockets. Make sure the clips at either end of the DIMM socket(s) are pushed
outward to the open position (see letter "A").
30

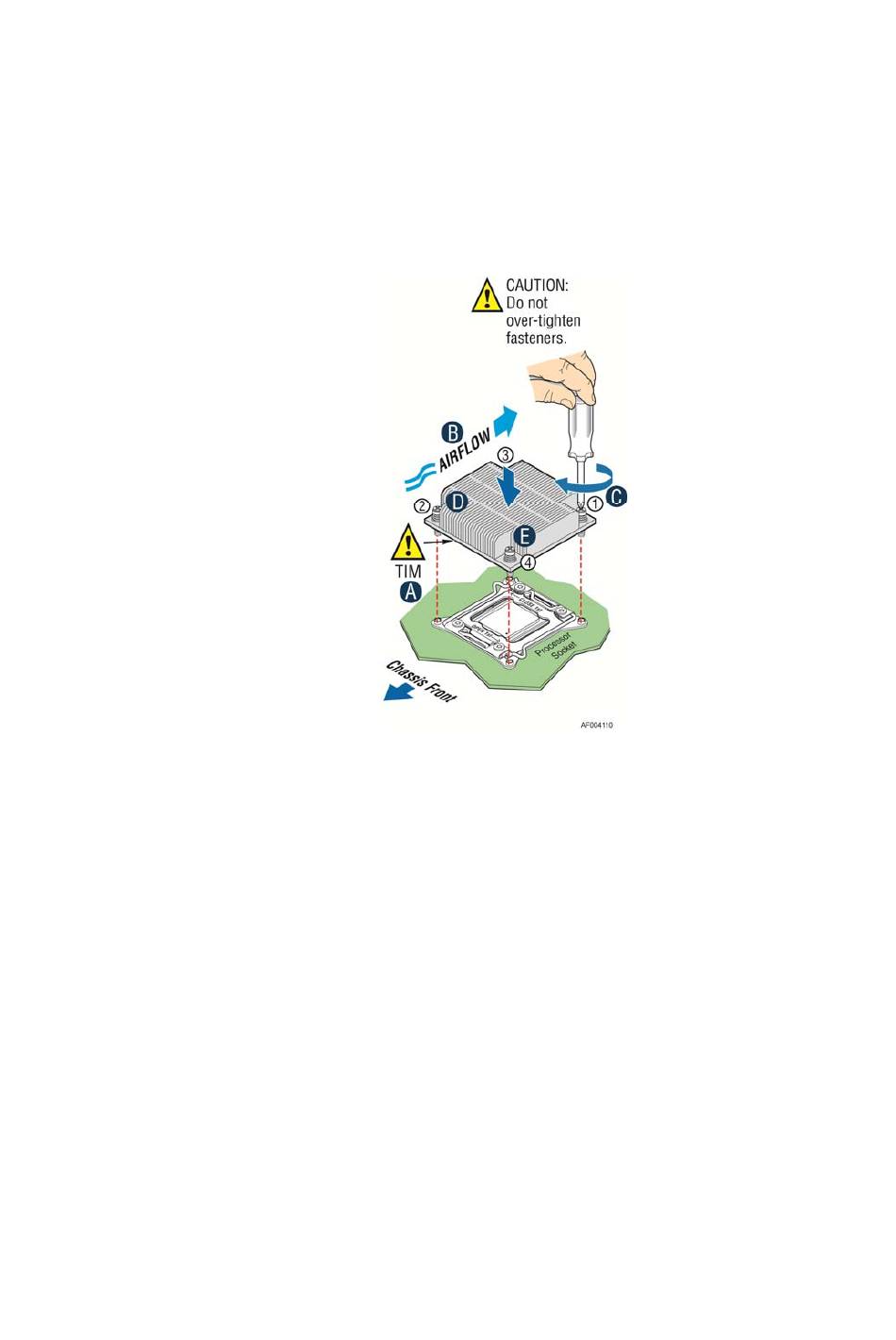

Figure 44. Installing Processor Heatsink

®
