1.3

Front Panel Display and Indicators

Refer to Figure 1–2 and Table 1-2 for description of the Front Panel display and indicators.
No. Control/Indicator
1 Voltage Display
2 Operation Mode Indicator
3 Current Display
4 LFP Indicator
5 AUTO Indicator
6 SAFE Indicator
7 FOLD VI Indicator

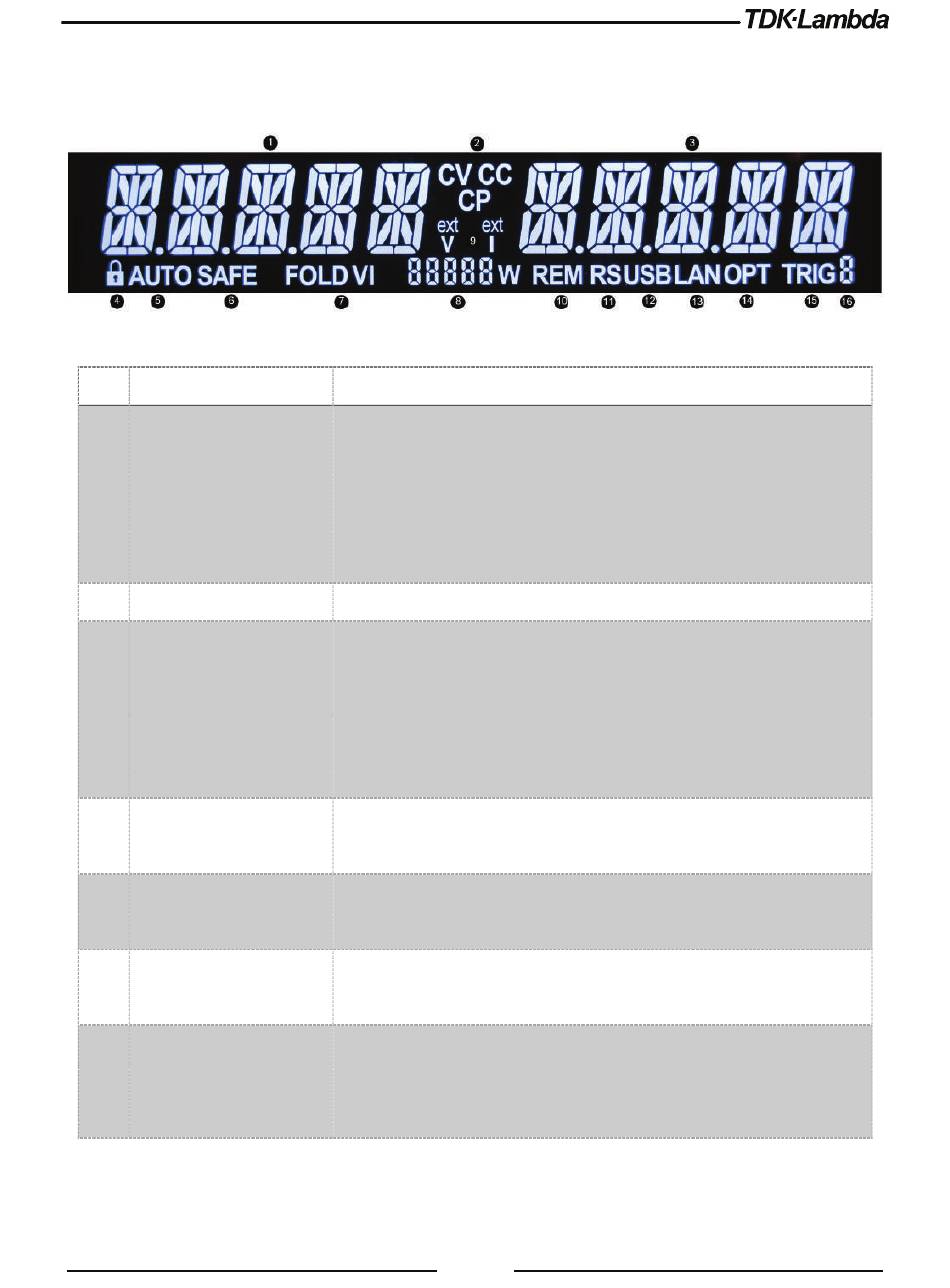

Figure 1–2: Front Panel Display and Indicators
Description
4-digit 16-segment Voltage display.
Normally displays the output voltage.
In preview mode, the display indicates the program setting of the output
voltage.
In menu navigation, the display indicates the selected function.
CV/CC/CP operation mode indicator.
4-digit 16-segment Current display.
Normally displays the output current.
In preview mode, the display indicates the program setting of the output
current.
In menu navigation, the display indicates the selected parameter.
Locked Front Panel indicator.
LFP is on if the Front Panel is locked.
AUTO-Start indicator.
AUTO is on if the Auto-Start mode is active.
SAFE-Start indicator.
SAFE is on, if the Safe-Start mode is active.
Foldback indicator.
FOLD V is on if Foldback CV is active.
FOLD I is on if Foldback CC is active.
5
