KTM 990 Adventure Repair Manual page 439

13-150

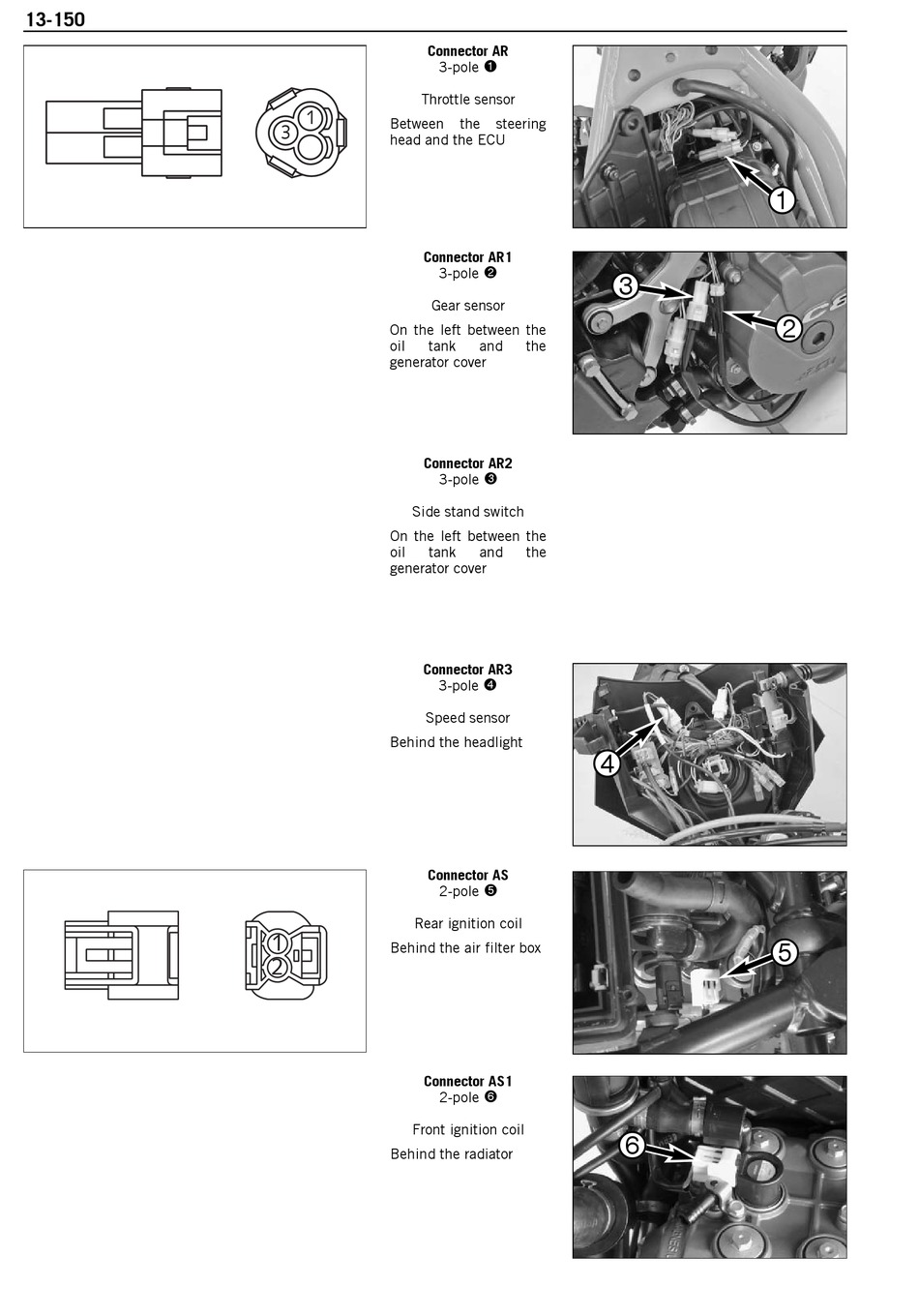

Connector AR
3-pole
Throttle sensor
1
Between
3
head and the ECU
Connector AR1
3-pole
Gear sensor
On the left between the
oil tank
generator cover
Connector AR2
3-pole
Side stand switch
On the left between the
oil tank
generator cover
Connector AR3
3-pole
Speed sensor
Behind the headlight
Connector AS
2-pole
Rear ignition coil
1
Behind the air filter box
2
Connector AS1
2-pole
Front ignition coil
Behind the radiator
1
the steering
2
3
and the
3
and the
4
4
5
6
6
1
2
5
