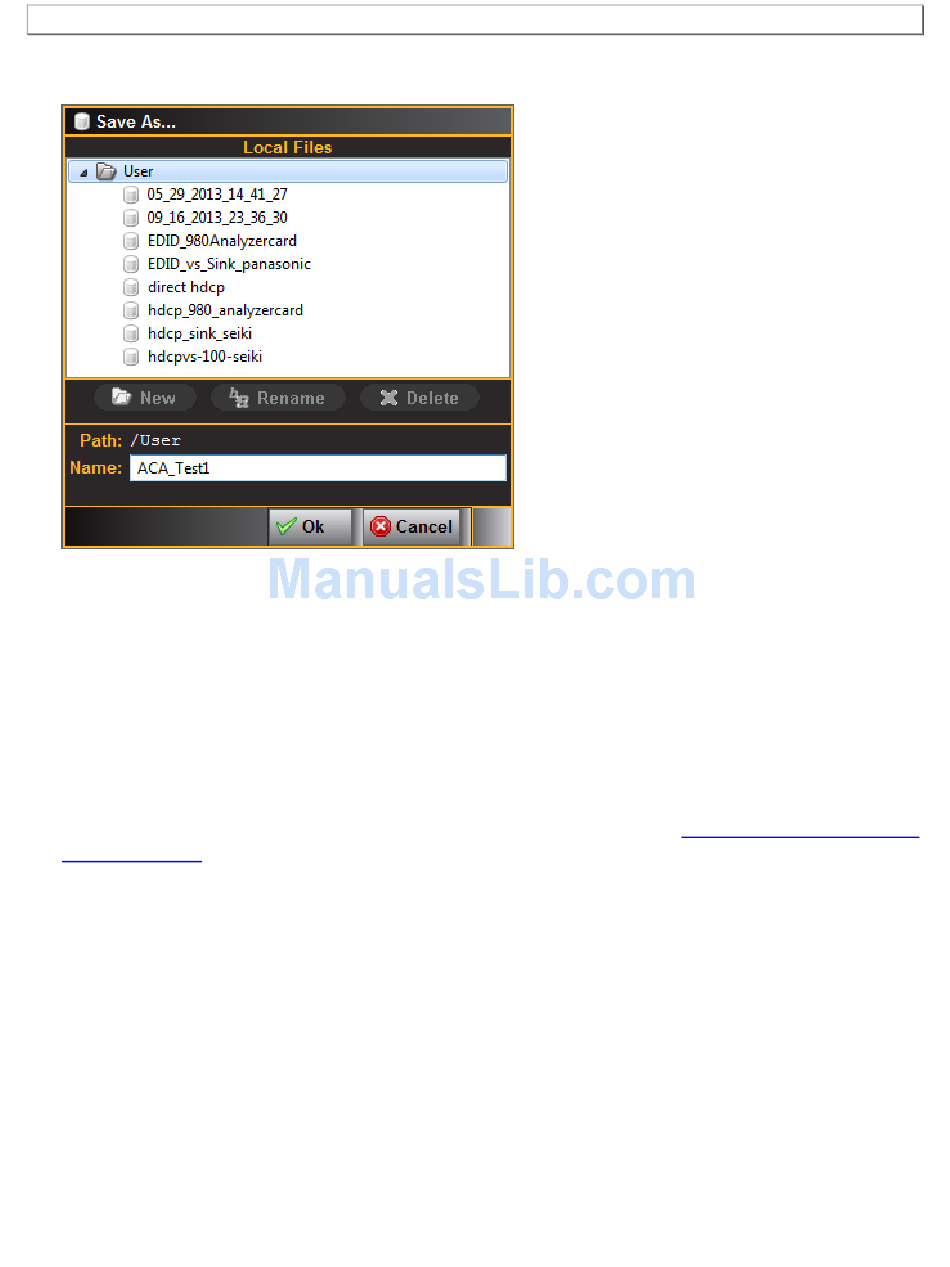

7. Click on Save to Instrument or Save to PC. A dialog box appears (below). Enter a name and then click on
OK.
5.4

Viewing Stored DP Aux Chan traces on a PC with the ACA Data Viewer utility

This subsection describes how you can view ACA traces using the ACA viewer off-line on your PC. In order to view
the ACA files on your PC with the 980 GUI Manager application you will first have to transfer them to the PC using
the Data Transfer utility.
The ability to save ACA traces enables you to disseminate them to other subject matter experts for analysis or to
Quantum Data for support. You can view the ACA traces without a 980 test instrument. You simply download the
980 GUI Manager from the Quantum Data website on the downloads page.
To view saved ACA trace files:
1. Make sure the 980 GUI Manager is installed on your PC. Use the procedures at
980 GUI Manager.
2. Access the ACA data from the Navigator panel and highlight a directory as shown below.
