3.5

Selecting DP formats

Use the following procedures to select the mode, DP, in the 980 DP Video Generator module.
Note: There are two DP transmitter ports and one DP receiver port. Both transmitters are active and transmitting
the same content simultaneously.
To select interface (DP):

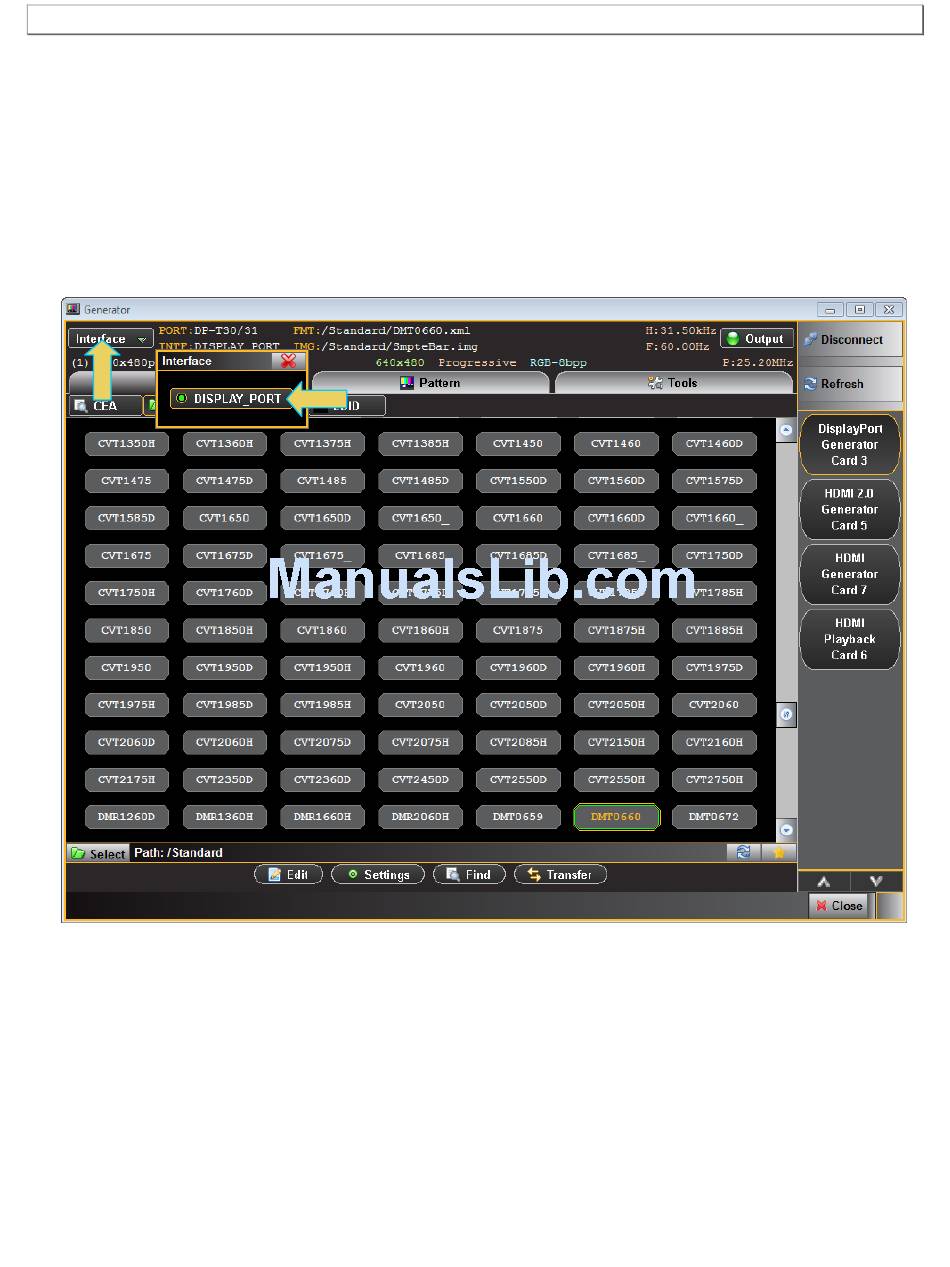

1. From the Main menu of the 980 DP Video Generator module, click the Interface button to select DP mode. In
this case, DP should be selected by default.
Page 26 July 14, 2014
