11.43 DV_Swing, DVSwing2

11.43.1Description

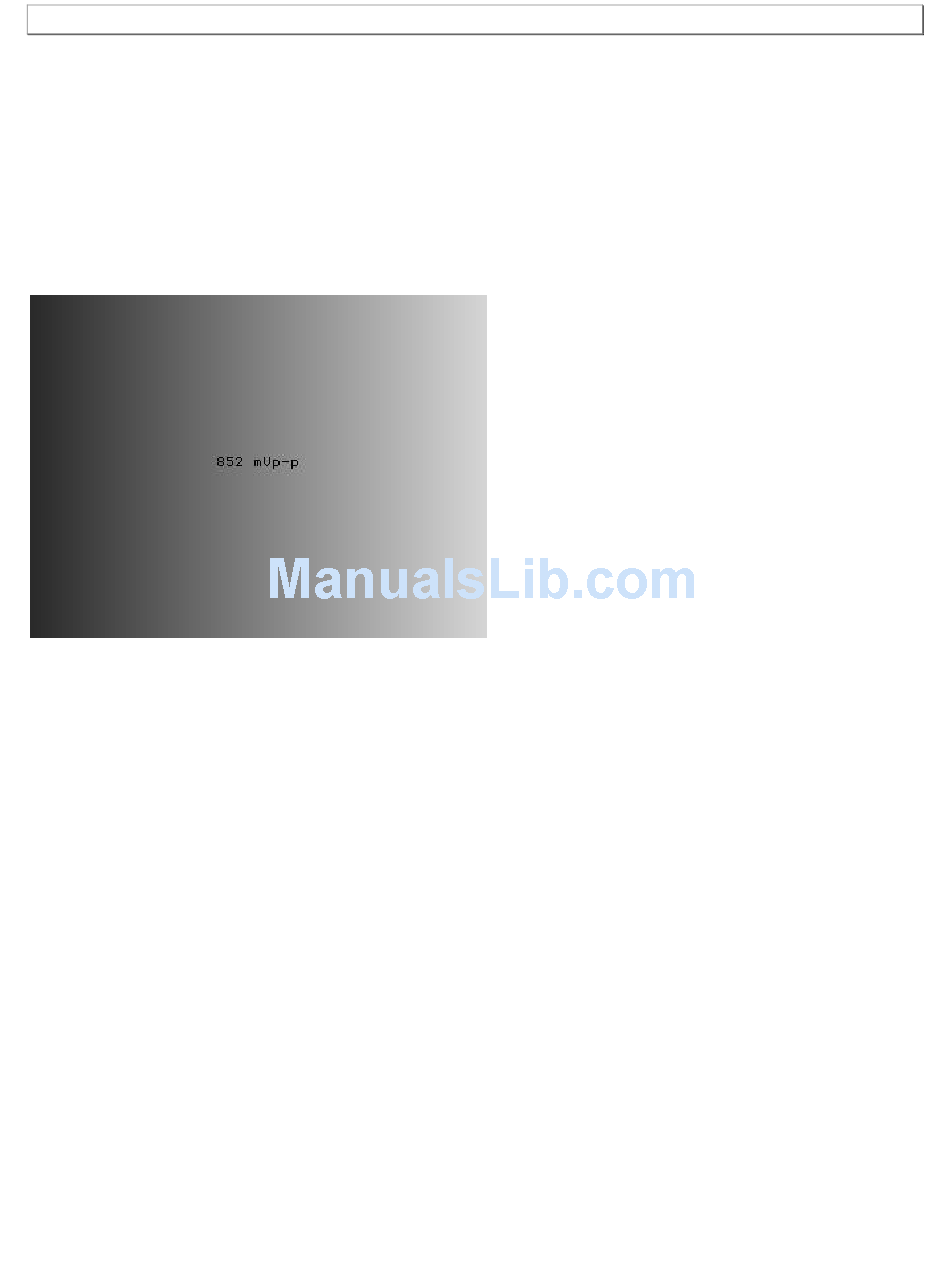

This image is only available with DVI and HDMI. The DV_Swing image is used to temporally change the digital
video swing (DVSS format parameter) between 90 and 1620 mVp-p of the HDMI and DVI digital output for the
active format. This image displays the current video swing value over a graduated (ramp) background. This image
is supported by HDMI boards (revision F or later), and DVI boards with FPGA F1 or later.
Note: The DVSC command can be used to set the swing value between 150 and 1500 mVp-p.
11.43.2Method
To adjust the swing in 6 mV increments, press the Contents key and then the Options key.
You then enable More and use the +/- increment keys to proceed through the subimages.
