980 DP Video Generator - User Guide
8.6

DPCD Editor

This subsection provides procedures on how to edit the DP Rx analyzer port's DPCD registers. The 980 DP Video
Analyzer provides a set of dialog boxes that enable you to edit the DPCD registers through pull down menus and
text fields. You can save these edited configurations for recall when testing DP sources. This enables you to
emulate a variety of DPCD register configurations on the Rx port.
The DPCD Editor is available either the remote GUI or the embedded GUI.

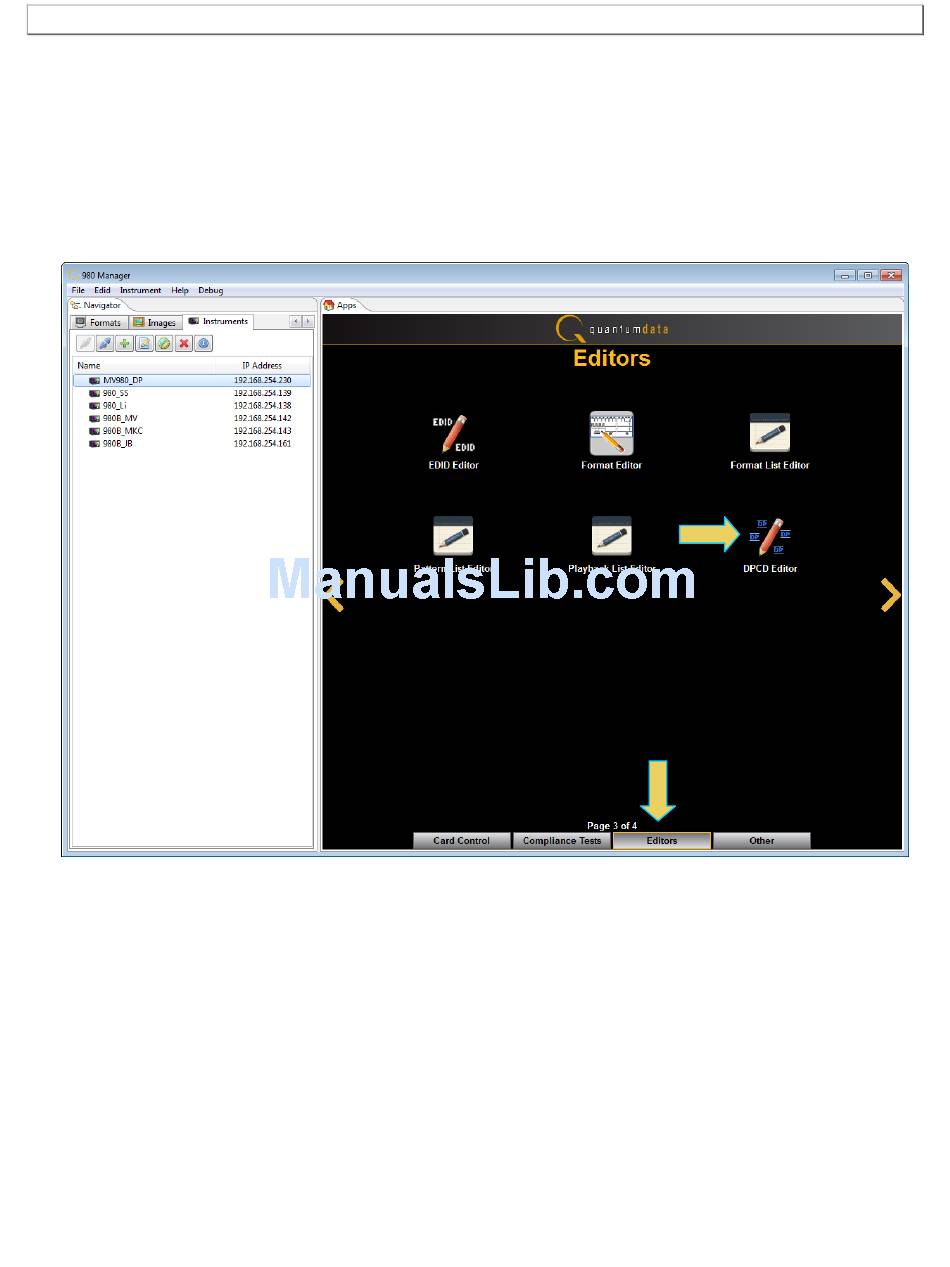

1. Access the DPCD Editor from the Editors page.
The following sample screen shots show some of the DPCD editing windows. Note that each register set is
selected on the left and the editing tools are available on the main area of the dialog box on the right side.
The following screen shows the DPCD Editor main screen.
