980 DP Video Generator - User Guide
11.110

MnslPG

11.110.1 Description
There are a series of these images (5 in total) that are accessible as sub images through the 882E front panel.
Each sub image depicts two hue families (each hue family contains 4 sub hues (2.5, 5, 7.5, 10). Each set of color
blocks arranged along a horizontal axis depicts the chroma and value variations for one of the sub hues which is
labeled on the left. Each such horizontal set of color blocks is a cancatenation of the value and chroma variations
for that particular hue. These cancatenations can be derived from the MnslCLR images. In other words, the
MnslPG image is a concatenation of 8 of the MnslCLR images.

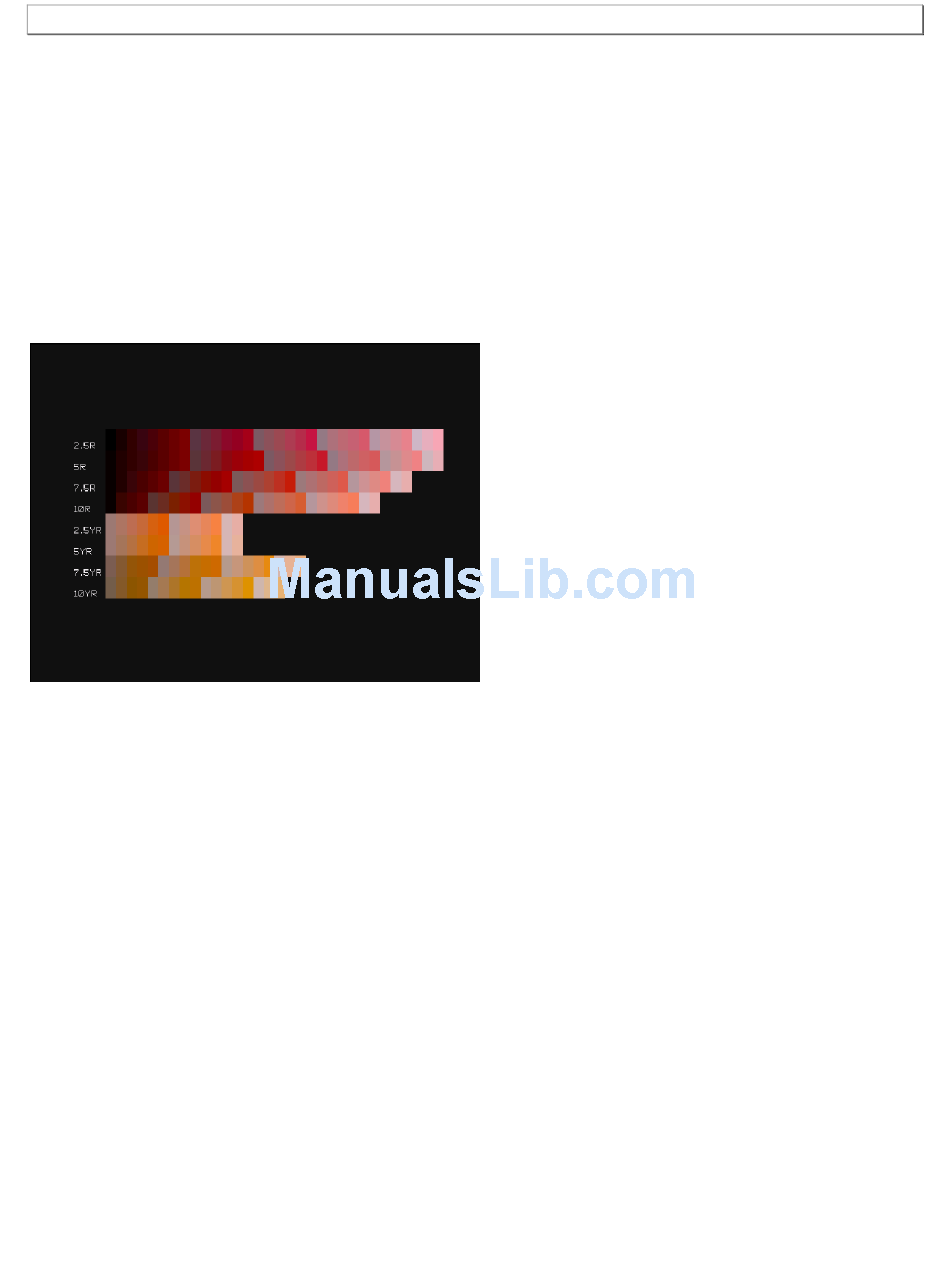

The MnslPG Image is shown below.
