980 DP Video Generator - User Guide Rev. A4
11.17 BLU_EM+, GRN_EM+, RED_EM+, WHT_EM+, MEMEPlus, MEPlus_B,
MEPlus_G, and MEPlus_R
11.17.1Description
In the primary version, the screen is filled with blue (BLU and B), green (GRN and G), red (R), or white (WHT and
Sony) EM character blocks on a black background. Only the white character has a secondary version. It is drawn
with black characters on a white background.

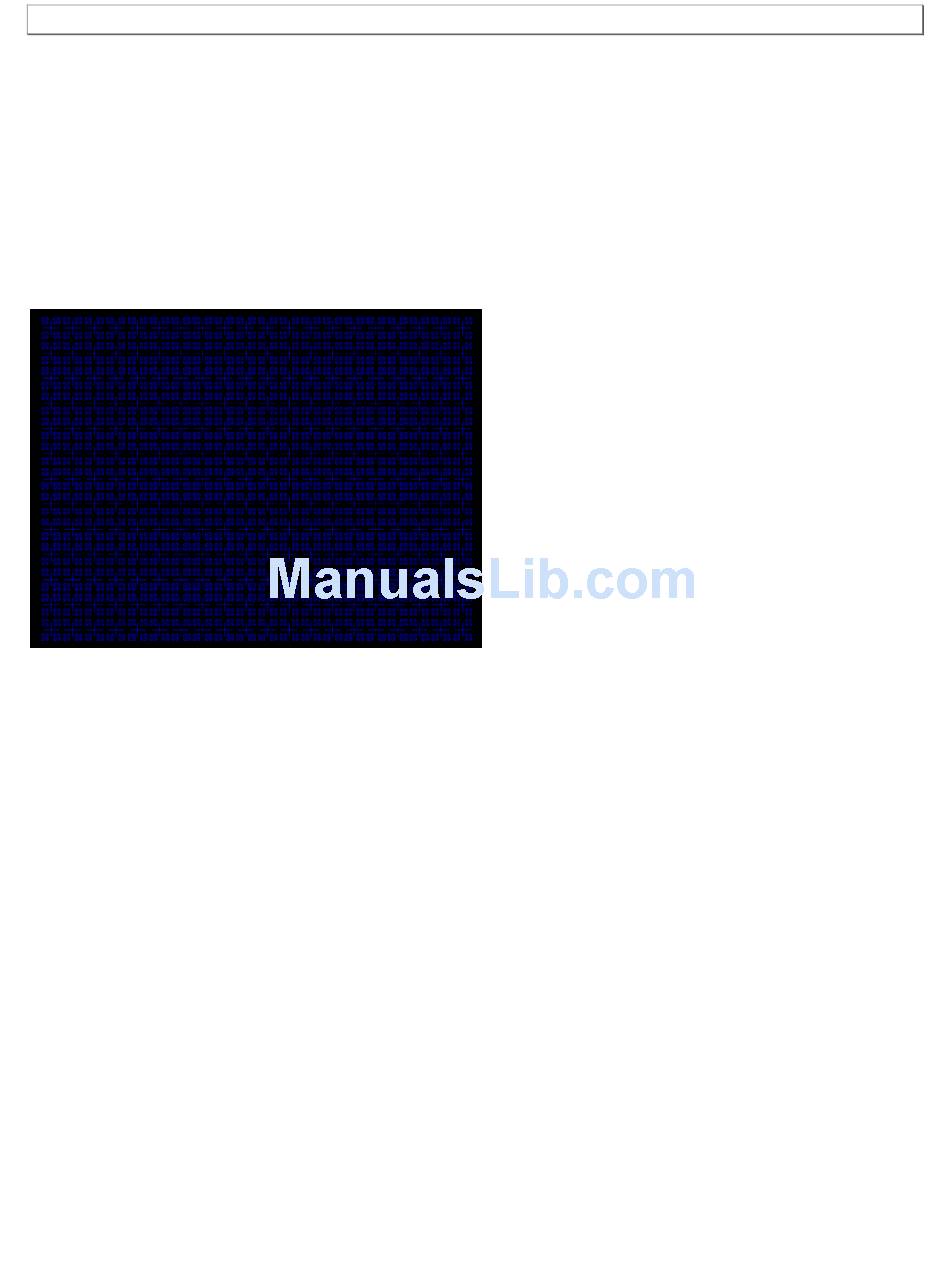

A bitmap of a single character block is shown here. The BLU_EM+ image is shown below.
11.17.2Purpose
This pattern is specified by one or more display manufacturers for checking and adjusting focus one color at a time.
Page 206 July 14, 2014
