3.10 Viewing the EDID of a connected display

Use the following procedures to select DP formats.
To view the EDID of a connected display:

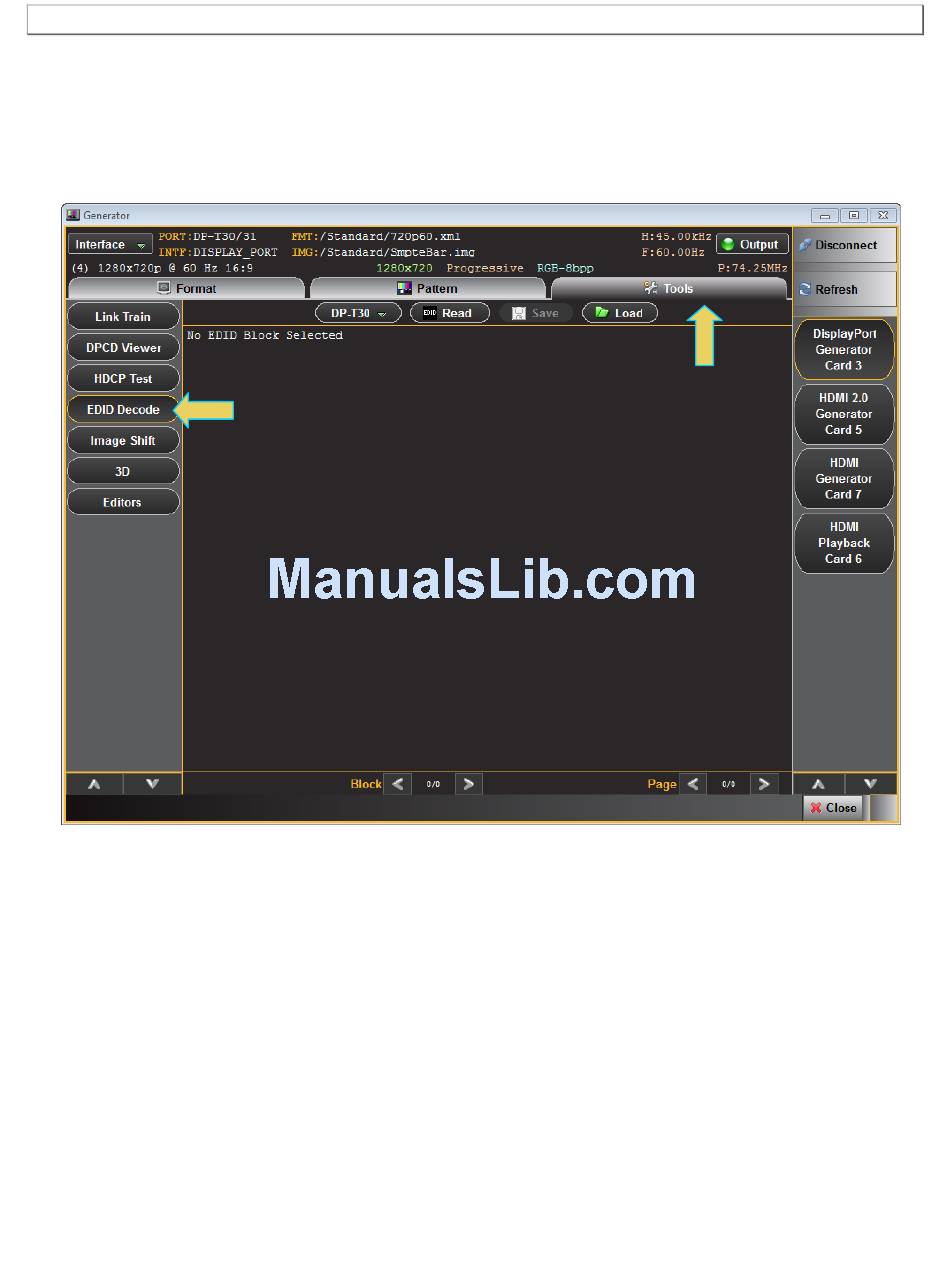

1. From the main window of the 980 DP Video Generator module, select the Tools tab.
Make sure the DP Generator Card is selected.
2. Select the DP Tx port that is connected to the sink DUT from the pull-down menu provided (below). The
naming convention used is:
