980 DP Video Generator - User Guide
3.6

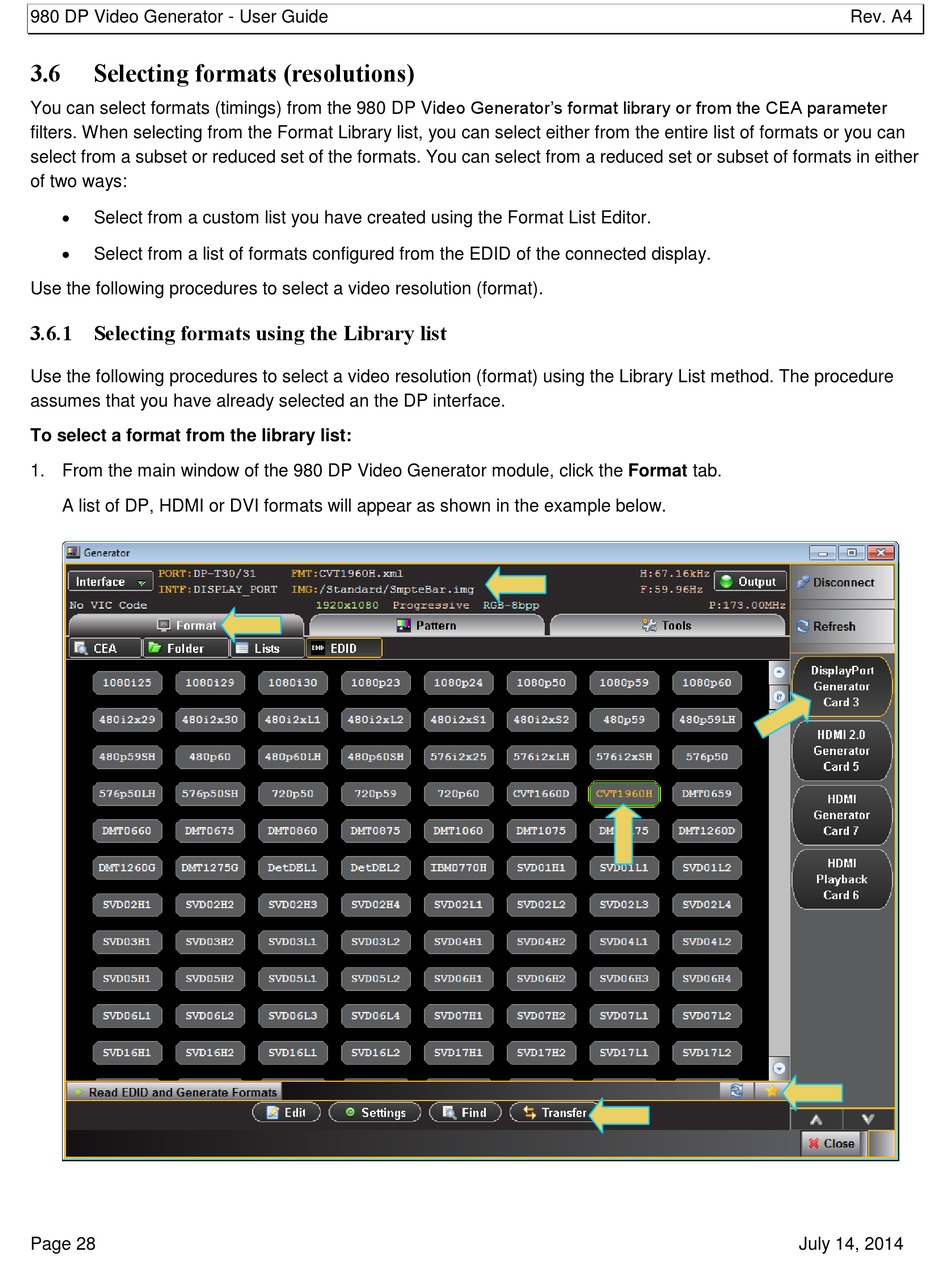

Selecting formats (resolutions)

You can select formats (timings) from the 980 DP Video Generator's format library or from the CEA parameter
filters. When selecting from the Format Library list, you can select either from the entire list of formats or you can
select from a subset or reduced set of the formats. You can select from a reduced set or subset of formats in either
of two ways:

Select from a custom list you have created using the Format List Editor.

Select from a list of formats configured from the EDID of the connected display.
Use the following procedures to select a video resolution (format).
3.6.1 Selecting formats using the Library list
Use the following procedures to select a video resolution (format) using the Library List method. The procedure
assumes that you have already selected an the DP interface.
To select a format from the library list:
1. From the main window of the 980 DP Video Generator module, click the Format tab.
A list of DP, HDMI or DVI formats will appear as shown in the example below.
