Alternatively you can select Arbitrary on the pull-down list on the lower control panel. The Arbitrary selection
enables you to specify filtering criteria in any order. Refer to the example below.
3.7

Configuring the format Settings

Use the following procedures to configure the format settings. The Settings dialog box enables you to configure the
Color Space, Range and Bits per Component.
To select a format:

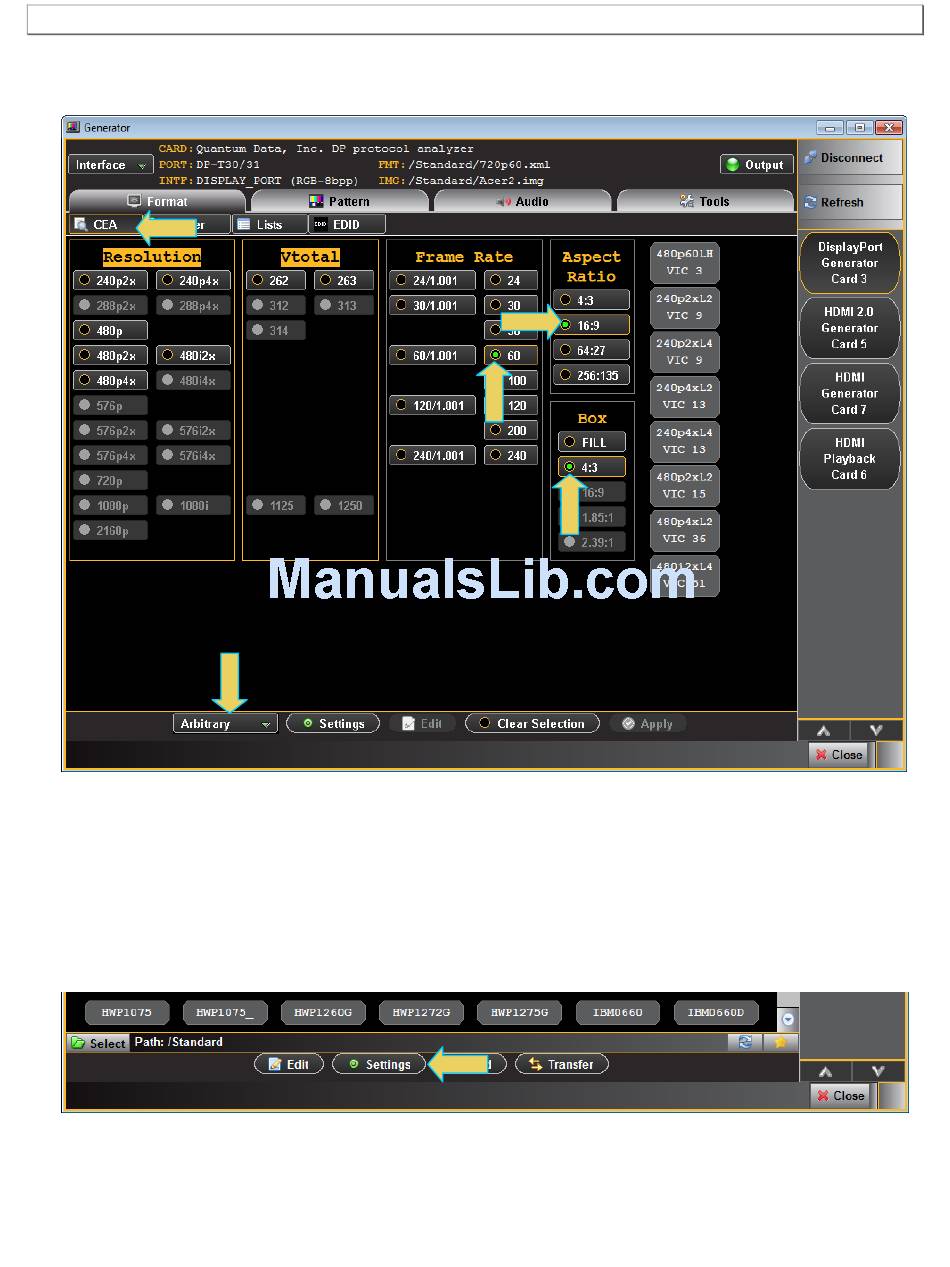

1. Specify the format settings by clicking on the Settings button on the lower center of the panel (indicated
below).
The Settings dialog box appears as shown below. Two examples are shown below; the first with RGB
selected and the second with YCbCr selected.
Page 35
Rev. A4
July 14, 2014
