11.88 Hatch4x3, Hatch5x4 and Hatch8x8

11.88.1Description
These are different versions of a crosshatch pattern that may be called for by some display manufacturers' test
procedures. The primary version consists of white crosshatch and circles on a black background. The secondary
version inverts the image to black lines on a white background.

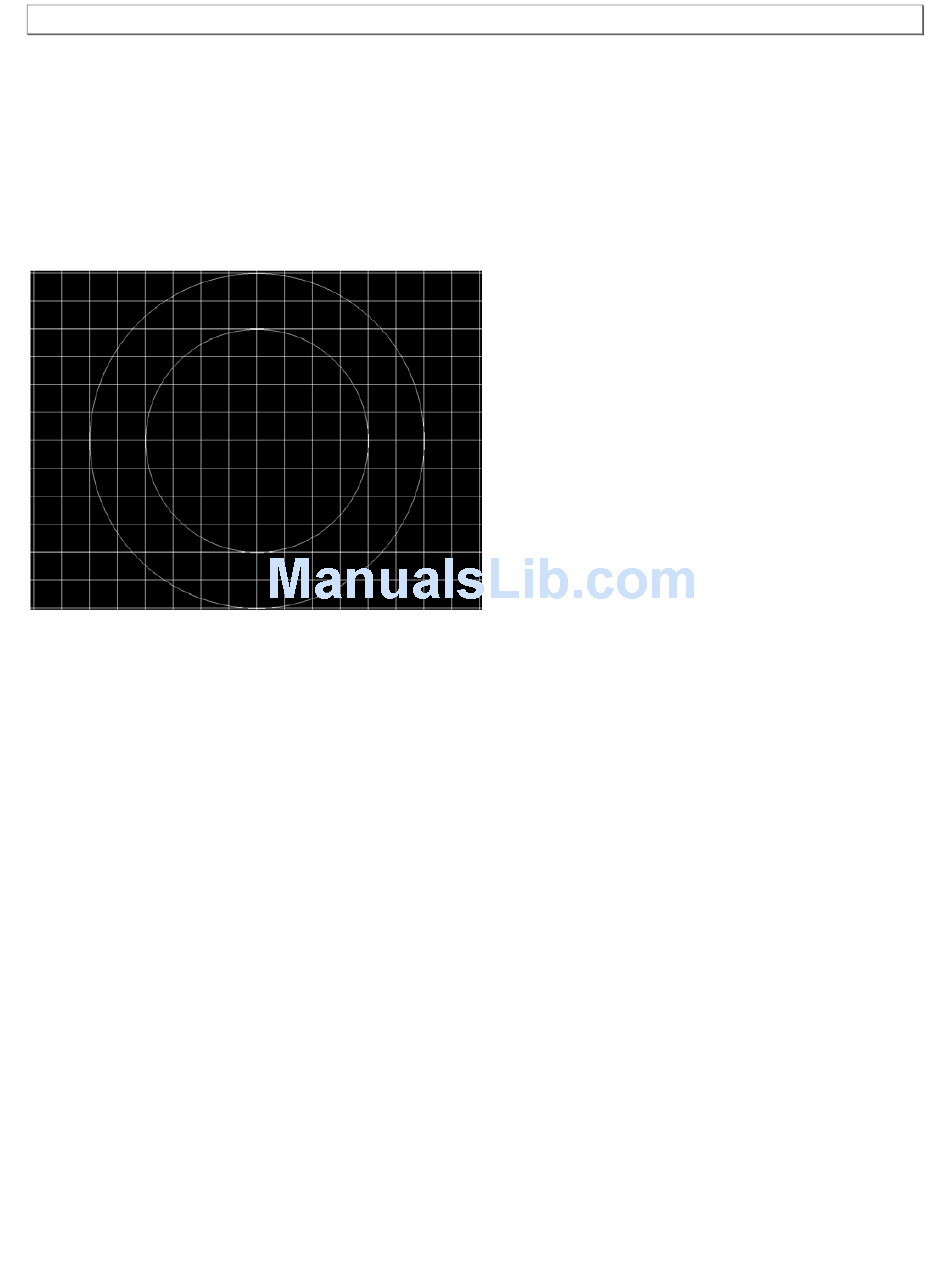

The primary version of the Hatch4x3 image is shown below.
11.88.2Purpose
This is a general purpose test image that can be used to check and adjust video scan linearity and geometry and
color convergence.
Page 281 July 14, 2014
