980 DP Video Generator - User Guide Rev. A4

11.59 Focus_@6, Focus_@7, Focus_@8, Focus_@

11.59.1Description

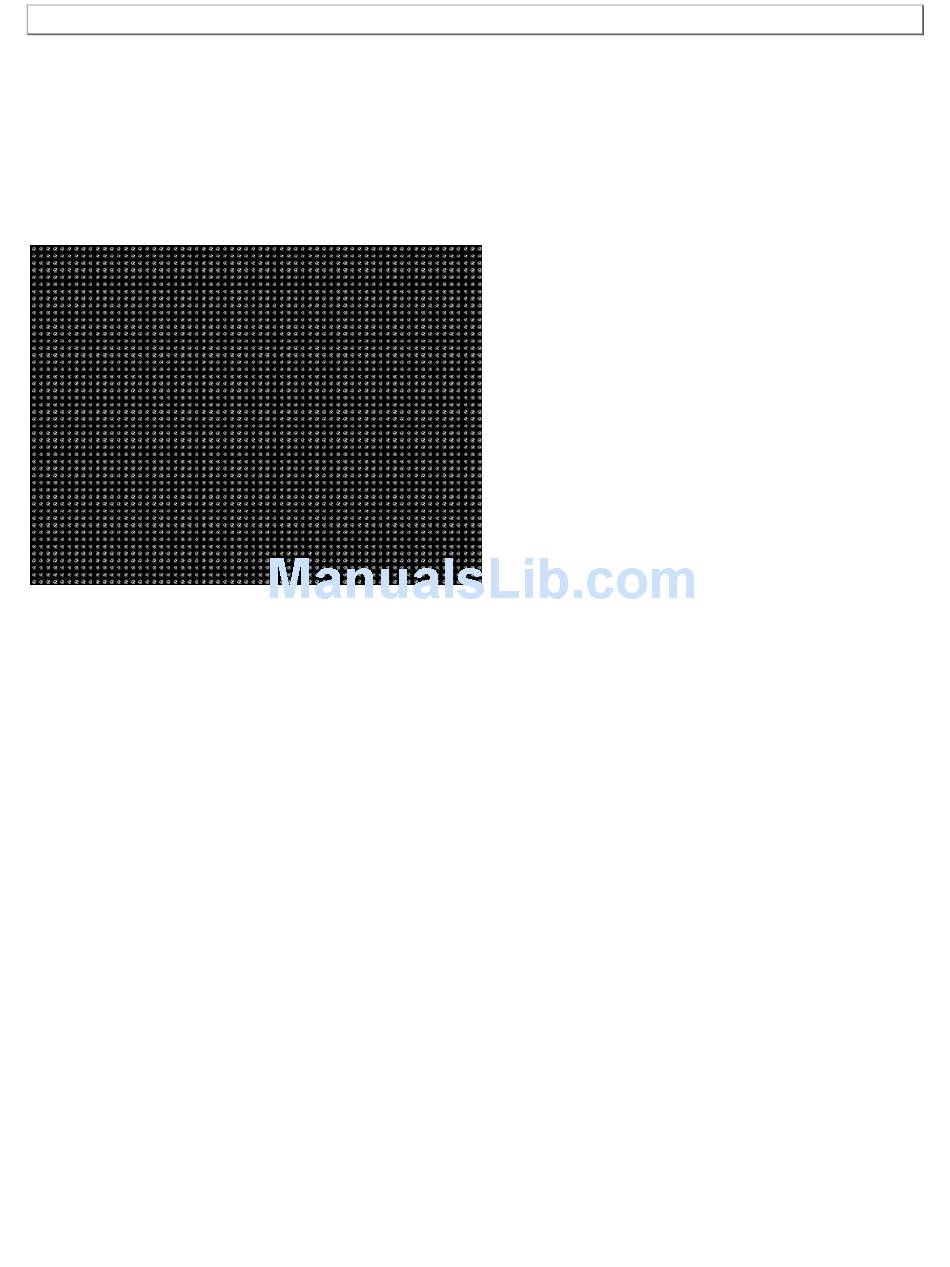

In the primary versions, the screen is filled with white "@" characters on a black background. The secondary
versions are drawn with black characters on a white background. The primary version of the Focus_@6 image is
shown below.
11.59.2Test
Focus adjustments.
11.59.3Purpose
An out-of-focus monitor displays fuzzy graphic images and poorly formed, hard-to-read text characters.
11.59.4Method
On monitors with a single (static) focus adjustment, adjust the control for the best average focus over the entire
screen. The focus at certain locations of the screen should be within specified limits.
Some monitors have a static and one or more dynamic focus controls. The sequence for adjusting them and the
areas of the screen that they affect depend on the monitor under test.
Page 251 July 14, 2014
