4. Take the necessary action to send the desired DP Link Training transactions and monitor the response.

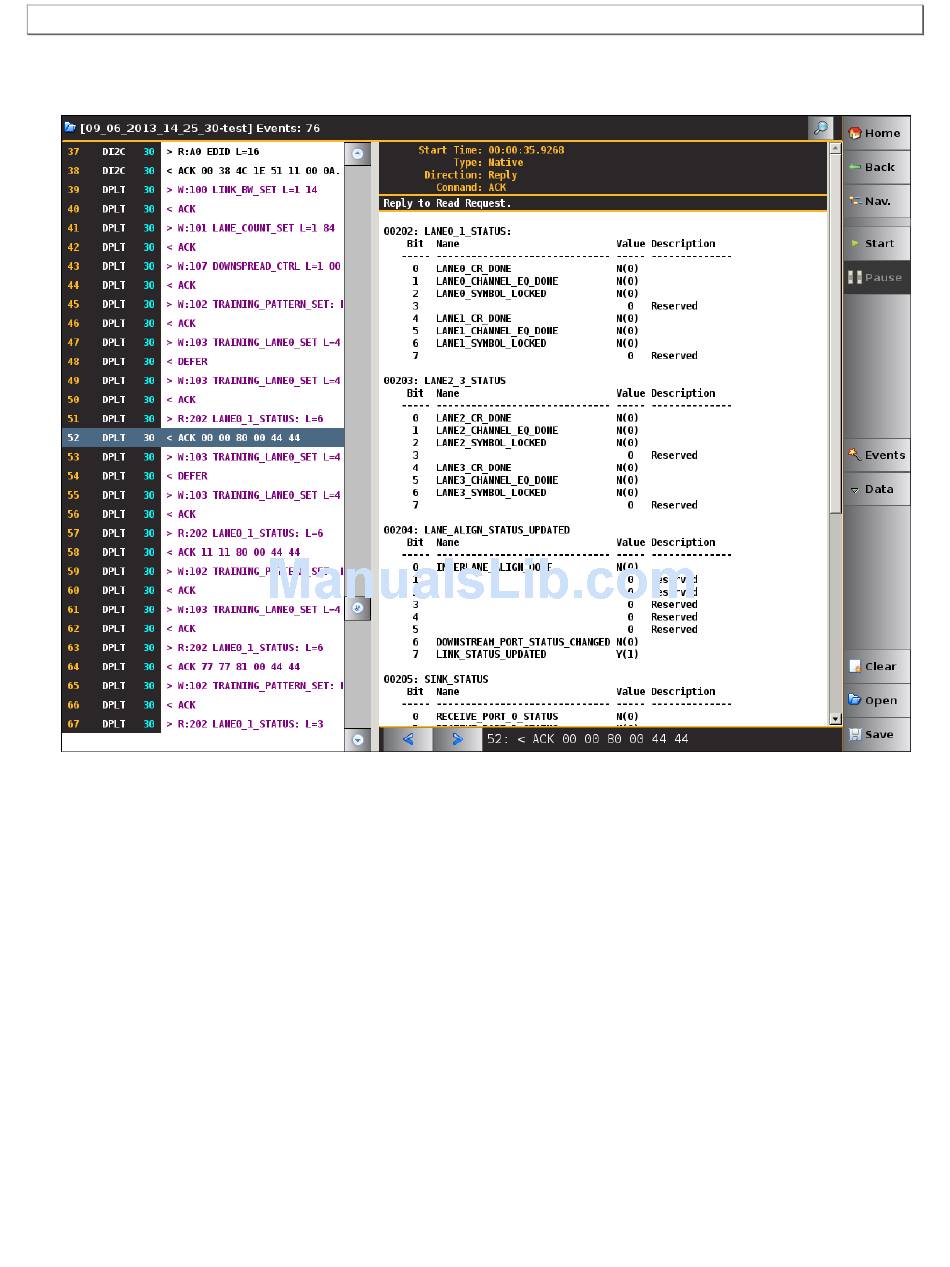

The Details panel on the right shows all the details about the message and bit timings.
5.3 Monitoring Auxiliary Channel transactions from the External 980 GUI
Manager with the ACA Remote Control panel
The ACA Remote Control panel enables you to view the ACA traces in real time from the external 980 GUI
Manager. The ACA Remote Control tool operates in sync with the embedded ACA. The procedure between the
two is essentially the same with a few differences in the screens.
1. Touch select the ACA Remote Control panel on the Card Control page of the Apps panel:
