980 DP Video Generator - User Guide Rev. A4

11.5 Acer3, Acer4, Acer5, Acer6

11.5.1 Description

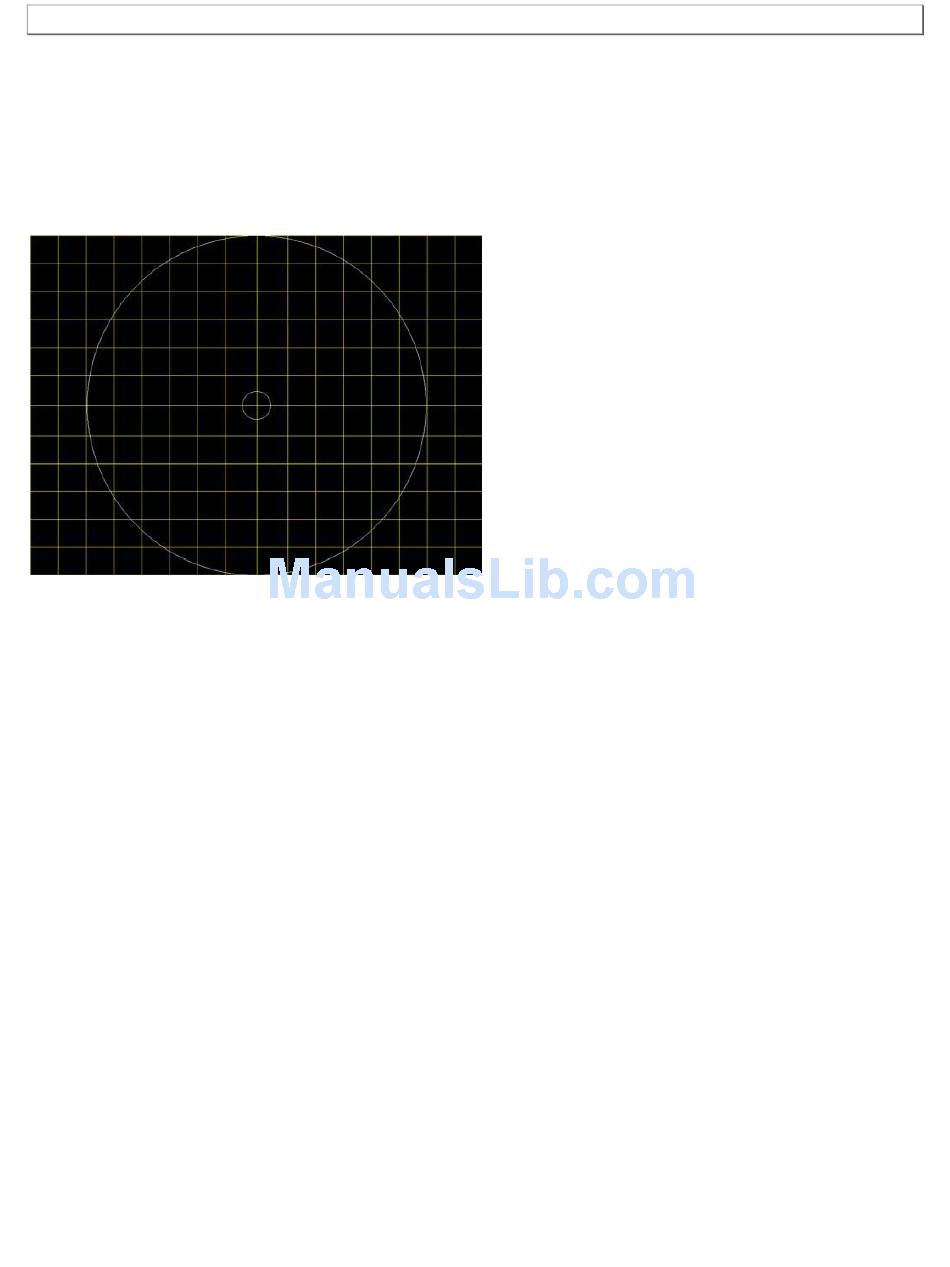

Special test images developed per customer specifications. Consists of large and small white circles centered on
either a yellow (Acer3), magenta (Acer4), cyan (Acer5), or white (Acer6) crosshatch on a black background. The
Acer3 image is shown below.
Page 194 July 14, 2014
